Mean Well HDR-100-24N 100.8 W DIN-rail power supply 24 V DC
Mean Well HDR-100-24N 100.8 W DIN-rail power supply 24 V DC – dimensions

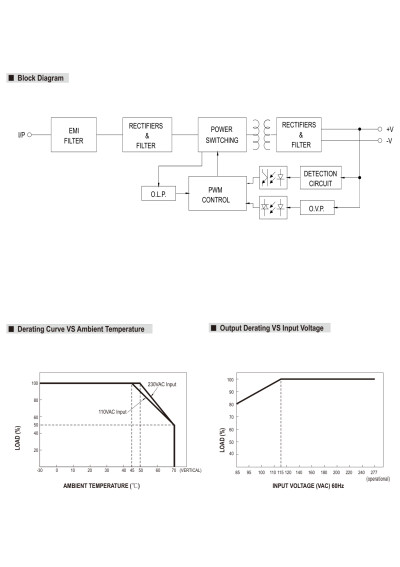

Mean Well HDR-100-24N 100.8 W DIN-rail power supply 24 V DC – block diagram

Mean Well HDR-100-24N 100.8W 24V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
130.07 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_HDR-100-24N

Mean Well HDR-100-24N is a 100.8 W, 24 V DC constant-voltage power supply for mounting on TS-35/7.5 or TS-35/15 DIN rail.

Volume discounts

Quantity Discounted price
10+ 121.94 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HDR-100-24N – full product specification

Mean Well HDR-100-24N is a HDR-100-series power supply rated at 100.8 W. The parameters below come from the exact official manufacturer datasheet.

Output and mounting

The supply operates in CV mode. Its output can be set across 21.6 V–29 V, and the enclosure mounts on TS-35/7.5 or TS-35/15 DIN rail.

Full technical specifications

Coolingfree-air convection
Dimensions70 × 90 × 54.5 mm
Document revisionHDR-100-SPEC 2026-04-03
Typical efficiency90 %
hold_up_time230 vac ms: 30; 115 vac ms: 12
Input frequency47–63 Hz
Input range85–264 VAC / 120–370 VDC
Inrush current35 A
MountingTS-35/7.5 or TS-35/15 DIN rail
Operating temperature-30–70 °C
Rated current4200 mA
Operating modeConstant Voltage (CV)
Maximum adjusted voltage29 V
Minimum adjusted voltage21.6 V
Adjustment range by LPS conditionLPS 24–25.5 V; non-LPS 21.6–29 V
Output voltage24 V
Over-voltage protection range30–36 V
Over-voltage protectionYes
Rated power100.8 W
Manufacturer warranty3 years
Weight0.27 kg
Withstand voltage4 kVAC

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HDR-100-24N

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
60,1-100
Output Voltage of CV power supply [V]
24
Length [mm]
70
Width [mm]
90
Height/thickness [mm]
54.5
Warranty [years]
3
Input voltage [V]
85-264

Specific References

EAN13
4711287421810
MPN
HDR-100-24N
