Mean Well APV-35-12 36W 12V IP42 LED Power Supply
Mean Well APV-35-12 is a 36 W, 12 V DC constant-voltage LED power supply rated at 3000 mA.
Mean Well APV-35-12 36W 12V IP42 LED Power Supply
Minimum order quantity: 1. Order in multiples of 1.
50.40 PLN
Shipment in 1-2 business days
tm_APV-35-12
Mean Well APV-35-12 is a 36 W, 12 V DC constant-voltage LED power supply rated at 3000 mA.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
APV-35-12 – full product specification
Mean Well APV-35-12 is a APV-35-series power supply rated at 36 W. The parameters below come from the exact official manufacturer datasheet.
Constant-voltage output
The model supplies loads at 12 V DC with a rated output current of 3000 mA.
Full technical specifications
| Fully isolated enclosure | Yes |
|---|---|
| Enclosure material | plastic |
| Cooling | free-air convection |
| Dimensions | 84 × 57 × 29.5 mm |
| Document revision | APV-35-SPEC 2025-12-12 |
| Typical efficiency | 83 % |
| hold_up_time | 230 vac ms: 20; 115 vac ms: 12 |
| Input frequency | 47–63 Hz |
| Input range | 90–264 VAC / 127–370 VDC |
| Inrush current | 45 A |
| Insulation resistance | 100 MΩ |
| IP rating | IP42 |
| leads | standard: UL1569; gauge: 18AWG; length mm: 150; tolerance mm: 10 |
| Leakage current | 0.25 mA |
| Operating temperature | -30–70 °C |
| Rated current | 3000 mA |
| Operating mode | Constant Voltage (CV) |
| Output voltage | 12 V |
| Over-voltage protection range | 13.8–16.2 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 36 W |
| Manufacturer warranty | 2 years |
| Weight | 0.18 kg |
| Withstand voltage | 3 kVAC |

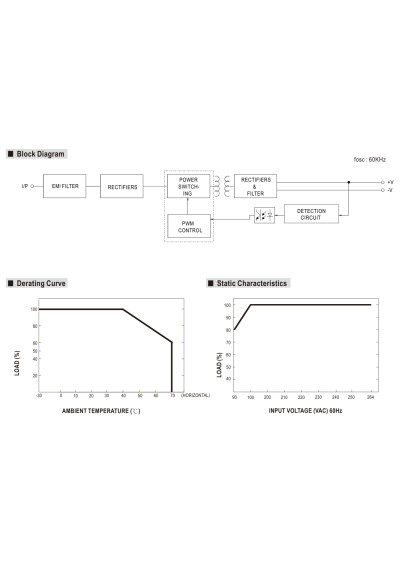

Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
Manufacturer information: Mean Well states that the APV-35 series is not intended for LED lighting luminaire applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
tm_APV-35-12
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 30,1-60
- Output Voltage of CV power supply [V]
- 12
- IP grade
- 42
- Length [mm]
- 84
- Width [mm]
- 57
- Height/thickness [mm]
- 29.5
- Warranty [years]
- 2
- Input voltage [V]
- 90-264
Specific References
- EAN13
- 4711287438474
- MPN
- APV-35-12
