Mean Well XLG-150-L-AB 150 W constant-power LED driver
Mean Well XLG-150-L-AB 150 W constant-power LED driver – block diagram

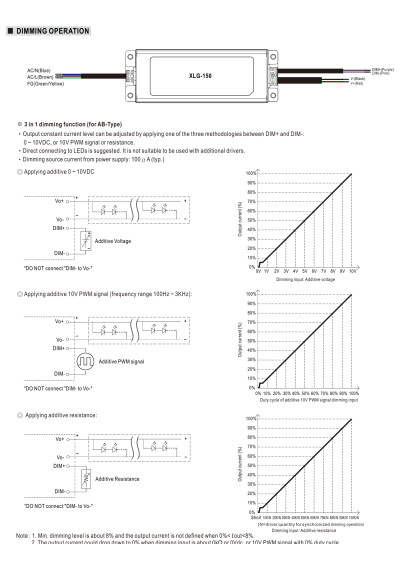

Mean Well XLG-150-L-AB 150 W constant-power LED driver – dimming diagram

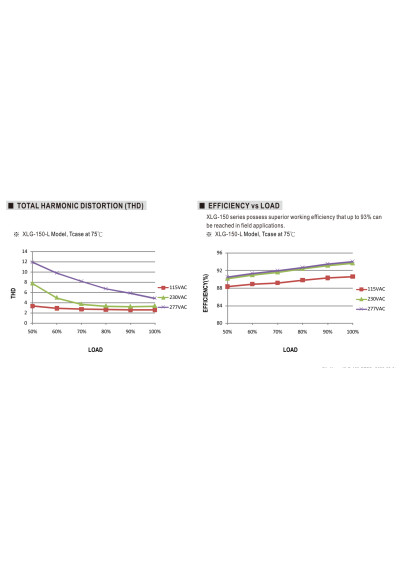

Mean Well XLG-150-L-AB 150 W constant-power LED driver – efficiency versus load characteristic

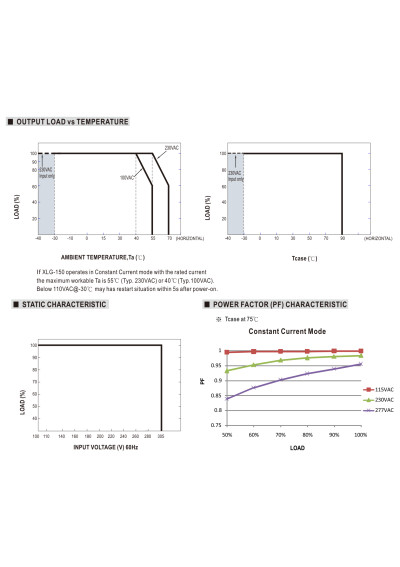

Mean Well XLG-150-L-AB 150 W constant-power LED driver – load versus temperature characteristic

Mean Well XLG-150-L-AB 150 W constant-power LED driver

Minimum order quantity: 1. Order in multiples of 1.
162.59 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_XLG-150-L-AB

Mean Well XLG-150-L-AB is a 150 W constant-power LED driver with a 6500 mA–12500 mA current-setting envelope.

Volume discounts

Quantity Discounted price
5+ 154.46 PLN
10+ 146.33 PLN
20+ 138.20 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

XLG-150-L-AB – full product specification

Mean Well XLG-150-L-AB is a XLG-150-series power supply rated at 150 W. The parameters below come from the exact official manufacturer datasheet.

Constant-power characteristic

Full power is available across a 6500 mA–12500 mA current envelope and 120 V–214 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct4 %
Dimensions180 × 63 × 35.5 mm
Document revisionXLG-150-SPEC 2026-02-04
Typical efficiency93 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current50 A
IP ratingIP67
Rated current700 mA
Maximum adjustable current12500 mA
Minimum adjustable current6500 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage214 V
CC-region minimum voltage120 V
Output voltage12 V
Over-voltage protection range230–265 V
Constant-power characteristicYes
Over-voltage protectionYes
Short-circuit protectionYes
Rated power150 W
Manufacturer warranty5 years
Weight0.8 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_XLG-150-L-AB

Data sheet

Power supply type
CV+CC
Rated power [W]
100,1-249
IP grade
67
Length [mm]
180
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305
Min. current of CC driver [mA]
6500
Max. current of CC driver [mA]
12500

Specific References

EAN13
4711287457130
MPN
XLG-150-L-AB
