Mean Well XLG-150-24-A 150 W 24 V DC adjustable CV+CC LED driver IP67
Mean Well XLG-150-24-A 150 W 24 V DC adjustable CV+CC LED driver IP67 – block diagram

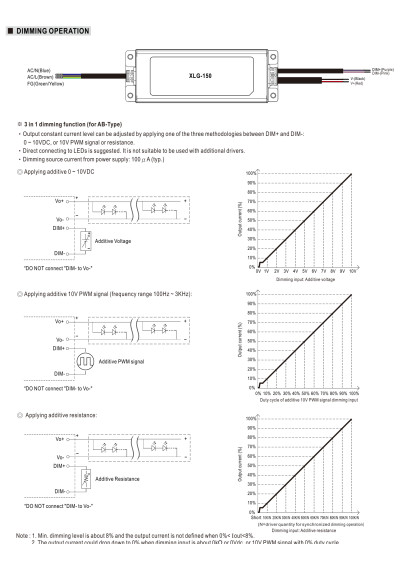

Mean Well XLG-150-24-A 150 W 24 V DC adjustable CV+CC LED driver IP67 – dimming diagram

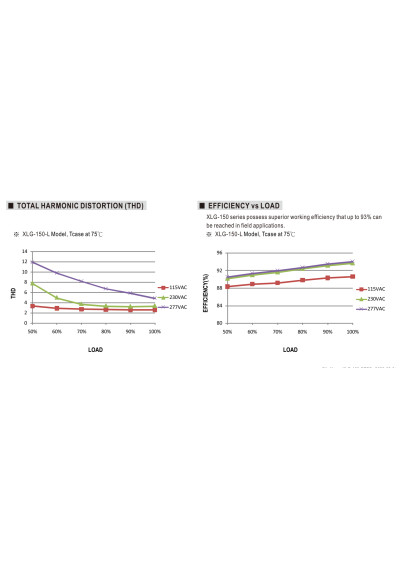

Mean Well XLG-150-24-A 150 W 24 V DC adjustable CV+CC LED driver IP67 – efficiency versus load characteristic

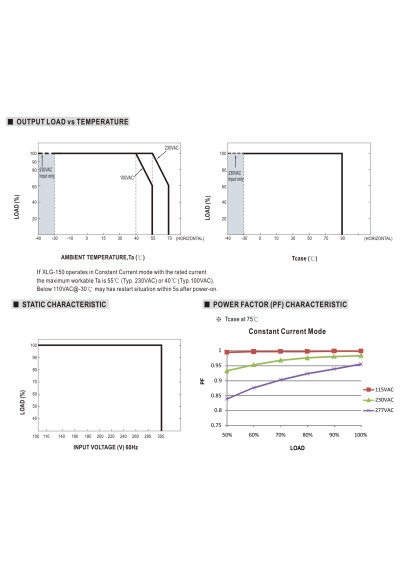

Mean Well XLG-150-24-A 150 W 24 V DC adjustable CV+CC LED driver IP67 – load versus temperature characteristic

Mean Well XLG-150-24-A 150 W 24 V DC adjustable CV+CC LED driver IP67

Minimum order quantity: 1. Order in multiples of 1.
138.20 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_XLG-150-24-A

Mean Well XLG-150-24-A is a 150 W, 24 V DC CV+CC LED driver with 3200 mA–6250 mA current adjustment by an internal potentiometer and an IP67 enclosure.

Volume discounts

Quantity Discounted price
10+ 130.07 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

XLG-150-24-A – full product specification

Mean Well XLG-150-24-A is a XLG-150-series power supply rated at 150 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation and adjustment

The A-type variant adjusts the current level across 3200 mA–6250 mA with an internal potentiometer. Its constant-current region is 16.8 V–24 V DC; the output is not one fixed-current value.

Full technical specifications

Adjustment methodinternal potentiometers
Enclosure materialmetal
Coolingfree-air convection
Dimensions180 × 63 × 35.5 mm
Document revisionXLG-150-SPEC 2026-02-04
Typical efficiency93 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current50 A
IP ratingIP67
Leakage current0.75 mA
Operating temperature-40–90 °C
Rated current6250 mA
Maximum adjustable current6250 mA
Minimum adjustable current3200 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage24 V
CC-region minimum voltage16.8 V
Output voltage24 V
Power factorPF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
Over-temperature protectionYes
Over-voltage protectionYes
Short-circuit protectionYes
Rated power150 W
THDTHD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
Manufacturer warranty5 years
Weight0.8 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_XLG-150-24-A

Data sheet

Power supply type
CV+CC
Rated power [W]
100,1-249
IP grade
67
Length [mm]
180
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305
Min. current of CC driver [mA]
3200
Max. current of CC driver [mA]
6250

Specific References

EAN13
4711287457178
MPN
XLG-150-24-A
