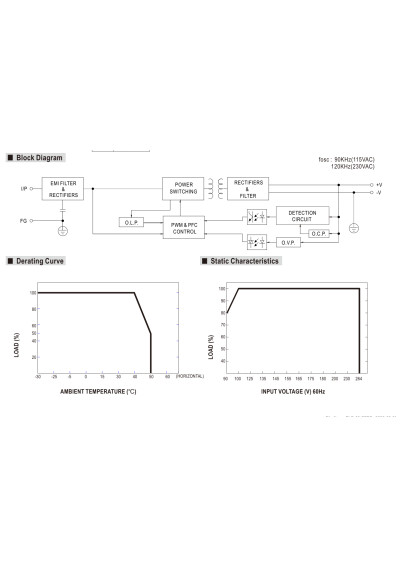

Mean Well PLC-60-27 62.1 W CC LED driver 2300 mA – block diagram

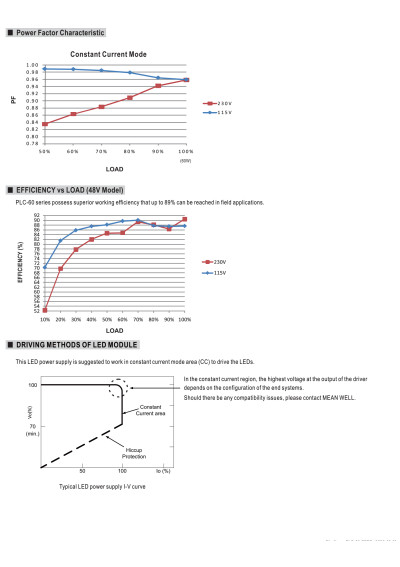

Mean Well PLC-60-27 62.1 W CC LED driver 2300 mA – power factor characteristic

Mean Well PLC-60-27 62.1W 2300mA 18.9–27V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
170.72 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_PLC-60-27

Mean Well PLC-60-27 is a 62.1 W constant-current LED driver rated at 2300 mA, with a 18.9 V–27 V output-voltage region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLC-60-27 – full product specification

Mean Well PLC-60-27 is a PLC-60-series power supply rated at 62.1 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2300 mA across a 18.9 V–27 V DC voltage region.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions181.5 × 62 × 35 mm
Document revisionPLC-60-SPEC 2026-02-09
Typical efficiency88 %
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current35 A
Operating temperature-30–50 °C
Rated current2300 mA
Operating modeConstant Current (CC)
CC-region maximum voltage27 V
CC-region minimum voltage18.9 V
Output voltage27 V
Over-voltage protection range31–35 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power62.1 W
Manufacturer warranty2 years
Weight0.41 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the PLC-60 series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_PLC-60-27

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
2300
CC operating window
18.9-27
Min. output voltage of led driver (CC)
18.9
Max. output voltage of led driver (CC)
27
Length [mm]
181.5
Width [mm]
62
Height/thickness [mm]
35
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287460390
MPN
PLC-60-27
