Mean Well PLN-45-20 46 W CC LED driver 2300 mA

Mean Well PLN-45-20 46 W CC LED driver 2300 mA – block diagram

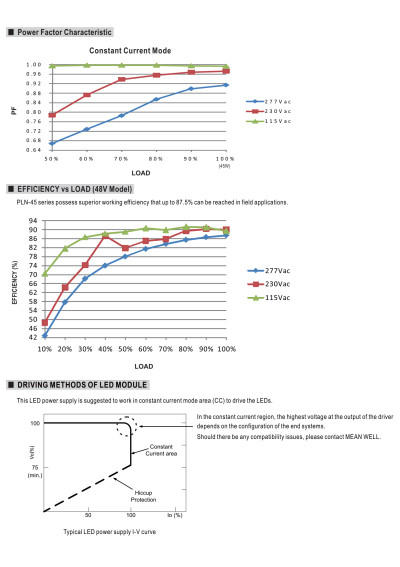

Mean Well PLN-45-20 46 W CC LED driver 2300 mA – power factor characteristic

Mean Well PLN-45-20 46W 2300mA 15–20V Constant Current (CC) LED driver

Name: Mean Well PLN-45-20 46W 2300mA 15–20V Constant Current (CC) LED driver
Brand: Mean Well
SKU: tm_PLN-45-20
Price: 121.94 PLN
Availability: InStock

Minimum order quantity: 1. Order in multiples of 1.

121.94 PLN

Shipment in 1-2 business days

Category: Constant Current (CC)

Reference: tm_PLN-45-20

Mean Well PLN-45-20 is a 46 W constant-current LED driver rated at 2300 mA, with a 15 V–20 V output-voltage region.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

PLN-45-20 – full product specification

Mean Well PLN-45-20 is a PLN-45-series power supply rated at 46 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2300 mA across a 15 V–20 V DC voltage region.

Full technical specifications

Fully isolated enclosure	Yes
Enclosure material	plastic
Cooling	free-air convection
Dimensions	181 × 61.5 × 35 mm
Document revision	PLN-45-SPEC 2026-02-09
Typical efficiency	86.5 %
Input frequency	47–63 Hz
Input range	90–295 VAC / 127–417 VDC
Inrush current	35 A
IP rating	IP64
Operating temperature	-30–50 °C
Rated current	2300 mA
Operating mode	Constant Current (CC)
CC-region maximum voltage	20 V
CC-region minimum voltage	15 V
Output voltage	20 V
Over-voltage protection range	22.8–25 V
Over-voltage protection	Yes
Short-circuit protection	Yes
Rated power	46 W
Manufacturer warranty	2 years
Weight	0.5 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the PLN-45 series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
