Mean Well IDPC-25-1050 25.2W 350mA 49–70V Constant Current (CC) LED driver
Mean Well IDPC-25-1050 is a 25.2 W constant-current LED driver rated at 350 mA, with a 49 V–70 V output-voltage region.
Mean Well IDPC-25-1050 25.2W 350mA 49–70V Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
50.40 PLN
Shipment in 1-2 business days
tm_IDPC-25-1050
Mean Well IDPC-25-1050 is a 25.2 W constant-current LED driver rated at 350 mA, with a 49 V–70 V output-voltage region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
IDPC-25-1050 – full product specification
Mean Well IDPC-25-1050 is a IDPC-25-series power supply rated at 25.2 W. The parameters below come from the exact official manufacturer datasheet.
Constant-current output
The model regulates 350 mA across a 49 V–70 V DC voltage region.
Full technical specifications
| current_ripple_pct | 5 % |
|---|---|
| Dimensions | 114.5 × 72.5 × 20 mm |
| Document revision | IDPC-25-SPEC 2024-01-22 |

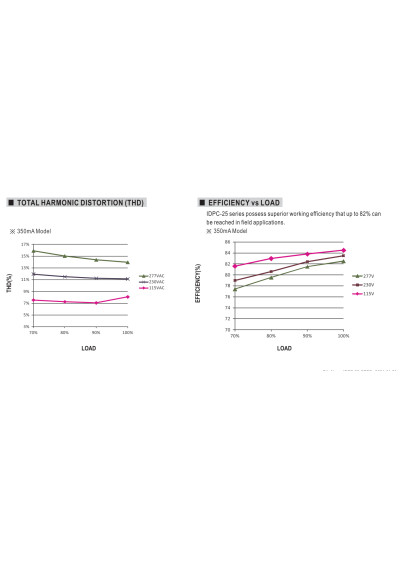

| Typical efficiency | 81 % |
| Input frequency | 47–63 Hz |
| Input range | 90–295 VAC / 127–417 VDC |
| Inrush current | 30 A |
| Rated current | 350 mA |
| Operating mode | Constant Current (CC) |
| CC-region maximum voltage | 70 V |
| CC-region minimum voltage | 49 V |
| Short-circuit protection | Yes |
| Rated power | 25.2 W |
| Manufacturer warranty | 3 years |
| Weight | 0.12 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_IDPC-25-1050
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 20,1-30
- Output Current of CC power supply [mA]
- 350
- CC operating window
- 49-70
- Min. output voltage of led driver (CC)
- 49
- Max. output voltage of led driver (CC)
- 70
- Length [mm]
- 114.5
- Width [mm]
- 72.5
- Height/thickness [mm]
- 20
- Warranty [years]
- 3
- Input voltage [V]
- 90-295
Specific References
- EAN13
- 4711287437835
- MPN
- IDPC-25-1050
