Mean Well PLC-60-36 61.2 W CC LED driver 1700 mA
Mean Well PLC-60-36 61.2 W CC LED driver 1700 mA – dimensions

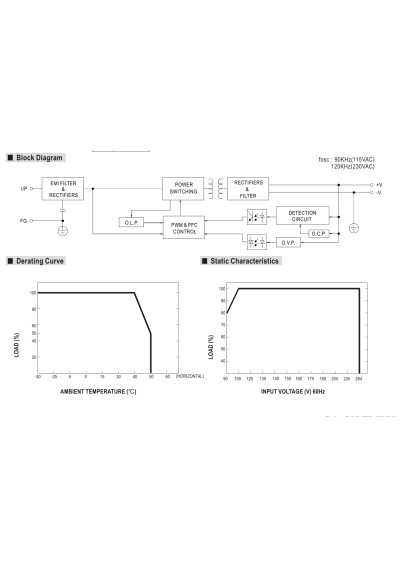

Mean Well PLC-60-36 61.2 W CC LED driver 1700 mA – block diagram

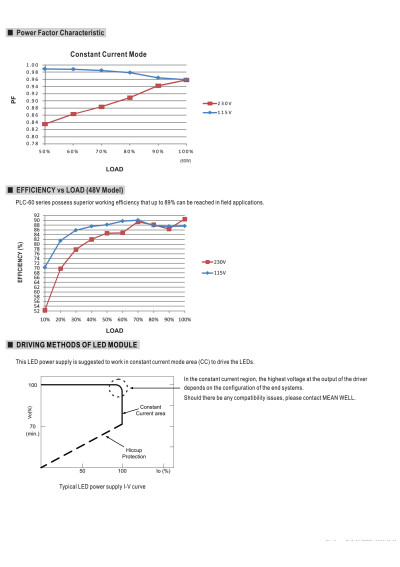

Mean Well PLC-60-36 61.2 W CC LED driver 1700 mA – power factor characteristic

Mean Well PLC-60-36 61.2W 1700mA 25.2–36V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
170.72 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_PLC-60-36

Mean Well PLC-60-36 is a 61.2 W constant-current LED driver rated at 1700 mA, with a 25.2 V–36 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 162.59 PLN
10+ 154.46 PLN
20+ 146.33 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLC-60-36 – full product specification

Mean Well PLC-60-36 is a PLC-60-series power supply rated at 61.2 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1700 mA across a 25.2 V–36 V DC voltage region.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions181.5 × 62 × 35 mm
Document revisionPLC-60-SPEC 2026-02-09
Typical efficiency89 %
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current35 A
Operating temperature-30–50 °C
Rated current1700 mA
Operating modeConstant Current (CC)
CC-region maximum voltage36 V
CC-region minimum voltage25.2 V
Output voltage36 V
Over-voltage protection range41–46 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power61.2 W
Manufacturer warranty2 years
Weight0.41 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the PLC-60 series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_PLC-60-36

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
1700
CC operating window
25.2-36
Min. output voltage of led driver (CC)
25.2
Max. output voltage of led driver (CC)
36
Length [mm]
181.5
Width [mm]
62
Height/thickness [mm]
35
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287460406
MPN
PLC-60-36
New
