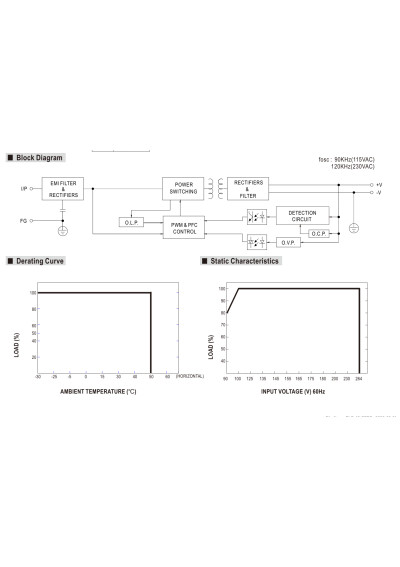

Mean Well PLC-45-48 45.6 W CC LED driver 950 mA – block diagram

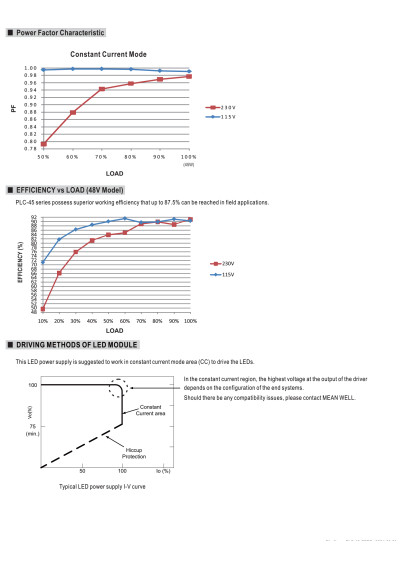

Mean Well PLC-45-48 45.6 W CC LED driver 950 mA – power factor characteristic

Mean Well PLC-45-48 45.6W 950mA 36–48V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
162.59 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_PLC-45-48

Mean Well PLC-45-48 is a 45.6 W constant-current LED driver rated at 950 mA, with a 36 V–48 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 154.46 PLN
10+ 146.33 PLN
20+ 138.20 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLC-45-48 – full product specification

Mean Well PLC-45-48 is a PLC-45-series power supply rated at 45.6 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 950 mA across a 36 V–48 V DC voltage region.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions181.5 × 62 × 35 mm
Document revisionPLC-45-SPEC 2024-09-25
Typical efficiency87.5 %
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current35 A
Operating temperature-30–50 °C
Rated current950 mA
Operating modeConstant Current (CC)
CC-region maximum voltage48 V
CC-region minimum voltage36 V
Output voltage48 V
Over-voltage protection range54–60 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power45.6 W
Manufacturer warranty2 years
Weight0.41 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the PLC-45 series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_PLC-45-48

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
950
CC operating window
36-48
Min. output voltage of led driver (CC)
36
Max. output voltage of led driver (CC)
48
Length [mm]
181.5
Width [mm]
62
Height/thickness [mm]
35
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287460345
MPN
PLC-45-48
New
