Mean Well PLC-45-27 45.9 W CC LED driver 1700 mA
Mean Well PLC-45-27 45.9 W CC LED driver 1700 mA – dimensions

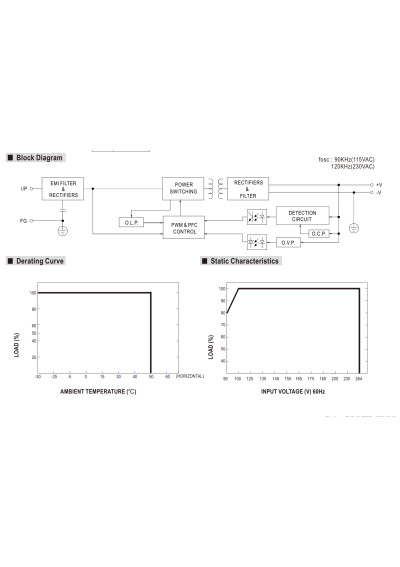

Mean Well PLC-45-27 45.9 W CC LED driver 1700 mA – block diagram

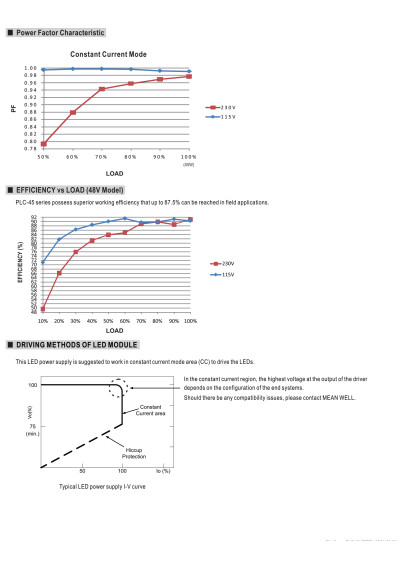

Mean Well PLC-45-27 45.9 W CC LED driver 1700 mA – power factor characteristic

Mean Well PLC-45-27 45.9W 1700mA 20.25–27V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
121.94 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_PLC-45-27

Mean Well PLC-45-27 is a 45.9 W constant-current LED driver rated at 1700 mA, with a 20.25 V–27 V output-voltage region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLC-45-27 – full product specification

Mean Well PLC-45-27 is a PLC-45-series power supply rated at 45.9 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1700 mA across a 20.25 V–27 V DC voltage region.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions181.5 × 62 × 35 mm
Document revisionPLC-45-SPEC 2024-09-25
Typical efficiency86.5 %
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current35 A
Operating temperature-30–50 °C
Rated current1700 mA
Operating modeConstant Current (CC)
CC-region maximum voltage27 V
CC-region minimum voltage20.25 V
Output voltage27 V
Over-voltage protection range31–35 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power45.9 W
Manufacturer warranty2 years
Weight0.41 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the PLC-45 series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_PLC-45-27

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
1700
CC operating window
20.25-27
Min. output voltage of led driver (CC)
20.25
Max. output voltage of led driver (CC)
27
Length [mm]
181.5
Width [mm]
62
Height/thickness [mm]
35
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287460321
MPN
PLC-45-27
