Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – dimensions Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – block diagram Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – dimming diagram Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – efficiency versus load characteristic
Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA

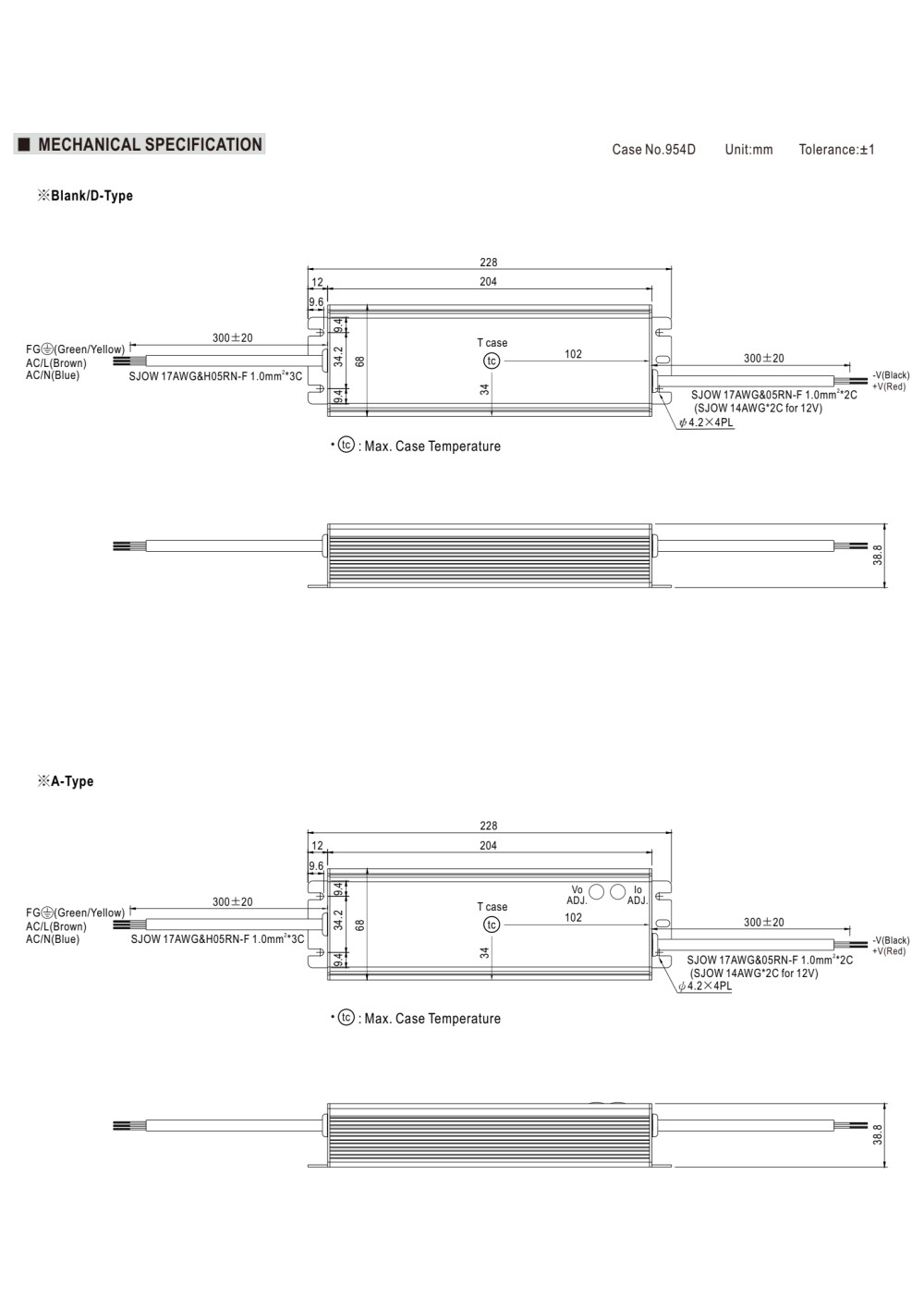

Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – dimensions

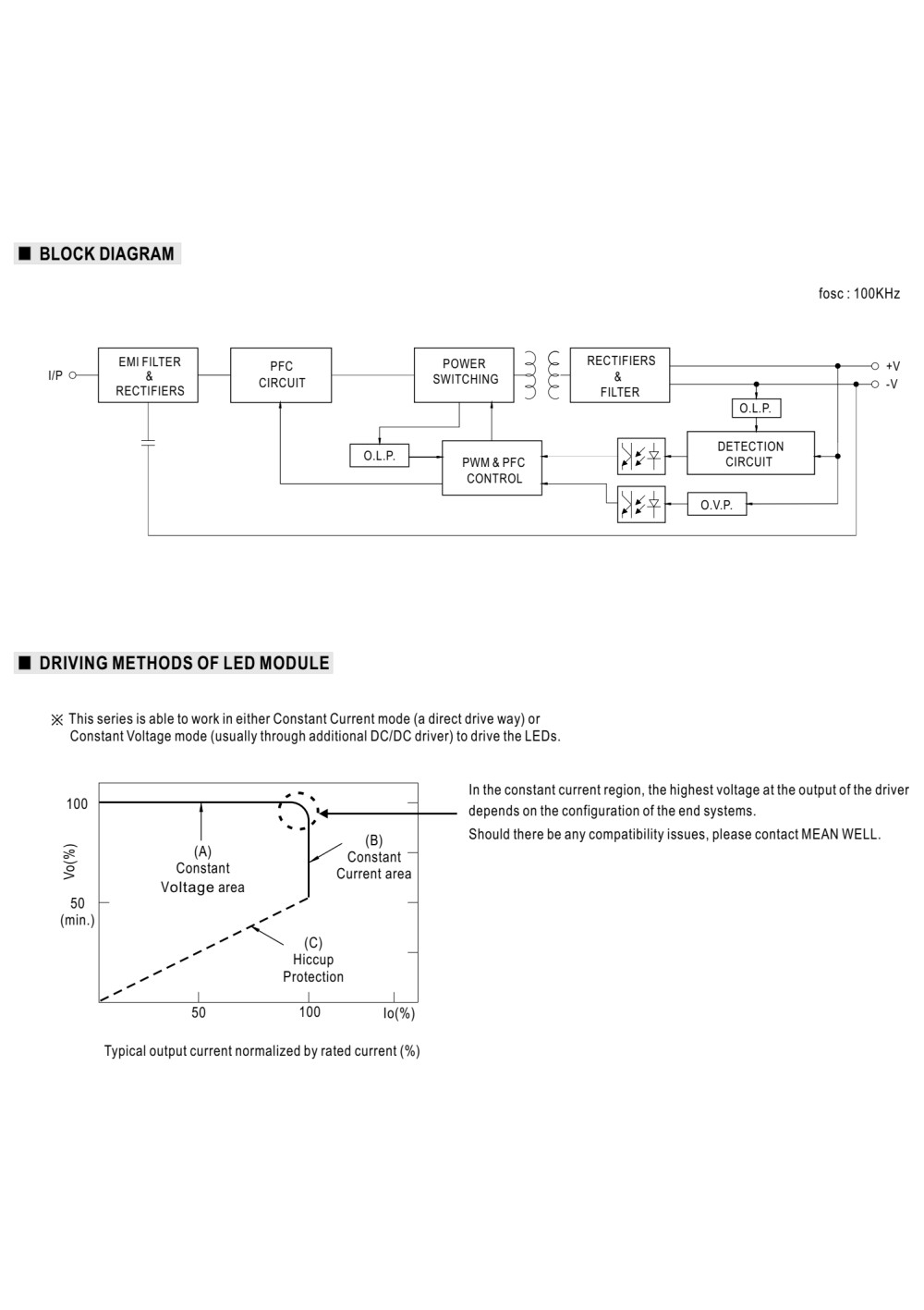

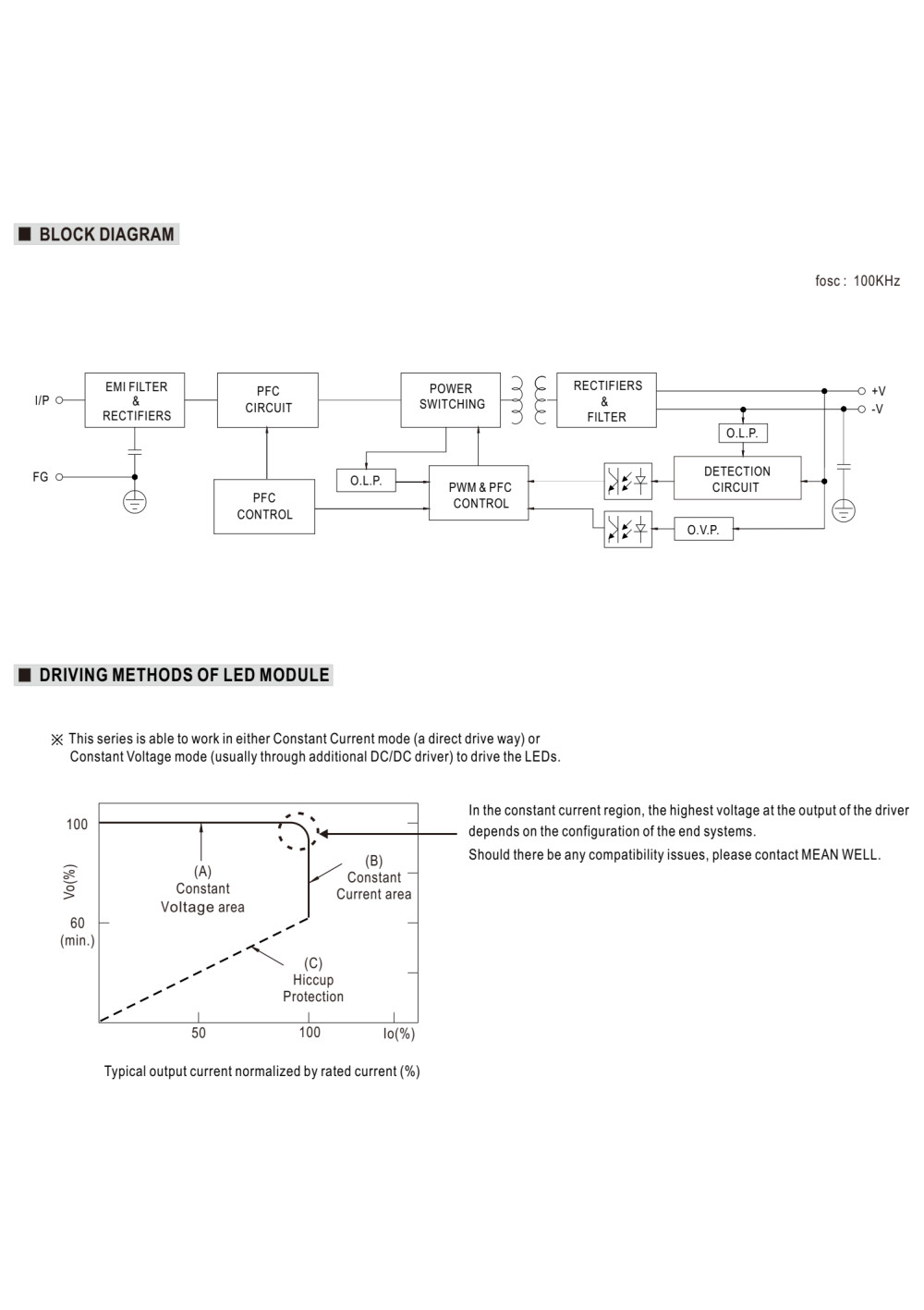

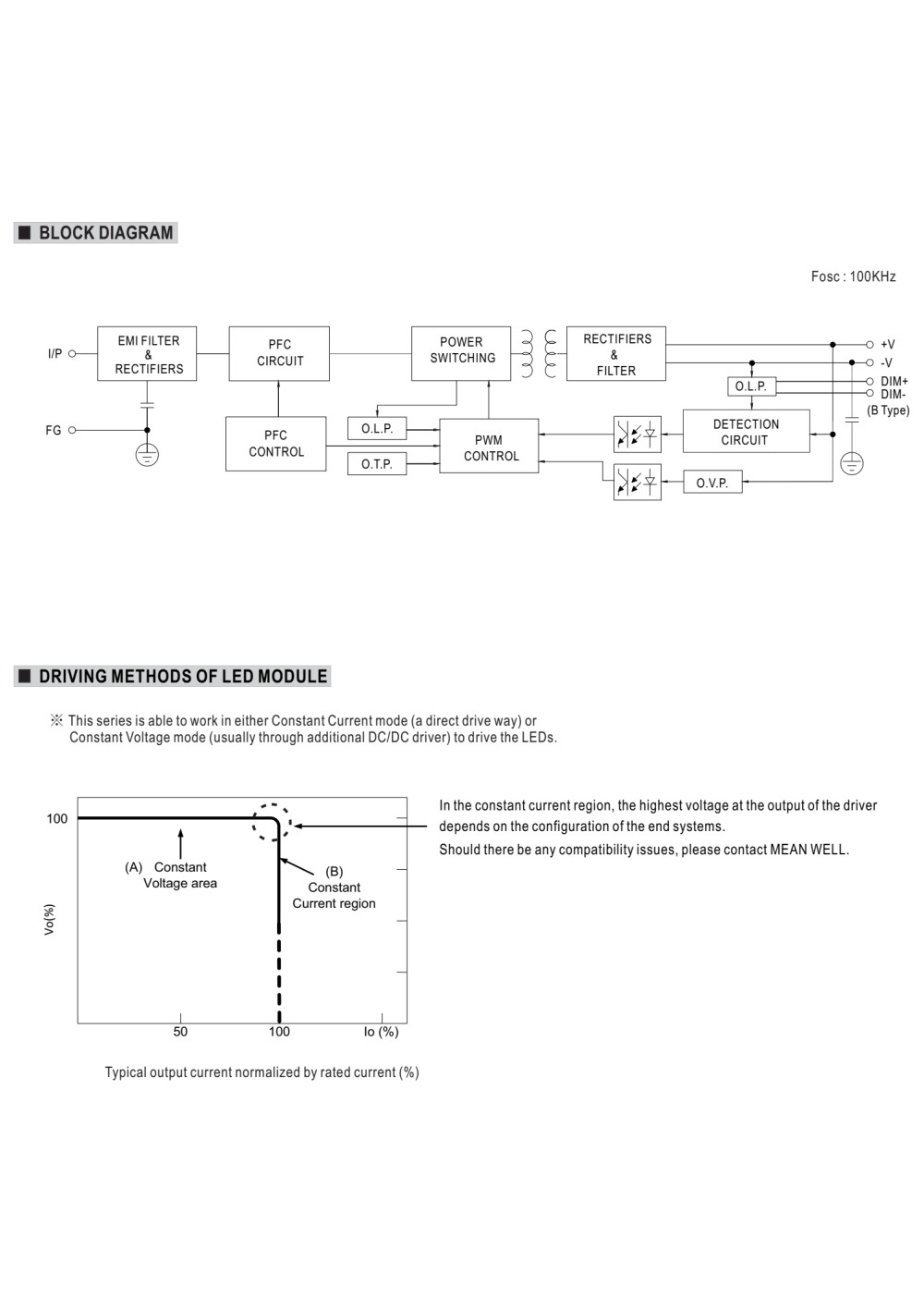

Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – block diagram

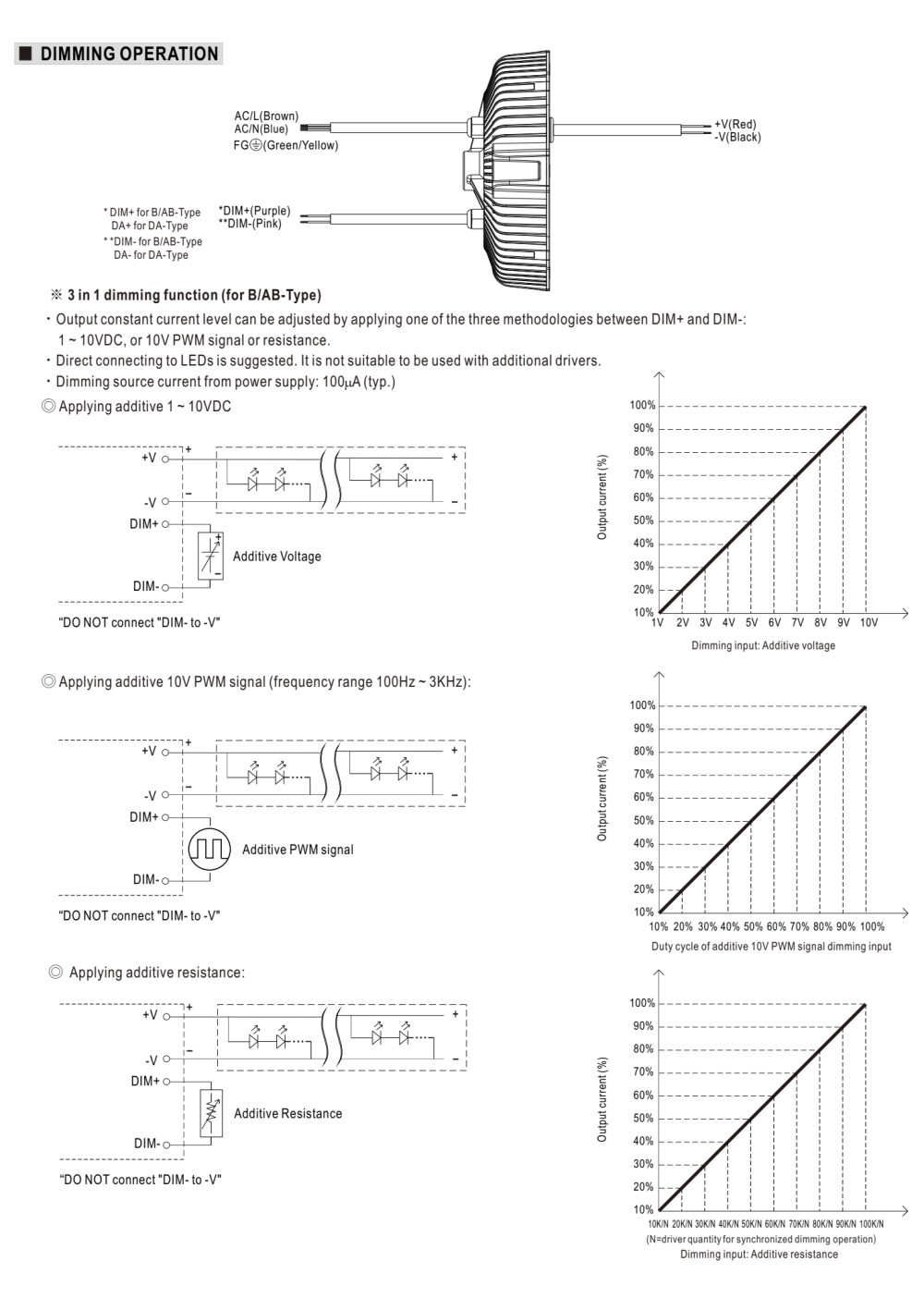

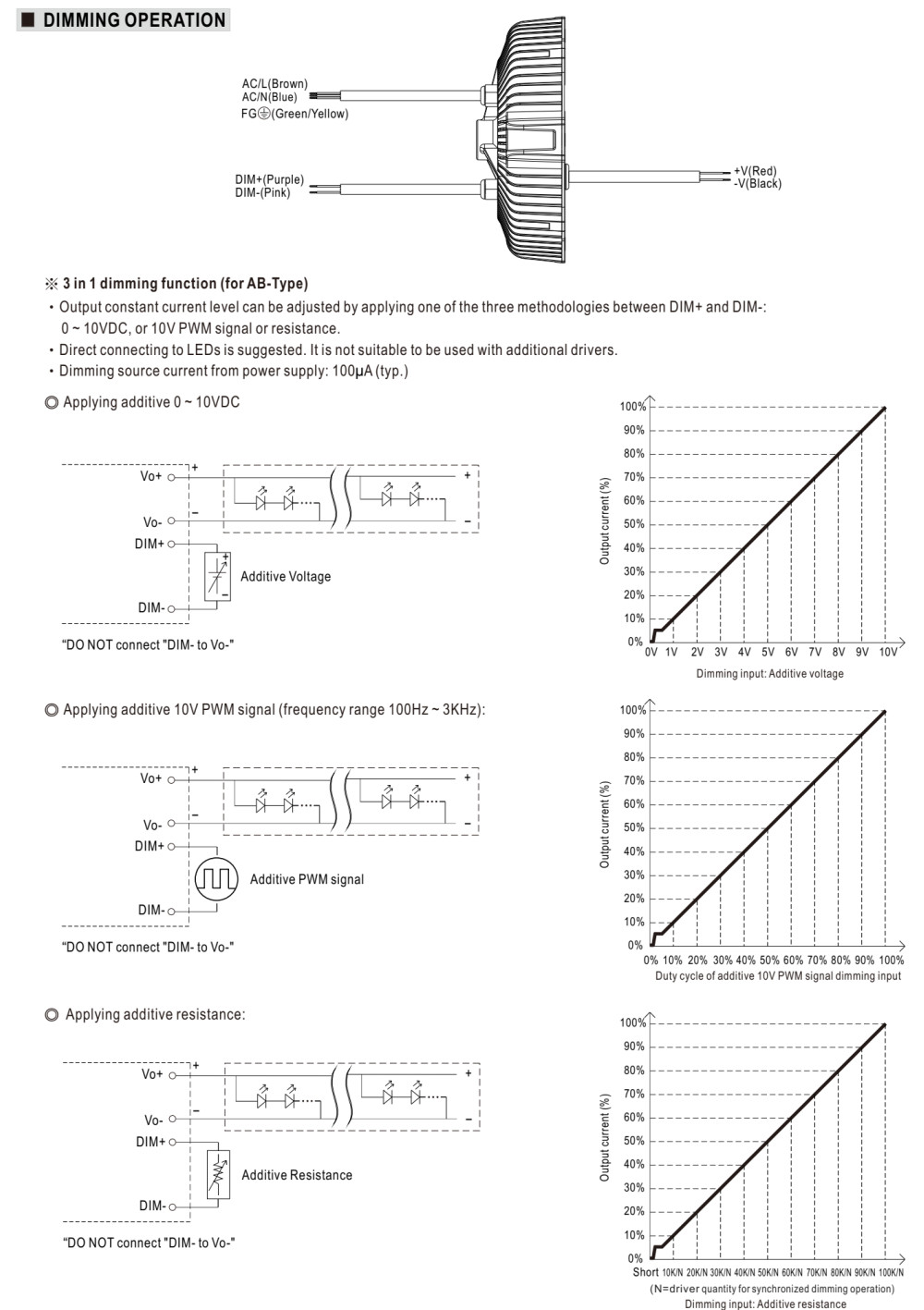

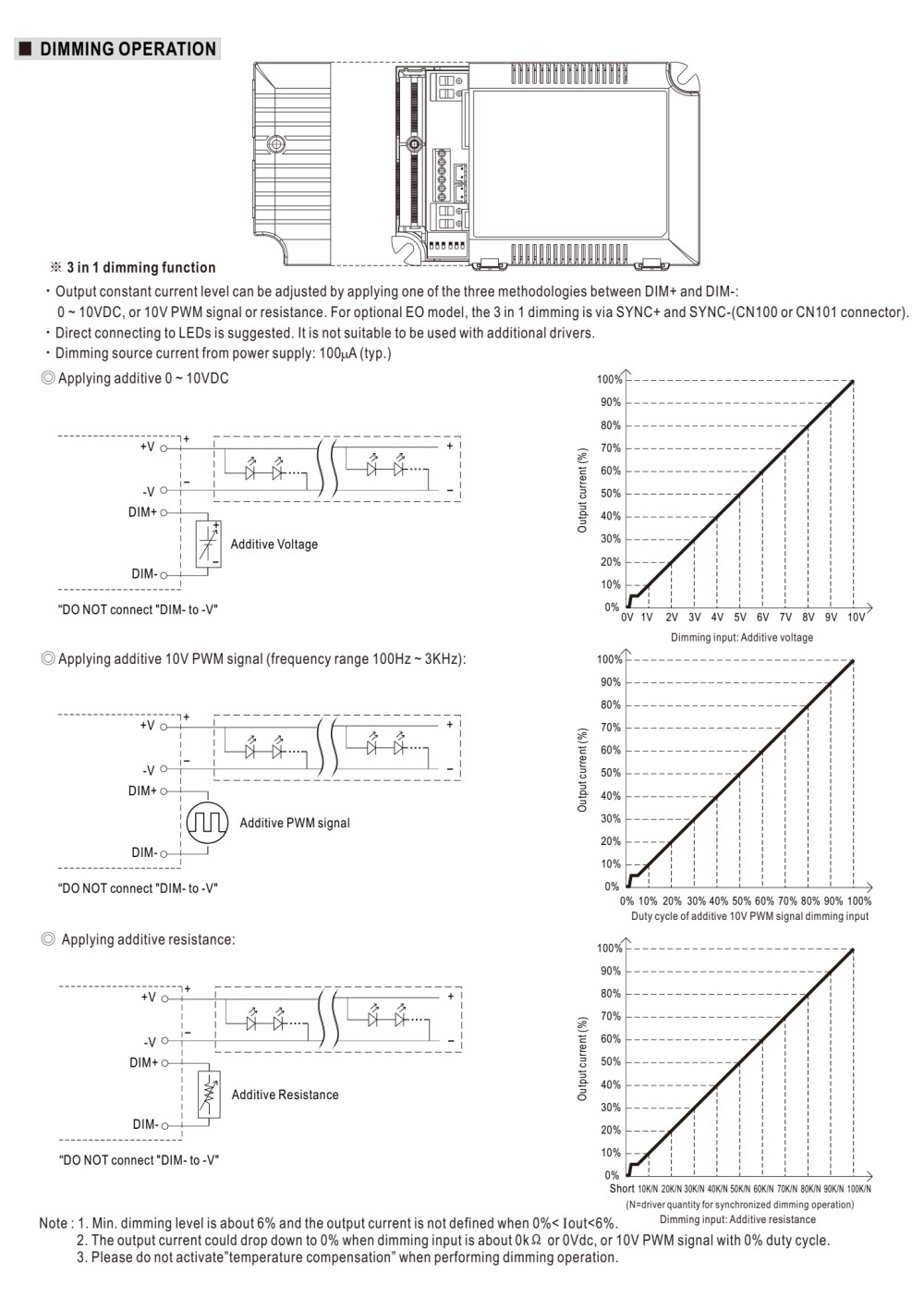

Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – dimming diagram
Mean Well ELG-200-C1750DA3Y 199.5 W CC LED driver 1750 mA – efficiency versus load characteristic

Mean Well ELG-200-C1750DA3Y 199.5W 1750mA 57–114V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
260.15 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_ELG-200-C1750DA-3Y

Mean Well ELG-200-C1750DA3Y is a 199.5 W constant-current LED driver rated at 1750 mA, with a 57 V–114 V output-voltage region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-200-C1750DA3Y – full product specification

Mean Well ELG-200-C1750DA3Y is a ELG-200-C-series power supply rated at 199.5 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1750 mA across a 57 V–114 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions244 × 71 × 37.5 mm
Document revisionELG-200-C-SPEC 2026-07-06
Typical efficiency92 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current65 A
IP ratingIP65
Rated current1750 mA
Operating modeConstant Current (CC)
CC-region maximum voltage114 V
CC-region minimum voltage57 V
Over-voltage protection range125–150 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power199.5 W
Manufacturer warranty5 years
Weight1.22 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-200-C1750DA-3Y

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
1750
CC operating window
57-114
Min. output voltage of led driver (CC)
57
Max. output voltage of led driver (CC)
114
IP grade
65
Length [mm]
244
Width [mm]
71
Height/thickness [mm]
37.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287445984
MPN
ELG-200-C1750DA3Y
