Mean Well NPF-200V-36 199.8 W CV+CC LED driver
Mean Well NPF-200V-36 is a 199.8 W CV+CC LED driver with a 18 V–36 V constant-current region.
Mean Well NPF-200V-36 199.8 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
268.28 PLN
Shipment in 8-10 working days
tm_NPF-200V-36
Mean Well NPF-200V-36 is a 199.8 W CV+CC LED driver with a 18 V–36 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
NPF-200V-36 – full product specification
Mean Well NPF-200V-36 is a NPF-200-series power supply rated at 199.8 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 18 V–36 V DC.
Full technical specifications
| 3-in-1 dimming | Yes |
|---|---|
| Dimensions | 195 × 68 × 39.5 mm |
| Document revision | NPF-200-SPEC 2026-02-09 |

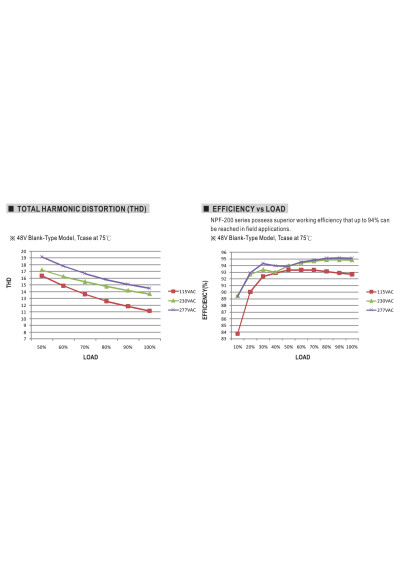

| Typical efficiency | 94 % |
| Input frequency | 47–63 Hz |
| Input range | 100–305 VAC / 142–431 VDC |
| Inrush current | 65 A |
| IP rating | IP67 |
| Rated current | 5550 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 36 V |
| CC-region minimum voltage | 18 V |
| Output voltage | 36 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 199.8 W |
| Manufacturer warranty | 5 years |
| Weight | 1.03 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_NPF-200V-36
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 100,1-249
- Output Current of CC power supply [mA]
- 5550
- CC operating window
- 18-36
- Min. output voltage of led driver (CC)
- 18
- Max. output voltage of led driver (CC)
- 36
- IP grade
- 67
- Length [mm]
- 195
- Width [mm]
- 68
- Height/thickness [mm]
- 39.5
- Warranty [years]
- 5
- Input voltage [V]
- 100-305
Specific References
- EAN13
- 4711287438160
- MPN
- NPF-200V-36
