Mean Well PLN-60-20 60 W CC LED driver 3000 mA Mean Well PLN-60-20 60 W CC LED driver 3000 mA – block diagram Mean Well PLN-60-20 60 W CC LED driver 3000 mA – power factor characteristic
Mean Well PLN-60-20 60 W CC LED driver 3000 mA
Mean Well PLN-60-20 60 W CC LED driver 3000 mA – block diagram

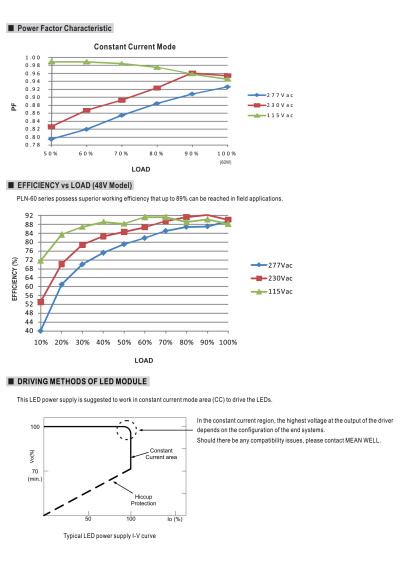

Mean Well PLN-60-20 60 W CC LED driver 3000 mA – power factor characteristic

Mean Well PLN-60-20 60W 3000mA 14–20V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
170.72 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_PLN-60-20

Mean Well PLN-60-20 is a 60 W constant-current LED driver rated at 3000 mA, with a 14 V–20 V output-voltage region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLN-60-20 – full product specification

Mean Well PLN-60-20 is a PLN-60-series power supply rated at 60 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 3000 mA across a 14 V–20 V DC voltage region.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions181 × 61.5 × 35 mm
Document revisionPLN-60-SPEC 2026-02-09
Typical efficiency87.5 %
Input frequency47–63 Hz
Input range90–295 VAC / 127–417 VDC
Inrush current35 A
IP ratingIP64
Operating temperature-30–50 °C
Rated current3000 mA
Operating modeConstant Current (CC)
CC-region maximum voltage20 V
CC-region minimum voltage14 V
Output voltage20 V
Over-voltage protection range23–28 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power60 W
Manufacturer warranty2 years
Weight0.5 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PLN-60-20

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
3000
CC operating window
14-20
Min. output voltage of led driver (CC)
14
Max. output voltage of led driver (CC)
20
IP grade
64
Length [mm]
181
Width [mm]
61.5
Height/thickness [mm]
35
Warranty [years]
2
Input voltage [V]
90-295

Specific References

EAN13
4711287460666
MPN
PLN-60-20
