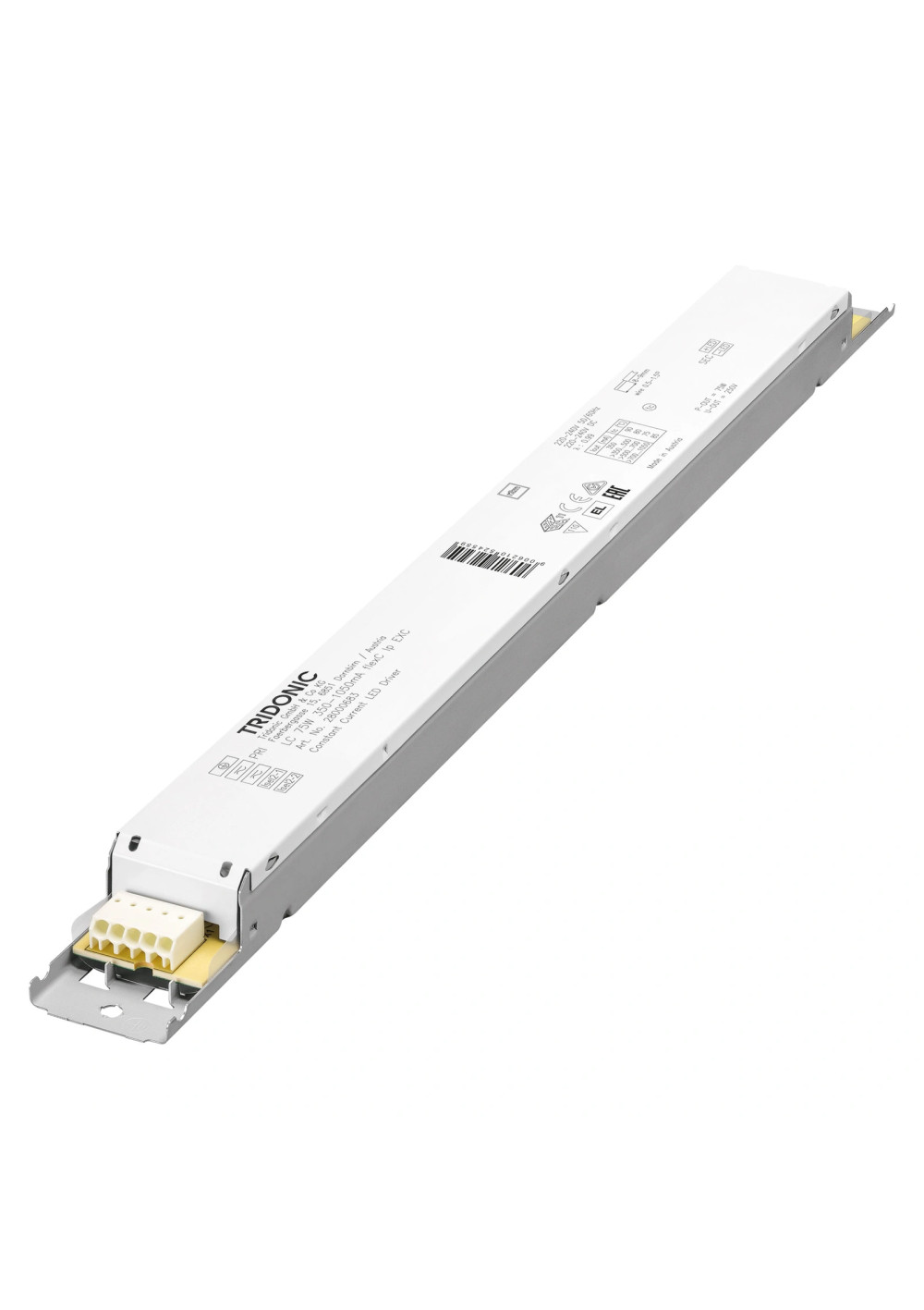

LED power supply Tridonic LCI 105/250-1050/300 flexC NF lp EXC3
LED power supply Tridonic LCI 105W 250-1050mA 300V flexC NF lp EXC3 is a constant current LED driver rated up to 105 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: NFC.
LED power supply Tridonic LCI 105/250-1050/300 flexC NF lp EXC3
281.00 PLN
Shipment in 8-10 working days
zas_tridonic_87500920
LED power supply Tridonic LCI 105W 250-1050mA 300V flexC NF lp EXC3 is a constant current LED driver rated up to 105 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LCI 105W 250-1050mA 300V flexC NF lp EXC3 is a constant current LED driver in the Driver LCI 105W 250-1050mA 300V flexC NF lp EXC3 (INDUSTRY) family. Official article number 87500920 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500920 |
|---|---|
| Manufacturer family | Driver LCI 105W 250-1050mA 300V flexC NF lp EXC3 (INDUSTRY) |
| Manufacturer product group | Linear drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 495 mA |
| Typ. current (220 V, 0 Hz, full load, XX % dimming level) | 520 mA |
| Leakage current | <0.5 mA |
| Typ. input current in no-load operation | 50 mA |
| Power Consumption | 114 W |
| Typ. input power in no-load operation | 0.7 W |
| Typ. efficiency at 230 V | 94 % |
| λ over full operating range (max.) | 0.95 |
| THD at 230V, full load | <10 % |
| Starting time | <0.5 s; <0.5 s |
| Switchover time (AC/DC) | <0.5 s |
| Turn off time | <0.03 s |
| Output current tolerance, min./full load | ±3 % |
| Max. non-repetitive output peak current | 1500.0 mA |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±2 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 350 V |
| Mains surge capability (between L - N) | 4 kV |
| Mains surge capability (between L/N - PE) | 4 kV |
| Surge voltage at output side (against PE) | 4 kV |
| Type of protection | IP20 |
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Lifetime | up to 100000 h |
| Guarantee | 8 years |
| Output mode | CC |
| Maximum output power [W] | 105 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 8 |
| THD | <10 % |
| Typ. efficiency at 230 V | 94 % |
| λ over full operating range (max.) | 0.95 |
| Dimensions L×W×H | 360 × 30 × 21 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.304 kg |
| Interfaces and configuration | NFC |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as cold warehouses or factories |
| Manufacturer note: Product description | Output current adjustable between 250 – 1,050 mA |
| Manufacturer note: Product description | Max. output power 105 W |
| Manufacturer note: Product description | Suitable for mains voltage peaks (burst/surge) up to 4 kV |
| Manufacturer note: Product description | Expanded temperature range of -40 ... +80 °C |
| Manufacturer note: Product description | Nominal lifetime up to 120,000 h (at ta 60 °C) |
| Manufacturer note: Product description | 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | White slim metal casing |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Interfaces | Terminal blocks: 45° push terminals |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (I-SELECT 2 resistor or NFC) |
| Manufacturer note: Functions | Intelligent Temperature Guard (overtemperature protection) |
| Manufacturer note: Functions | Intelligent Voltage Guard (overvoltage and undervoltage monitoring) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to EN 50172 |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE (NFC) or I-SELECT 2 |
| Manufacturer note: Benefits | Application-oriented operating window for maximum compatibility |
| Manufacturer note: Benefits | Extended vibration damping |
| Manufacturer note: Benefits | Increased safety through robust design and advanced testing under extreme test conditions |
| Manufacturer note: Benefits | High reliability through the selection of exclusive components |
| Manufacturer note: Typical applications | For linear/area lighting in industry applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max | i-SELECT resistor value |
|---|---|---|---|---|---|---|---|---|
| 1 | 250.0 mA | 40 V; 300 V | 350 mA | 75 W | 80 W | -40–80 °C | 95.0 °C | — |
| 2 | 300.0 mA | 40 V; 300 V | 420 mA | 90 W | 95.5 W | -40–80 °C | 95.0 °C | 16.67 kΩ |
| 3 | 350.0 mA | 40 V; 300 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 95.0 °C | 14.29 kΩ |
| 4 | 400.0 mA | 40 V; 262.5 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 95.0 °C | 12.5 kΩ |
| 5 | 450.0 mA | 40 V; 233.3 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 95.0 °C | 11.11 kΩ |
| 6 | 500.0 mA | 40 V; 210 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 95.0 °C | 10 kΩ |
| 7 | 550.0 mA | 40 V; 190.9 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 95.0 °C | 9.09 kΩ |
| 8 | 600.0 mA | 40 V; 175 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 8.33 kΩ |
| 9 | 650.0 mA | 40 V; 161.5 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 7.69 kΩ |
| 10 | 700.0 mA | 40 V; 150 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 7.14 kΩ |
| 11 | 750.0 mA | 40 V; 140 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 6.67 kΩ |
| 12 | 800.0 mA | 40 V; 131.3 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 6.25 kΩ |
| 13 | 850.0 mA | 40 V; 123.5 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 5.88 kΩ |
| 14 | 900.0 mA | 40 V; 116.7 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 5.56 kΩ |
| 15 | 950.0 mA | 40 V; 110.5 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 5.26 kΩ |
| 16 | 1000.0 mA | 40 V; 105 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | 5 kΩ |
| 17 | 1050.0 mA | 40 V; 100 V | 495 mA | 105 W | 112.5 W | -40–80 °C | 100.0 °C | Short circuit (0 kΩ) |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87500920
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 105
- Output Current of CC power supply [mA]
- 250-1050
- CC operating window
- 40-300
- Min. output voltage of led driver (CC)
- 40
- Max. output voltage of led driver (CC)
- 300
- Dimensions (L x W x H) [mm]
- 360 × 30 × 21 mm
- IP grade
- 20
- Length [mm]
- 360
- Width [mm]
- 30
- Height/thickness [mm]
- 21
- Warranty [years]
- 8
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 250
- Max. current of CC driver [mA]
- 1050
- Power factor
- 0.95
