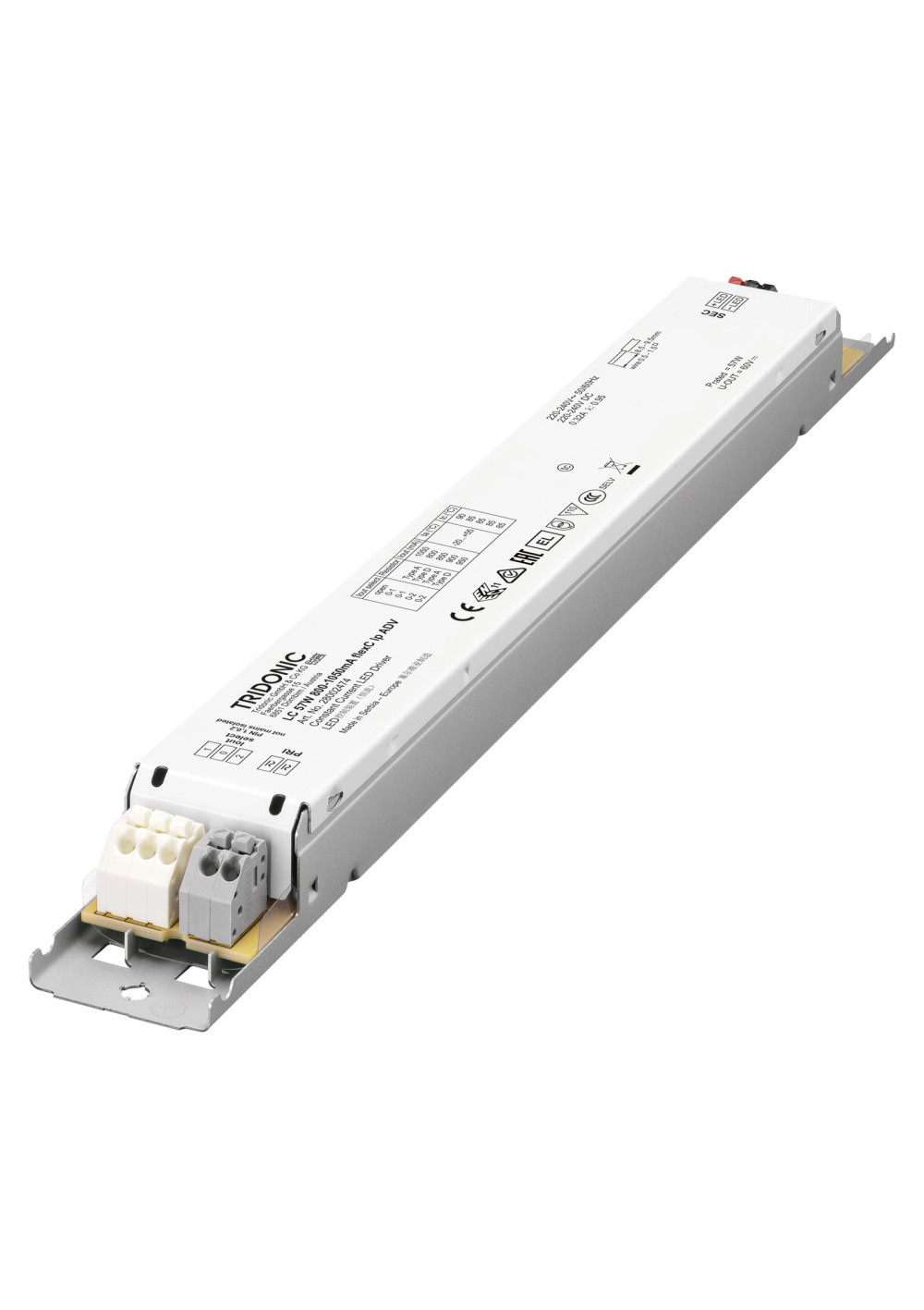

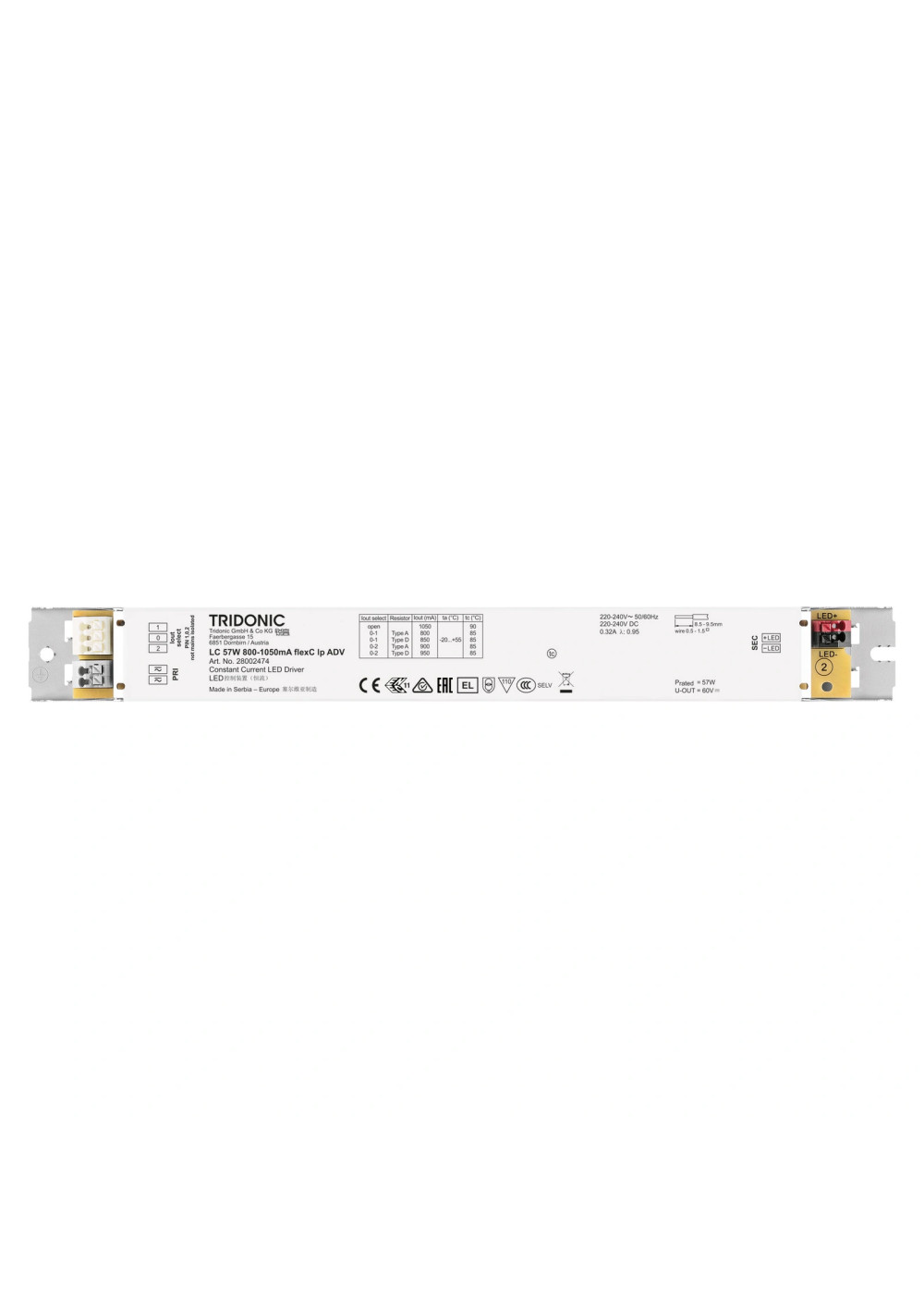

LED power supply Tridonic LC 57W 800-1050mA flexC lp ADV
LED power supply Tridonic LC 57W 800-1050mA flexC lp ADV is a constant current LED driver rated up to 57 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 57W 800-1050mA flexC lp ADV
148.75 PLN
Shipment in 8-10 working days
zas_tridonic_28002474
LED power supply Tridonic LC 57W 800-1050mA flexC lp ADV is a constant current LED driver rated up to 57 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 57W 800-1050mA flexC lp ADV is a constant current LED driver in the Driver LC 57W 800-1050mA flexC lp ADV family. Official article number 28002474 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28002474 |
|---|---|
| Manufacturer family | Driver LC 57W 800-1050mA flexC lp ADV |
| Manufacturer product group | Linear drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 1 h |
| Leakage current | <0.4 mA |
| Input current | 283 mA; 320 mA |
| Power Consumption | 64.5 W; 71 W |
| Min. output power | 16.0 W |
| Typ. efficiency at 230 V | 86 % |
| λ over full operating range (max.) | 0.95 |
| THD at 230V, full load | <8 % |
| Starting time | <0.5 s; <0.5 s |
| Switchover time (AC/DC) | <0.5 s |
| Turn off time | ≤0.5 s |
| Hold on time | 0 s |
| Output current tolerance, min./full load | ±7.5 % |
| Max. output peak current | ≤ output current +20 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 60 V |
| Ambient temperature ta | 45 °C |
| Storage temperature ts | -40–80 °C |
| Type of protection | IP20 |

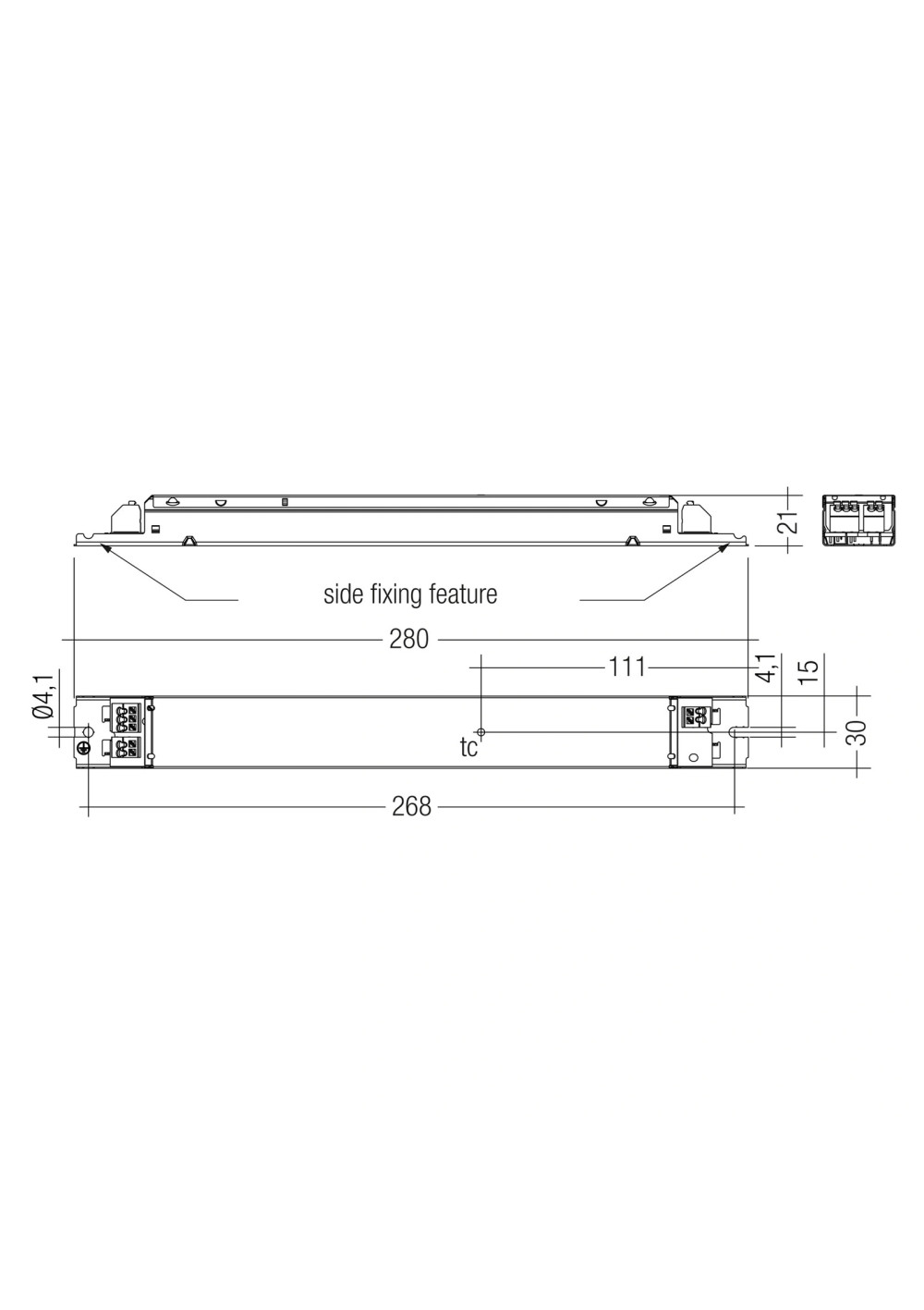

| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Hole spacing | 268 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 57 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Storage temperature | -40–80 °C |
| THD | <8 % |
| Typ. efficiency at 230 V | 86 % |
| λ over full operating range (max.) | 0.95 |
| Dimensions L×W×H | 280 × 30 × 21 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.191 kg |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | LED Constant current LED driver for luminaire installation |
| Manufacturer note: Product description | New version DC operating with EL marking |
| Manufacturer note: Product description | For luminaires of protection class I and protection class II |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Output current adjustable between 800 – 1,050 mA |
| Manufacturer note: Product description | Max. output power 57 W |
| Manufacturer note: Product description | Up to 86 % efficiency |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Low profile metal casing with white cover |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | Terminal blocks: 45° push terminals |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
| Manufacturer note: Functions | Overtemperature protection |
| Manufacturer note: Functions | Burst protection voltage 1 kV |
| Manufacturer note: Functions | Surge protection voltage 1 kV (L to N) |
| Manufacturer note: Functions | Surge protection voltage 2 kV (L/N to earth) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to IEC 50172 |
| Manufacturer note: Typical applications | For linear/area lighting in office applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max | Iout select | Resistor / I-out select |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 800.0 mA | 20 V; 54 V | 225 mA | 43.2 W | 50.5 W | -20–55 °C | 85.0 °C | 0-1 | ADV Type A |
| 2 | 850.0 mA | 20 V; 54 V | 234 mA | 45.9 W | 52.5 W | -20–55 °C | 85.0 °C | 0-1 | ADV Type D |
| 3 | 900.0 mA | 20 V; 54 V | 250 mA | 48.6 W | 56 W | -20–55 °C | 85.0 °C | 0-2 | ADV Type A |
| 4 | 950.0 mA | 20 V; 54 V | 260 mA | 51.3 W | 58.5 W | -20–55 °C | 85.0 °C | 0-2 | ADV Type D |
| 5 | 1050.0 mA | 20 V; 54 V | 285 mA | 57 W | 64.5 W | -20–55 °C | 90.0 °C | – | – |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28002474
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 57
- Output Current of CC power supply [mA]
- 800-1050
- CC operating window
- 20-54
- Min. output voltage of led driver (CC)
- 20
- Max. output voltage of led driver (CC)
- 54
- Dimensions (L x W x H) [mm]
- 280x30x21
- IP grade
- 20
- Length [mm]
- 280
- Width [mm]
- 30
- Height/thickness [mm]
- 21
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 800
- Max. current of CC driver [mA]
- 1050
- Power factor
- 0.95
