LED power supply Tridonic LC 55/350-1050/54 flexC NF h16 EXC4
LED power supply Tridonic LC 55W 350-1050mA 54V flexC NF h16 EXC4 is a constant current LED driver rated up to 55 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: NFC.
LED power supply Tridonic LC 55/350-1050/54 flexC NF h16 EXC4
200.00 PLN
Shipment in 8-10 working days
zas_tridonic_28004411
LED power supply Tridonic LC 55W 350-1050mA 54V flexC NF h16 EXC4 is a constant current LED driver rated up to 55 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 55W 350-1050mA 54V flexC NF h16 EXC4 is a constant current LED driver in the Driver LC 55W 350–1050mA flexC NF h16 EXC4 family. Official article number 28004411 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28004411 |
|---|---|
| Manufacturer family | Driver LC 55W 350–1050mA flexC NF h16 EXC4 |
| Manufacturer product group | Linear drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 280 mA |
| Typ. current (220 V, 0 Hz, full load, XX % dimming level) | 286 mA |
| Leakage current | <0.7 mA |
| Typ. input current in no-load operation | 36 mA |
| Power Consumption | 63.5 W |
| Typ. input power in no-load operation | 1.2 W |
| Output power range | 5.25–55 W |
| Typ. efficiency at 230 V | 87 % |
| λ over full operating range (max.) | 0.99 |
| λ over full operating range (min.) | 0.48C |
| THD at 230V, full load | <10 % |
| Starting time | <0.5 s; <0.5 s |
| Switchover time (AC/DC) | <0.5 s |
| Turn off time | <0.03 s |
| Output current tolerance, min./full load | ±5 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +5 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±1.5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 57 V |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| Surge voltage at output side (against PE) | <0.5 kV |
| Type of protection | IP20 |
| Length | 360 mm |
| Width | 30 mm |
| Height | 16 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 55 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| THD | <10 % |
| Typ. efficiency at 230 V | 87 % |
| λ over full operating range (max.) | 0.99 |
| Dimensions L×W×H | 360 × 30 × 16 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.232 kg |
| Interfaces and configuration | NFC |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current LED driver for luminaire installation |
| Manufacturer note: Product description | For class I luminaires |
| Manufacturer note: Product description | Adjustable output current between 350 and 1,050 mA with NFC |
| Manufacturer note: Product description | Max. output power 55 W |
| Manufacturer note: Product description | Up to 87 % efficiency |
| Manufacturer note: Product description | Nominal lifetime of 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Low profile metal casing with white cover |
| Manufacturer note: Housing properties | Only 16 mm housing height |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Interfaces | Terminal blocks: 0° push terminals |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC) |
| Manufacturer note: Functions | Constant light output function (eCLO) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load) |
| Manufacturer note: Functions | Intelligent Voltage Guard (overvoltage and undervoltage monitoring) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to EN 50172 |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE |
| Manufacturer note: Benefits | Support NFC multiple programming (full carton box) |
| Manufacturer note: Benefits | Application-oriented operating window for maximum compatibility |
| Manufacturer note: Benefits | Best energy savings due to high efficiency |
| Manufacturer note: Benefits | Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Typical applications | For linear/area lighting in office applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|
| 1 | 350.0 mA | 15 V; 54 V | 108 mA | 18.9 W | 21.9 W | -20–60 °C | 76.0 °C |
| 2 | 450.0 mA | 15 V; 54 V | 131 mA | 24.3 W | 27.8 W | -20–60 °C | 76.0 °C |
| 3 | 500.0 mA | 15 V; 54 V | 143 mA | 27 W | 30.7 W | -20–60 °C | 76.0 °C |
| 4 | 550.0 mA | 15 V; 54 V | 155 mA | 29.7 W | 33.8 W | -20–60 °C | 80.0 °C |
| 5 | 650.0 mA | 15 V; 54 V | 180 mA | 35.1 W | 39.8 W | -20–60 °C | 80.0 °C |
| 6 | 750.0 mA | 15 V; 54 V | 205 mA | 40.5 W | 45.9 W | -20–60 °C | 86.0 °C |
| 7 | 850.0 mA | 15 V; 54 V | 232 mA | 45.9 W | 52.3 W | -20–60 °C | 86.0 °C |
| 8 | 950.0 mA | 15 V; 54 V | 259 mA | 51.3 W | 58.6 W | -20–60 °C | 93.0 °C |
| 9 | 1019.0 mA | 15 V; 54 V | 279 mA | 55 W | 63.2 W | -20–60 °C | 93.0 °C |
| 10 | 1050.0 mA | 15 V; 52.4 V | 279 mA | 55 W | 63.3 W | -20–60 °C | 93.0 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28004411
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 55
- Output Current of CC power supply [mA]
- 350-1050
- CC operating window
- 15-54
- Min. output voltage of led driver (CC)
- 15
- Max. output voltage of led driver (CC)
- 54

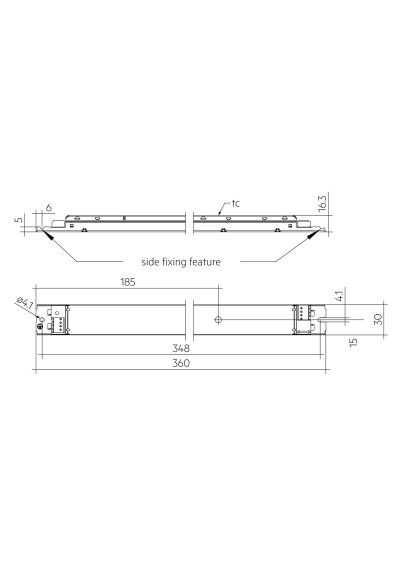

- Dimensions (L x W x H) [mm]
- 360 × 30 × 16 mm
- IP grade
- 20
- Length [mm]
- 360
- Width [mm]
- 30
- Height/thickness [mm]
- 16
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 350
- Max. current of CC driver [mA]
- 1050
- Power factor
- 0.99
