LED power supply Tridonic LC 40/200-350/133 flexCC lp SNC4 CCT
LED power supply Tridonic LC 40W 200-350mA 133V flexCC lp SNC4 CCT is a constant current LED driver rated up to 39.9 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 40/200-350/133 flexCC lp SNC4 CCT
72.00 PLN
Shipment in 8-10 working days
zas_tridonic_87501103
LED power supply Tridonic LC 40W 200-350mA 133V flexCC lp SNC4 CCT is a constant current LED driver rated up to 39.9 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 40W 200-350mA 133V flexCC lp SNC4 CCT is a constant current LED driver in the Driver LC 40W 200-350mA 133V flexCC lp SNC4 CCT family. Official article number 87501103 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87501103 |
|---|---|
| Manufacturer family | Driver LC 40W 200-350mA 133V flexCC lp SNC4 CCT |
| Manufacturer product group | Linear drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Leakage current | <0.45 mA |
| Input current | 210 mA |
| Output power range | 10–39.9 W |
| Typ. efficiency at 230 V | 93 % |
| λ over full operating range (max.) | 0.97 |
| λ over full operating range (min.) | 0.7C |
| THD at 230V, full load | <20 % |
| Starting time | ≤0.5 s |
| Turn off time | ≤0.15 s |
| Hold on time | <0.3 s |
| Output current tolerance, min./full load | ±7.5 % |
| Max. repetitive output peak current | 395 mA |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 250 V |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| (Mains) burst capability | 1 kV |
| Surge voltage at output side (against PE) | 2.5 kV |
| Ambient temperature ta | 60 °C |
| Storage temperature ts | -40–80 °C |
| Type of protection | IP20 |

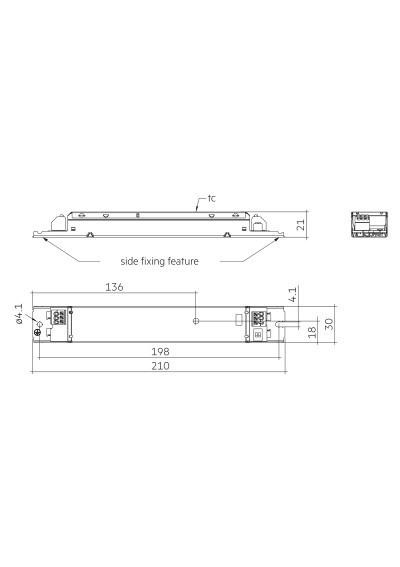

| Length | 210 mm |
| Width | 30 mm |
| Height | 21 mm |
| Hole spacing | 198 mm |
| Lifetime | up to 50000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 39.9 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Storage temperature | -40–80 °C |
| THD | <20 % |
| Typ. efficiency at 230 V | 93 % |
| λ over full operating range (max.) | 0.97 |
| Dimensions L×W×H | 210 × 30 × 21 mm |
| Lifetime [h] | up to 50000 h |
| Product net weight | 0.117 kg |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | LED Constant current LED driver for luminaire installation |
| Manufacturer note: Product description | For class I luminaires |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Flexible CCT setting via 3-way dip switch |
| Manufacturer note: Product description | Selectable fixed output current 200, 250, 300 and 350 mA (pre-selected current 350 mA) |
| Manufacturer note: Product description | Max. output power 39.9 W |
| Manufacturer note: Product description | Up to 93 % efficiency |
| Manufacturer note: Product description | Nominal lifetime up to 50,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: metal, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max | Resistor / I-out select |
|---|---|---|---|---|---|---|---|---|
| 1 | 200.0 mA | 50 V; 133 V | 131 mA | 26.6 W | 28.7 W | -20–60 °C | 75.0 °C | 1=off / 2=off |
| 2 | 250.0 mA | 50 V; 133 V | 159 mA | 33.3 W | 35.5 W | -20–60 °C | 75.0 °C | 1=on / 2=off |
| 3 | 300.0 mA | 50 V; 133 V | 190 mA | 39.9 W | 43.5 W | -20–60 °C | 80.0 °C | 1=off / 2=on |
| 4 | 350.0 mA | 50 V; 114 V | 192 mA | 39.9 W | 43.1 W | -20–60 °C | 80.0 °C | 1=on / 2=on |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87501103
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 39.9
- Output Current of CC power supply [mA]
- 200-350
- CC operating window
- 50-133
- Min. output voltage of led driver (CC)
- 50
- Max. output voltage of led driver (CC)
- 133
- Dimensions (L x W x H) [mm]
- 210 × 30 × 21 mm
- IP grade
- 20
- Length [mm]
- 210
- Width [mm]
- 30
- Height/thickness [mm]
- 21
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 200
- Max. current of CC driver [mA]
- 350
- Power factor
- 0.97
