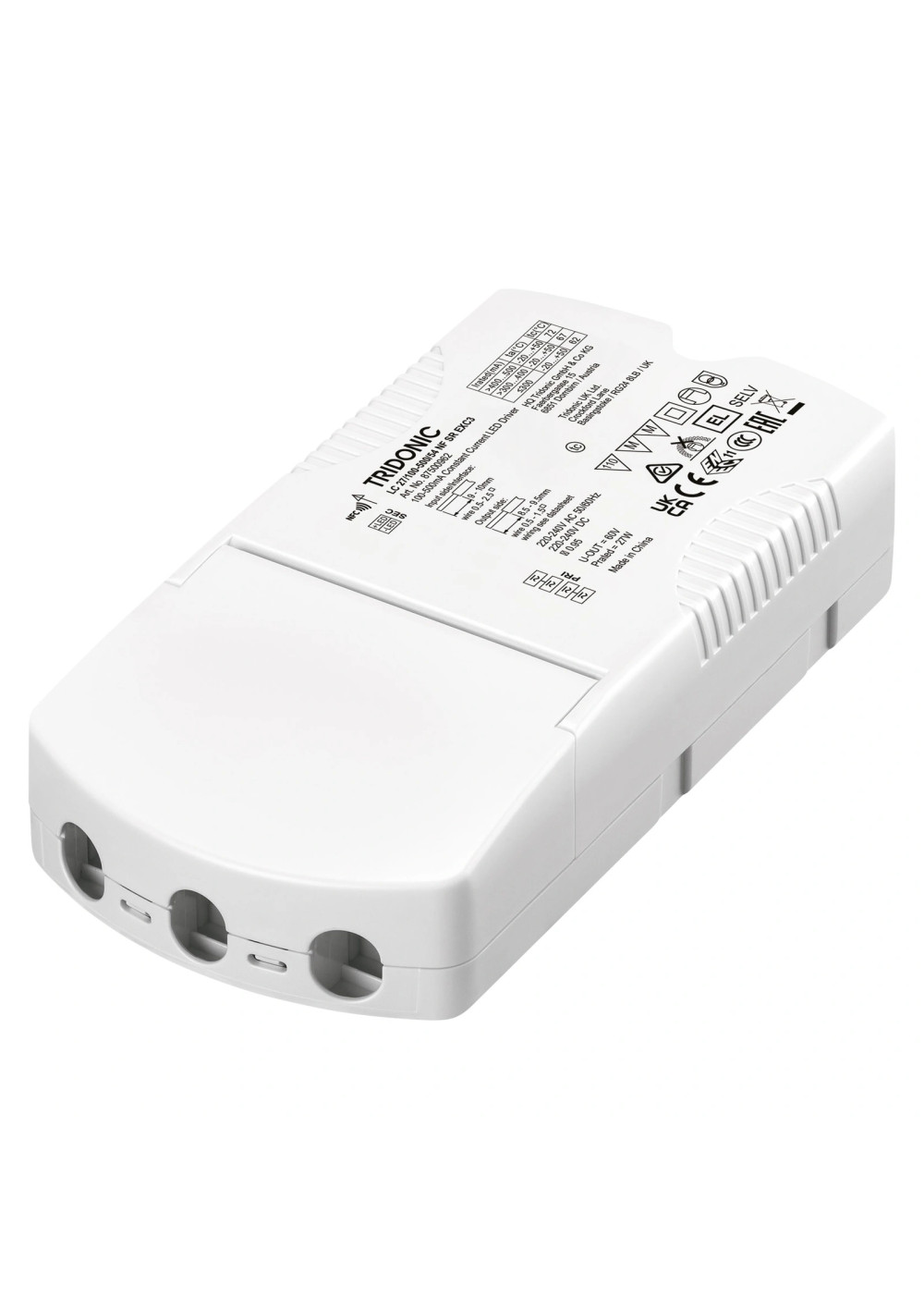

LED power supply Tridonic LC 27/100-500/54 NF SR EXC3
LED power supply Tridonic LC 27W 100-500mA 54V NF SR EXC3 is a constant current LED driver rated up to 27 W. Its adjustable output current range is 100–500 mA. Documented interfaces and configuration methods: NFC.
LED power supply Tridonic LC 27/100-500/54 NF SR EXC3
176.25 PLN
Shipment in 8-10 working days
zas_tridonic_87500962
LED power supply Tridonic LC 27W 100-500mA 54V NF SR EXC3 is a constant current LED driver rated up to 27 W. Its adjustable output current range is 100–500 mA. Documented interfaces and configuration methods: NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 27W 100-500mA 54V NF SR EXC3 is a constant current LED driver in the Driver LC 27W 100-500mA 54V NF SR EXC3 family. Official article number 87500962 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500962 |
|---|---|
| Manufacturer family | Driver LC 27W 100-500mA 54V NF SR EXC3 |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 270 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 142 mA |
| Typ. current (220 V, 0 Hz, full load, XX % dimming level) | 143 mA |
| Leakage current | <0.7 mA |
| Typ. input current in no-load operation | <21 mA |
| Power Consumption | 31.7 W |
| Typ. input power in no-load operation | 1.11 W |
| Typ. efficiency at 230 V | 84 % |
| λ over full operating range (max.) | 0.95 |
| THD at 230V, full load | <20 % |
| Starting time | <0.5 s; <0.8 s |
| Switchover time (AC/DC) | <1 s |
| Turn off time | <0.2 s |
| Output current tolerance, min./full load | ±5 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +20 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 60 V |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| Surge voltage at output side (against PE) | 3 kV |
| Type of protection | IP20 |

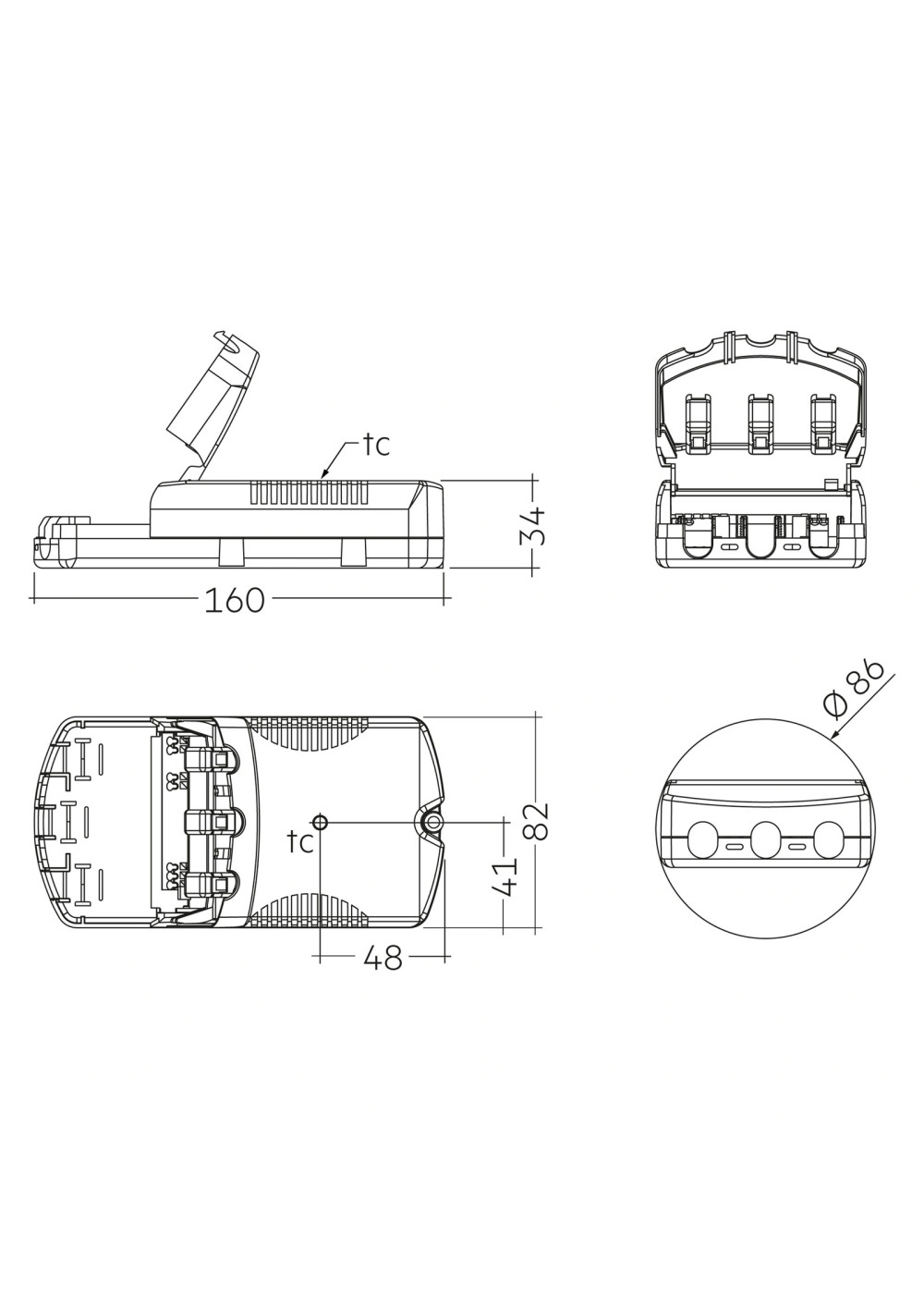

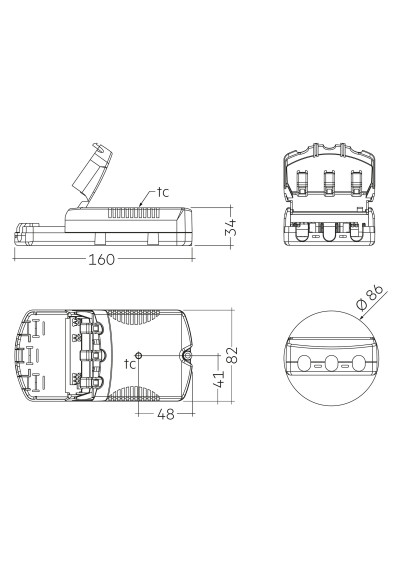

| Length | 160 mm |
| Width | 82 mm |
| Height | 34 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 27 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| THD | <20 % |
| Typ. efficiency at 230 V | 84 % |
| λ over full operating range (max.) | 0.95 |
| Dimensions L×W×H | 160 × 82 × 34 mm |
| Lifetime [h] | up to 100000 h |
| Minimum output current [mA] | 100 |
| Maximum output current [mA] | 500 |
| Product net weight | 0.164 kg |
| Interfaces and configuration | NFC |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Independent constant current LED driver |
| Manufacturer note: Product description | Output current adjustable between 100 –500 mA with NFC |
| Manufacturer note: Product description | Max. output power 27 W |
| Manufacturer note: Product description | Up to 84 % efficiency |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Housing properties | Strain relief with loop through function |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load) |
| Manufacturer note: Functions | Surge protection voltage 1 kV (L – N) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to EN 50172 |
| Manufacturer note: Functions | For cable cross-sections up to 2.5 mm² |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE (NFC) |
| Manufacturer note: Benefits | Application-oriented operating window for maximum compatibility |
| Manufacturer note: Typical applications | For applications in downlight and decorative luminaires |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|
| 1 | 100.0 mA | 27 V; 54 V | 50 mA | 5.4 W | 8.3 W | -20–50 °C | 62.0 °C |
| 2 | 200.0 mA | 27 V; 54 V | 69 mA | 10.8 W | 13.8 W | -20–50 °C | 62.0 °C |
| 3 | 300.0 mA | 27 V; 54 V | 92 mA | 16.2 W | 19.6 W | -20–50 °C | 62.0 °C |
| 4 | 400.0 mA | 27 V; 54 V | 117 mA | 21.6 W | 25.7 W | -20–50 °C | 62.0 °C |
| 5 | 500.0 mA | 27 V; 54 V | 141 mA | 27 W | 31.7 W | -20–50 °C | 72.0 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87500962
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 27
- Output Current of CC power supply [mA]
- 100-500
- CC operating window
- 27-54
- Min. output voltage of led driver (CC)
- 27
- Max. output voltage of led driver (CC)
- 54
- Dimensions (L x W x H) [mm]
- 160 × 82 × 34 mm
- IP grade
- 20
- Length [mm]
- 160
- Width [mm]
- 82
- Height/thickness [mm]
- 34
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 100
- Max. current of CC driver [mA]
- 500
- Power factor
- 0.95
