Mean Well ELG-100-C1050A-3Y 99.75 W CC LED driver 1050 mA
Mean Well ELG-100-C1050A-3Y 99.75 W CC LED driver 1050 mA – dimensions

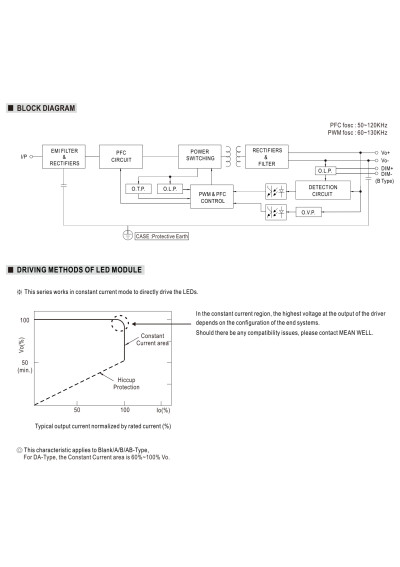

Mean Well ELG-100-C1050A-3Y 99.75 W CC LED driver 1050 mA – block diagram

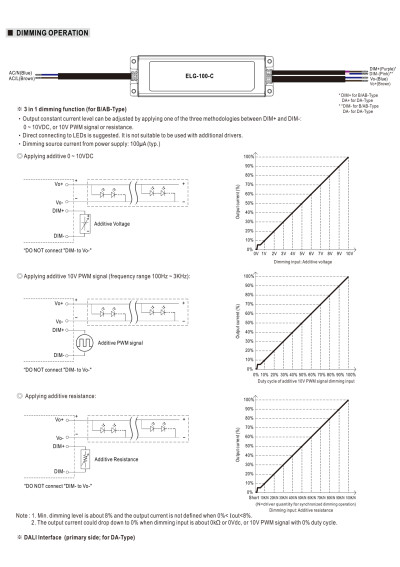

Mean Well ELG-100-C1050A-3Y 99.75 W CC LED driver 1050 mA – dimming diagram

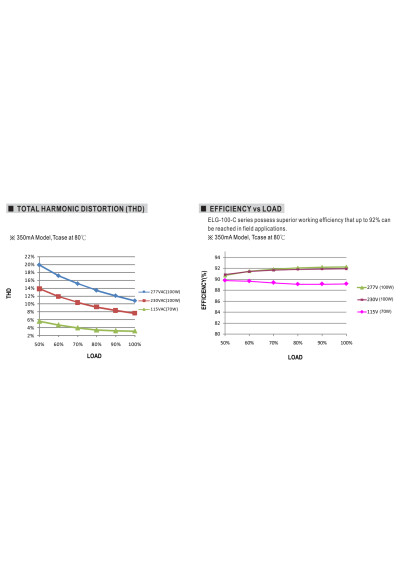

Mean Well ELG-100-C1050A-3Y 99.75 W CC LED driver 1050 mA – efficiency versus load characteristic

Mean Well ELG-100-C1050A-3Y 99.75W 1050mA 48–95V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
170.72 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_ELG-100-C1050A-3Y

Mean Well ELG-100-C1050A-3Y is a 99.75 W constant-current LED driver rated at 1050 mA, with a 48 V–95 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 162.59 PLN
10+ 154.46 PLN
20+ 146.33 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-100-C1050A-3Y – full product specification

Mean Well ELG-100-C1050A-3Y is a ELG-100-C-series power supply rated at 99.75 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1050 mA across a 48 V–95 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions199 × 63 × 35.5 mm
Document revisionELG-100-C-SPEC 2026-07-06
Typical efficiency90 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current40 A
IP ratingIP67
Rated current1050 mA
Operating modeConstant Current (CC)
CC-region maximum voltage95 V
CC-region minimum voltage48 V
Over-voltage protection range110–130 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power99.75 W
Manufacturer warranty5 years
Weight0.85 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-100-C1050A-3Y

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
1050
CC operating window
48-95
Min. output voltage of led driver (CC)
48
Max. output voltage of led driver (CC)
95
IP grade
67
Length [mm]
199
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287443973
MPN
ELG-100-C1050A-3Y
