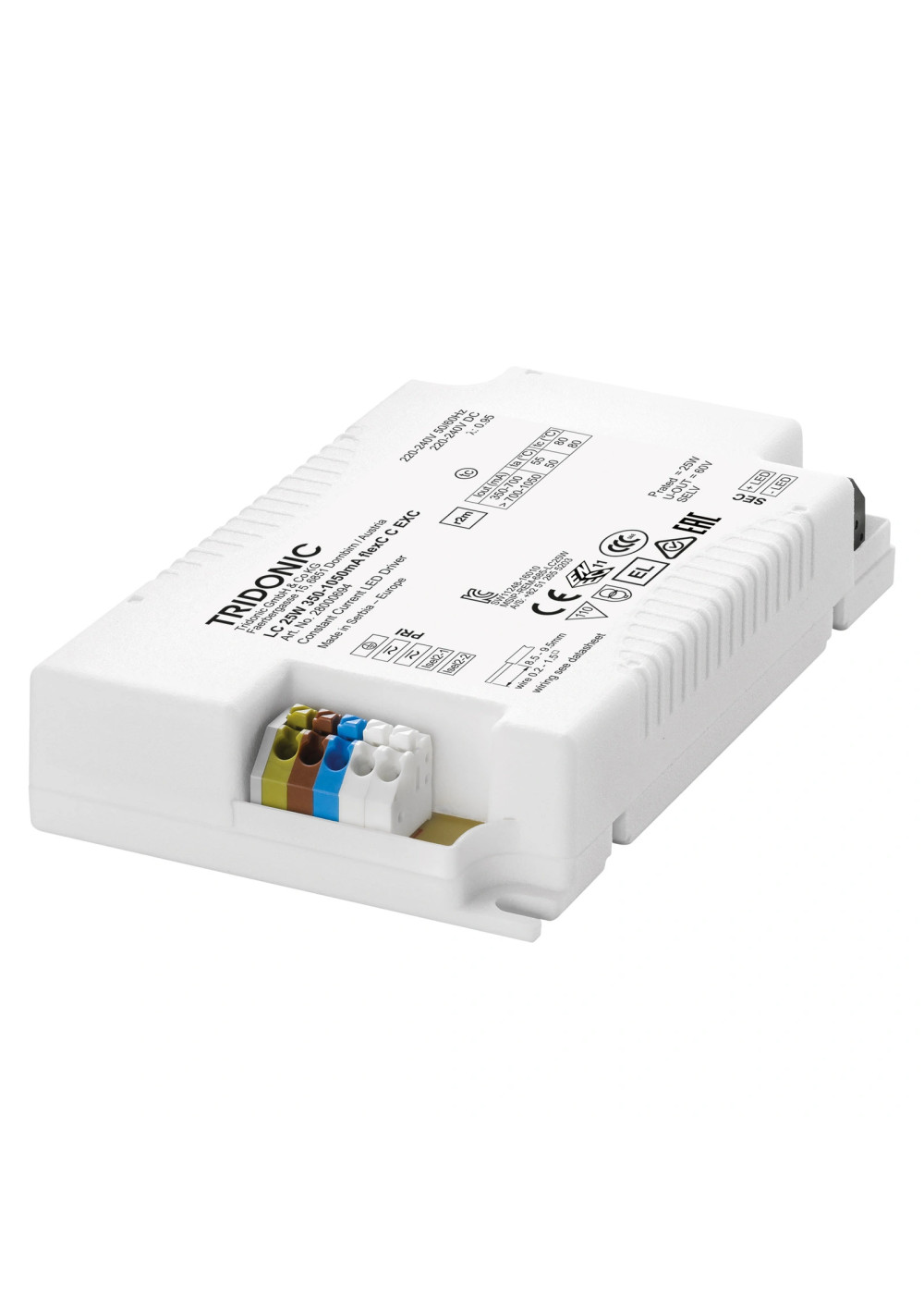

LED power supply Tridonic LC 25W 350-1050mA flexC C EXC
LED power supply Tridonic LC 25W 350-1050mA flexC C EXC is a constant current LED driver rated up to 25 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 25W 350-1050mA flexC C EXC
187.50 PLN
Shipment in 8-10 working days
zas_tridonic_28000694
LED power supply Tridonic LC 25W 350-1050mA flexC C EXC is a constant current LED driver rated up to 25 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 25W 350-1050mA flexC C EXC is a constant current LED driver in the Driver LC 25W 350–1050mA flexC C EXC family. Official article number 28000694 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28000694 |
|---|---|
| Manufacturer family | Driver LC 25W 350–1050mA flexC C EXC |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 133 mA |
| Typ. current (220 V, 0 Hz, full load, XX % dimming level) | 85 mA |
| Leakage current | <0.25 mA |
| Typ. input current in no-load operation | 17 mA |
| Power Consumption | 29.8 W |
| Typ. input power in no-load operation | 0.5 W |
| Typ. efficiency at 230 V | 86 % |
| λ over full operating range (max.) | 0.96 |
| THD at 230V, full load | <10 % |
| Starting time | <0.5 s; <0.5 s |
| Switchover time (AC/DC) | <0.2 s |
| Turn off time | <0.05 s |
| Output current tolerance, min./full load | ±5 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +35 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 60 V |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| Burst / surge peaks output side against PE | <500 kV |
| Type of protection | IP20 |
| Length | 105 mm |
| Width | 70 mm |
| Height | 22 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 25 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| THD | <10 % |
| Typ. efficiency at 230 V | 86 % |
| λ over full operating range (max.) | 0.96 |

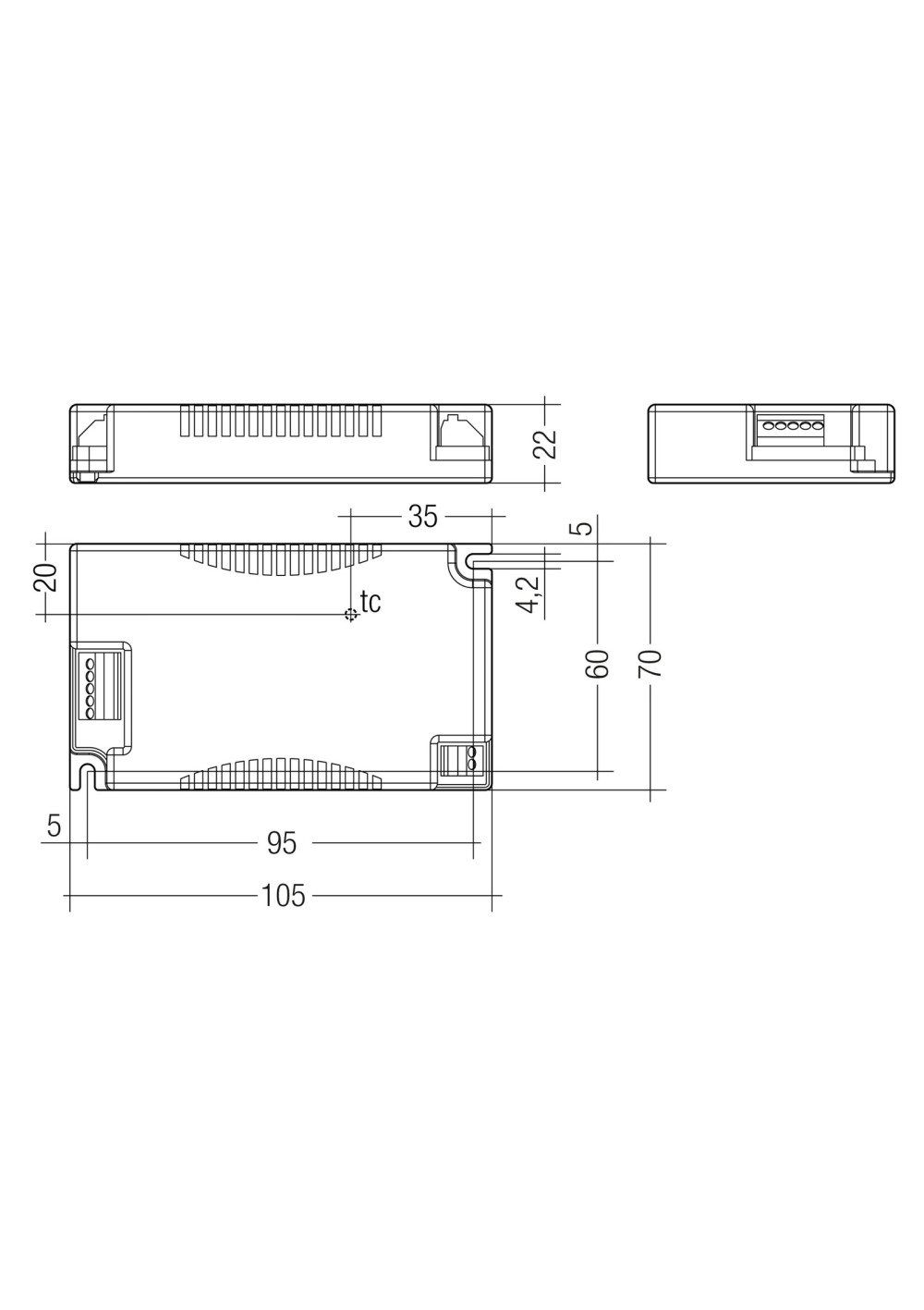

| Dimensions L×W×H | 105 × 70 × 22 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.118 kg |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current LED driver |
| Manufacturer note: Product description | Adjustable output current between 350 and 1,050 mA via ready2mains Programmer or I-SELECT 2 plugs |
| Manufacturer note: Product description | Max. output power 25 W |
| Manufacturer note: Product description | Up to 86 % efficiency |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | ready2mains (configuration via mains) |
| Manufacturer note: Interfaces | Terminal blocks: 45° push terminals |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to EN 50172 |
| Manufacturer note: Benefits | Application-oriented operating window for maximum compatibility |
| Manufacturer note: Benefits | Best energy savings due to high efficiency |
| Manufacturer note: Benefits | Flexible configuration via ready2mains and I-SELECT 2 |
| Manufacturer note: Typical applications | For downlight, spotlight and decorative applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max | i-SELECT resistor value |
|---|---|---|---|---|---|---|---|---|
| 1 | 350.0 mA | 20 V; 50 V | 100 mA | 17.5 W | 21.5 W | -25–55 °C | 80.0 °C | — |
| 2 | 400.0 mA | 20 V; 50 V | 110 mA | 20 W | 24.9 W | -25–55 °C | 80.0 °C | 12.5 kΩ |
| 3 | 450.0 mA | 20 V; 50 V | 120 mA | 22.5 W | 26.5 W | -25–55 °C | 80.0 °C | 11.11 kΩ |
| 4 | 500.0 mA | 20 V; 50 V | 132 mA | 25 W | 29.3 W | -25–55 °C | 80.0 °C | 10 kΩ |
| 5 | 550.0 mA | 20 V; 45.5 V | 131 mA | 25 W | 29.1 W | -25–55 °C | 80.0 °C | 9.09 kΩ |
| 6 | 600.0 mA | 20 V; 41.7 V | 132 mA | 25 W | 29.1 W | -25–55 °C | 80.0 °C | 8.33 kΩ |
| 7 | 650.0 mA | 20 V; 38.5 V | 131 mA | 25 W | 28.9 W | -25–55 °C | 80.0 °C | 7.69 kΩ |
| 8 | 700.0 mA | 20 V; 35.7 V | 131 mA | 25 W | 29 W | -25–55 °C | 80.0 °C | 7.14 kΩ |
| 9 | 750.0 mA | 20 V; 33.3 V | 130 mA | 25 W | 28.9 W | -25–50 °C | 80.0 °C | 6.67 kΩ |
| 10 | 800.0 mA | 20 V; 31.3 V | 132 mA | 25 W | 29.3 W | -25–50 °C | 80.0 °C | 6.25 kΩ |
| 11 | 850.0 mA | 20 V; 29.4 V | 132 mA | 25 W | 29.1 W | -25–50 °C | 80.0 °C | 5.88 kΩ |
| 12 | 900.0 mA | 20 V; 27.8 V | 133 mA | 25 W | 29.4 W | -25–50 °C | 80.0 °C | 5.66 kΩ |
| 13 | 950.0 mA | 20 V; 26.3 V | 132 mA | 25 W | 29.4 W | -25–50 °C | 80.0 °C | 5.26 kΩ |
| 14 | 1000.0 mA | 20 V; 25 V | 133 mA | 25 W | 29.5 W | -25–50 °C | 80.0 °C | 5 kΩ |
| 15 | 1050.0 mA | 20 V; 23.8 V | 132 mA | 25 W | 29.4 W | -25–50 °C | 80.0 °C | Short circuit (0 kΩ) |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28000694
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 25
- Output Current of CC power supply [mA]
- 350-1050
- CC operating window
- 20-50
- Min. output voltage of led driver (CC)
- 20
- Max. output voltage of led driver (CC)
- 50
- Dimensions (L x W x H) [mm]
- 105 × 70 × 22 mm
- IP grade
- 20
- Length [mm]
- 105
- Width [mm]
- 70
- Height/thickness [mm]
- 22
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 350
- Max. current of CC driver [mA]
- 1050
- Power factor
- 0.96
