LED power supply | Tridonic LC 15W 200-350mA flexC T SNC3

Name: LED power supply | Tridonic LC 15W 200-350mA flexC T SNC3
Brand: Tridonic
SKU: zas_tridonic_87501149
Price: 104.87 PLN
Availability: InStock

104.87 PLN

Shipment in 1-2 business days

Category: Constant Current (CC)

Reference: zas_tridonic_87501149

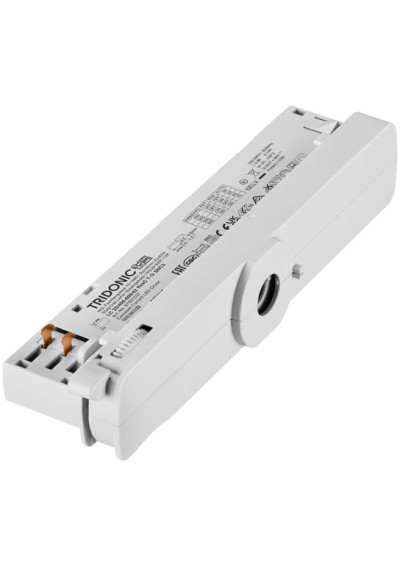

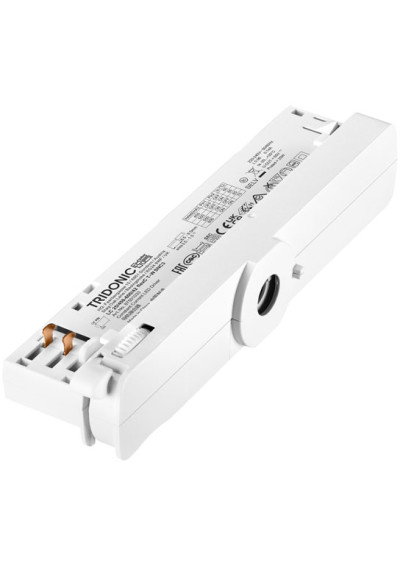

Tridonic LC 15W 200-350mA flexC T SNC3 is a compact LED power supply for 3-phase tracks. It offers selectable 200–350 mA output current, up to 85% efficiency and lifetime up to 100,000 hours.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

Technical data of LED power supply Tridonic LC 15W 200-350mA flexC T SNC3

Output power	4.8–14.7 W
Output current setting	DIP switch: 200 / 250 / 300 / 350 mA
Output voltage	24–42 V DC
Device type	Constant current LED power supply
Typical efficiency	up to 85%
Supply voltage	220–240 V AC, 50 / 60 Hz
Mains voltage range	198–264 V AC
Max. input current	0.08 A at 230 V
Typical power consumption	up to 17.5 W
Power factor	0.95 at full load
Max. output voltage (U-OUT)	60 V
Output current ripple	< 5% LF (< 120 Hz)
THD	< 15% at full load
Starting time	< 0.5 s
Turn off time	≤ 0.5 s
Ambient temperature ta	-20…+35 °C
Storage temperature	-40…+80 °C
Max. tc temperature	up to 60 °C at 350 mA
Protection class	II
IP rating	IP20
Dimensions	163 x 31 x 45 mm
Housing colour	black (RAL 9005)
Lifetime	up to 100,000 h
Manufacturer warranty	5 years
Track system	3-phase in-track mounting
Standards	EN 55015, EN 61000-3-2, EN 61347-1, EN 61347-2-13, EN 61547
Product website	http://www.tridonic.com/87501149

LED power supply for 3-phase in-track lighting

Tridonic LC 15W 200-350mA flexC T SNC3 is an LED power supply designed for direct installation in 3-phase tracks. It is ideal for retail, hospitality and showroom applications. The compact housing integrates with a track adapter and keeps the luminaire clean and minimal.

The power supply delivers up to 14.7 W with a selectable current range from 200 to 350 mA. This allows matching different LED modules while maintaining high efficiency and safe operation. DIP switches on the housing make current setup simple before installation.

LED power supply – efficiency and durability first

The LED power supply reaches typical efficiency up to 85% at full load. This reduces losses and operating temperature. A power factor of 0.95 supports stable mains loading and helps meet project requirements. Compliance with EMC and safety standards ensures reliable operation in professional lighting systems.

The declared lifetime is up to 100,000 hours under reference conditions. The power supply includes overload, short circuit and no load protection. Ambient temperature up to 35 °C suits most indoor track lighting installations. The IP20 rating is perfect for dry interior environments.

LED power supply – mounting, accessories and applications

The LED power supply works with many popular three phase track systems. Phase selection is possible directly on the adapter when used in three phase networks. The maximum allowed luminaire weight is 5 kg, which gives wide design freedom. The black polycarbonate housing fits modern spot and downlight designs.

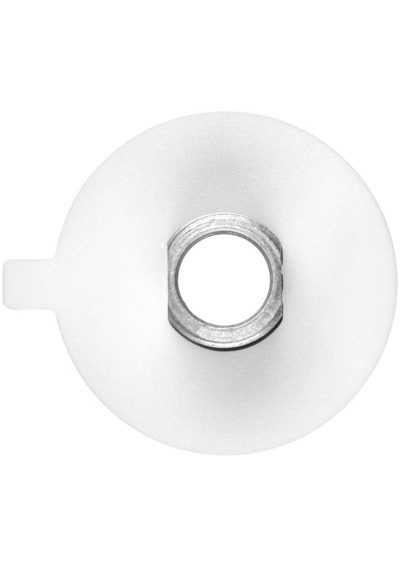

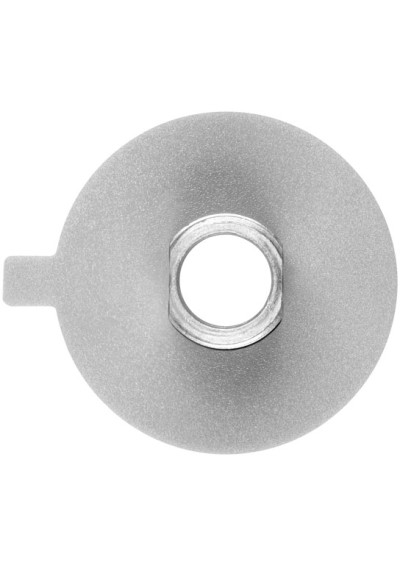

An optional ACU ALU NIPPLE M10 accessory simplifies mechanical connection of the luminaire head. The manufacturer recommends screw fixing instead of glue for best reliability. The power supply is an excellent choice for spotlights in retail and hospitality projects. By choosing this power supply you gain stable output, long lifetime and support from a well known brand.
