LED power supply Tridonic LC 14/100-400/42 flexC NF SC EXC3
LED power supply Tridonic LC 14W 100-400mA 42V flexC NF SC EXC3 is a LED power supply rated up to 14 W. Its adjustable output current range is 100–400 mA. Documented interfaces and configuration methods: NFC.
LED power supply Tridonic LC 14/100-400/42 flexC NF SC EXC3
156.25 PLN
Shipment in 8-10 working days
zas_tridonic_87501026
LED power supply Tridonic LC 14W 100-400mA 42V flexC NF SC EXC3 is a LED power supply rated up to 14 W. Its adjustable output current range is 100–400 mA. Documented interfaces and configuration methods: NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 14W 100-400mA 42V flexC NF SC EXC3 is a LED power supply in the Driver LC 14W 100–400mA flexC NF SC EXC3 family. Official article number 87501026 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87501026 |
|---|---|
| Manufacturer family | Driver LC 14W 100–400mA flexC NF SC EXC3 |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 80 mA |
| Leakage current | <0.45 mA |
| Power Consumption | 17 W |
| Typ. efficiency at 230 V | 83 % |
| λ over full operating range (max.) | 0.32–0.9C; 0.9C |
| THD at 230V, full load | <20 % |
| Starting time | <0.5 s; <0.5 s |
| Switchover time (AC/DC) | <0.8 s |
| Turn off time | <0.05 s |
| Output current tolerance, min./full load | ±7.5 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +20 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 60 V |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| Burst protection | 1 kV |
| Burst / surge peaks output side against PE | <3 kV |
| Ambient temperature ta | -20–50 °C |
| Max. casing temperature tc | 75 °C |
| Type of protection | IP20 |

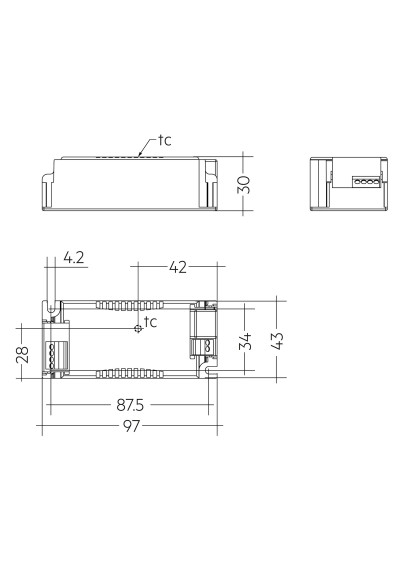

| Length | 97 mm |
| Width | 43 mm |
| Height | 30 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Maximum output power [W] | 14 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Maximum casing temperature tc | 75 °C |
| THD | <20 % |
| Typ. efficiency at 230 V | 83 % |
| Dimensions L×W×H | 97 × 43 × 30 mm |
| Lifetime [h] | up to 100000 h |
| Minimum output current [mA] | 100 |
| Maximum output current [mA] | 400 |
| Product net weight | 0.083 kg |
| Interfaces and configuration | NFC |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Can be either used build-in or independent with clip-on strain-relief (see accessory) |
| Manufacturer note: Product description | For luminaires of protection class I and protection class II |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Adjustable output current between 100 – 400 mA via NFC |
| Manufacturer note: Product description | Max. output power 14 W |
| Manufacturer note: Product description | Up to 83 % efficiency |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Interfaces | Terminal blocks: 45° push terminals |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC) |
| Manufacturer note: Functions | Constant light output function (CLO) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to EN 50172 |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE (NFC) |
| Manufacturer note: Benefits | Application-oriented operating window for maximum compatibility |
| Manufacturer note: Benefits | Best energy savings due to low stand-by losses and high efficiency |
| Manufacturer note: Benefits | In-field programming possible after installation with NFC interface |
| Manufacturer note: Typical applications | For downlight, spotlight and decorative applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption |
|---|---|---|---|---|---|
| 1 | 100.0 mA | 7.5 V; 42 V | 40 mA | 4.2 W | 6 W |
| 2 | 200.0 mA | 7.5 V; 42 V | 55 mA | 8.4 W | 10.5 W |
| 3 | 300.0 mA | 7.5 V; 42 V | 73 mA | 12.6 W | 15 W |
| 4 | 333.0 mA | 7.5 V; 42 V | 80 mA | 14 W | 17 W |
| 5 | 400.0 mA | 7.5 V; 35 V | 80 mA | 14 W | 17 W |
Installation / application
Select the load for the documented voltage and permissible power. Dimming and installation details apply only to interfaces documented for this article.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87501026
Data sheet
- Rated power [W]
- 14
- Dimensions (L x W x H) [mm]
- 97 × 43 × 30 mm
- IP grade
- 20
- Length [mm]
- 97
- Width [mm]
- 43
- Height/thickness [mm]
- 30
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
