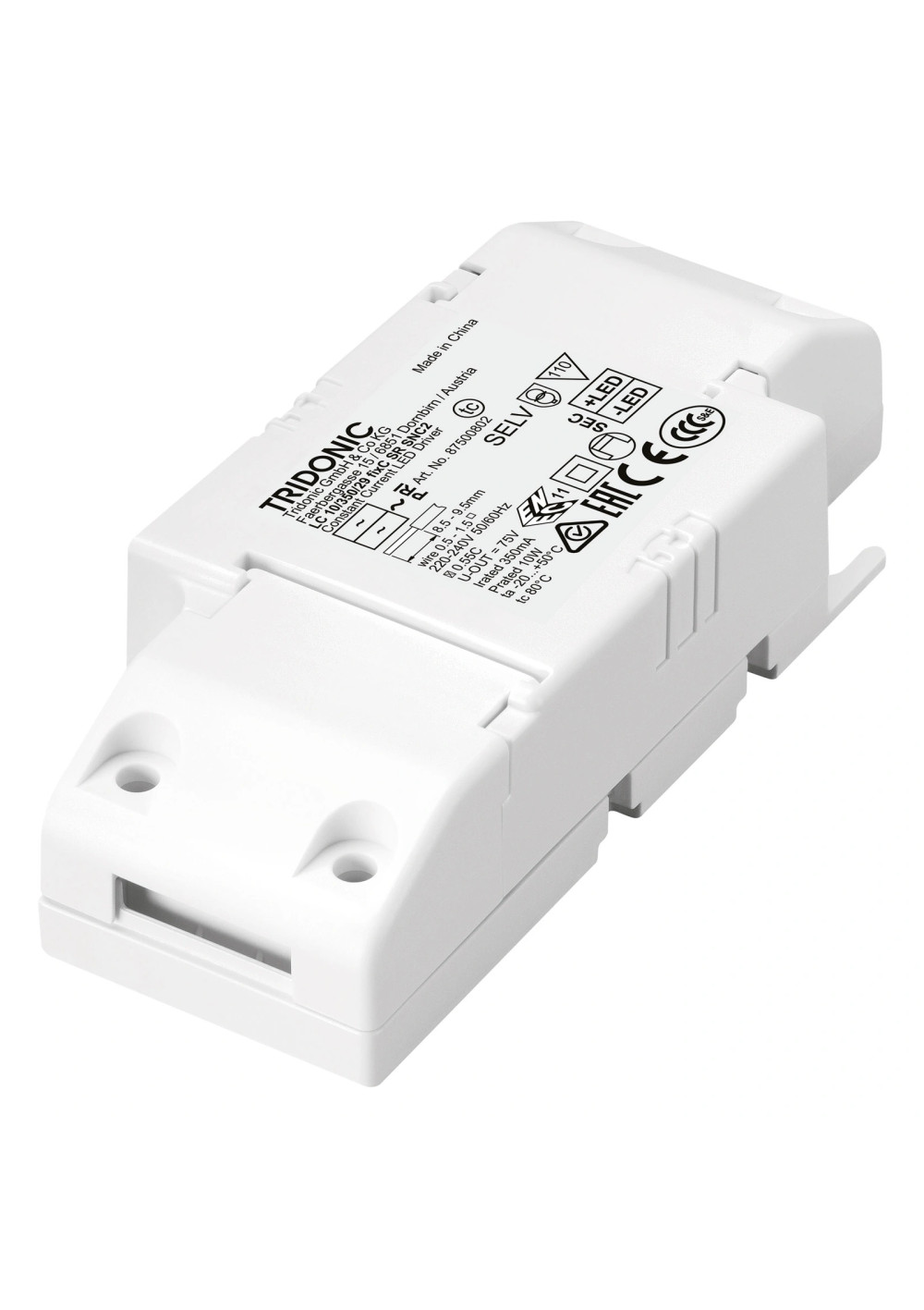

LED power supply Tridonic LC 10/350/29 fixC SR SNC2
LED power supply Tridonic LC 10W 350mA 29V fixC SR SNC2 is a LED power supply rated up to 10.2 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 10/350/29 fixC SR SNC2
70.50 PLN
Shipment in 8-10 working days
zas_tridonic_87500802
LED power supply Tridonic LC 10W 350mA 29V fixC SR SNC2 is a LED power supply rated up to 10.2 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 10W 350mA 29V fixC SR SNC2 is a LED power supply in the Driver LC 10W 250/350/500/700mA fixC SR SNC2 family. Official article number 87500802 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500802 |
|---|---|
| Manufacturer family | Driver LC 10W 250/350/500/700mA fixC SR SNC2 |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 1 h |
| THD at 230V, full load | ≤110 % |
| Starting time | ≤0.5 s |
| Turn off time | ≤0.5 s |
| Hold on time | 0 s |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Storage temperature ts | -40–80 °C |
| Guarantee | 5 years |
| Output current | 350 mA |
| Input current, 230V, full load | 100.0 mA |
| Min./Max. forward voltage | 17 V; 29 V |
| Max. output voltage | 75 V |
| Typ. output power | 10 W |
| Output power range | 6–10.2 W |
| Power Consumption | 12.5 W; 13 W |
| Efficiency at min./full load | 80 %; 82 % |
| λ over full operating range (max.) | 0.55C; 0.55C |
| λ over full operating range (min.) | 0.5C |
| Output current tolerance, min./full load | ±7.5 % |
| Max. repetitive output peak current | 395 mA |
| Output current ripple | ±5 % |
| Ambient temperature ta | 40 °C; -25–50 °C |
| Max. casing temperature tc | 80 °C |
| Lifetime | up to 50000 h |
| Length | 100 mm |
| Width | 43 mm |
| Height | 22.5 mm |
| Maximum output power [W] | 10.2 |
| Input voltage | 220 – 240 V |
| Warranty [years] | 5 |
| Maximum casing temperature tc | 80 °C |
| Storage temperature | -40–80 °C |
| THD | ≤110 % |

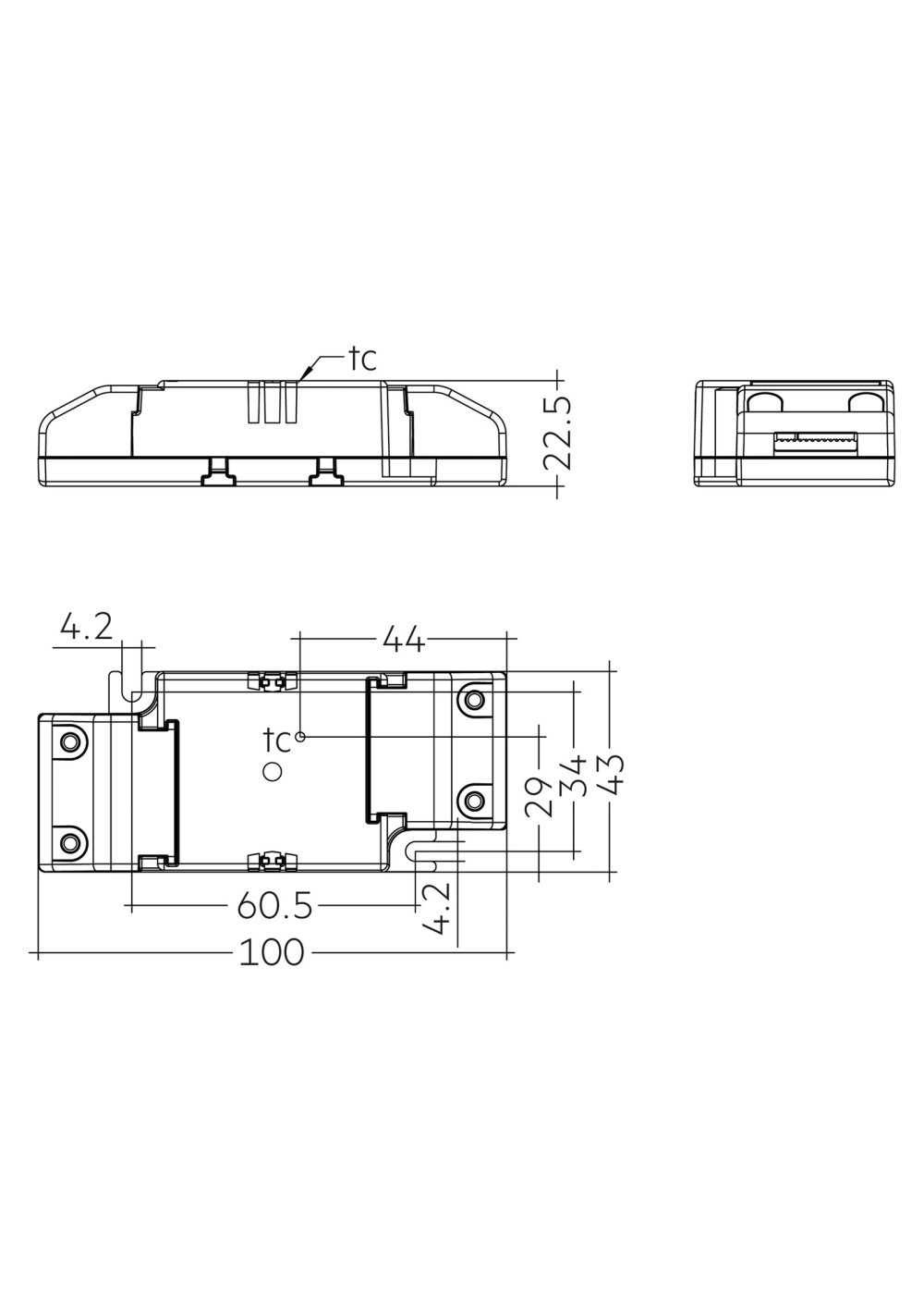

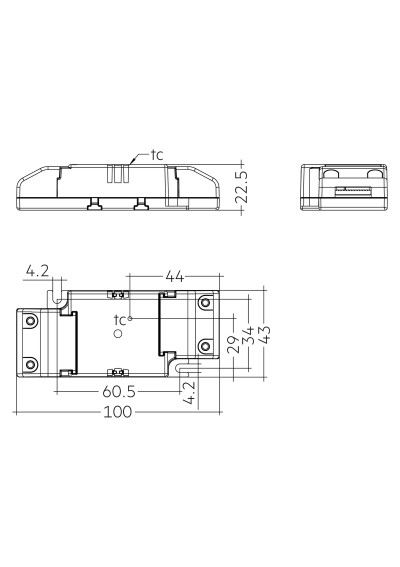

| Dimensions L×W×H | 100 × 43 × 22.5 mm |
| Lifetime [h] | up to 50000 h |
| Product net weight | 0.053 kg |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Independent driver with strain-relief housing |
| Manufacturer note: Product description | Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Output current 350 mA |
| Manufacturer note: Product description | Max. output power 10 W |
| Manufacturer note: Product description | BIS approval mark for art. no.: 87500802, 87500804. |
| Manufacturer note: Product description | Nominal lifetime up to 50,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Housing properties | Push-in terminals |
| Manufacturer note: Housing properties | 2 separate strain relief parts for input and output cables with highly robust clamps |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
| Manufacturer note: Functions | No output current overshoot at mains on/off |
| Manufacturer note: Functions | Burst protection voltage 1 kV |
| Manufacturer note: Functions | Surge protection voltage 0.5 kV (L to N) |
| Manufacturer note: Functions | Surge protection voltage 1 kV (L/N to earth) |
| Manufacturer note: Typical applications | For spot light and downlight in retail and hospitality applications |
| Manufacturer note: Typical applications | For panel light and area light in office and education application |
Operating points
| Point | Output current | Input current, 230V, full load | Min./Max. forward voltage | Max. output voltage | Typ. output power | Output power range | Power Consumption | Efficiency at min./full load | λ over full operating range (max.) | λ over full operating range (min.) | Output current tolerance, min./full load | Max. repetitive output peak current | Output current ripple | Ambient temperature ta | Max. casing temperature tc | Lifetime | Length | Width | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 350 mA | 100.0 mA | 17 V; 29 V | 75 V | 10 W | 6–10.2 W | 12.5 W; 13 W | 80 %; 82 % | 0.55C; 0.55C | 0.5C | ±7.5 % | 395 mA | ±5 % | 40 °C; -25–50 °C | 80 °C | up to 50000 h | 100 mm | 43 mm | 22.5 mm |
Installation / application
Select the load for the documented voltage and permissible power. Dimming and installation details apply only to interfaces documented for this article.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87500802
Data sheet
- Rated power [W]
- 10.2
- Dimensions (L x W x H) [mm]
- 100 × 43 × 22.5 mm
- Length [mm]
- 100
- Width [mm]
- 43
- Height/thickness [mm]
- 22.5
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
