Mean Well ELG-100-54B 96.12 W CV+CC LED driver
Mean Well ELG-100-54B 96.12 W CV+CC LED driver – dimensions

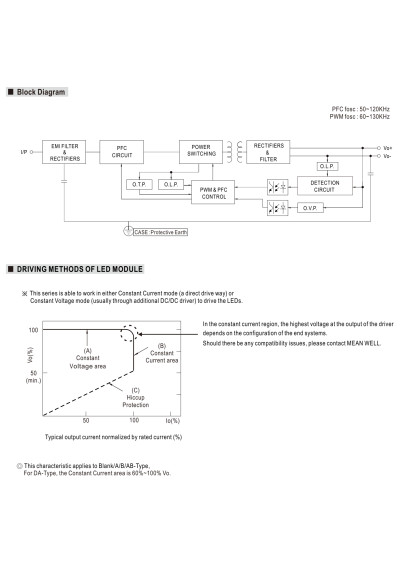

Mean Well ELG-100-54B 96.12 W CV+CC LED driver – block diagram

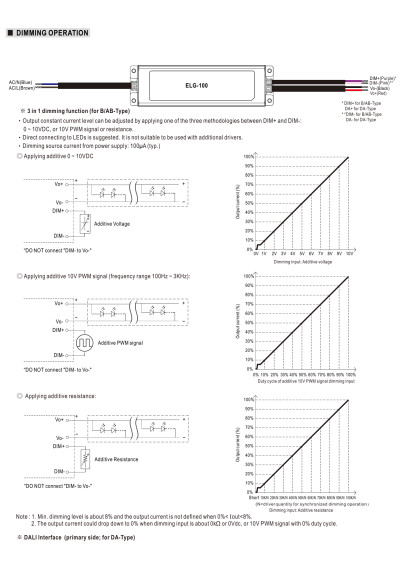

Mean Well ELG-100-54B 96.12 W CV+CC LED driver – dimming diagram

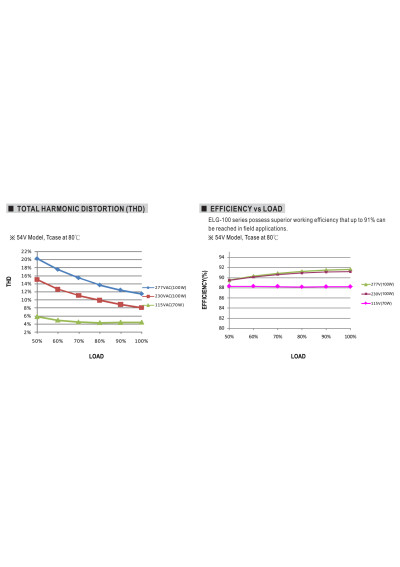

Mean Well ELG-100-54B 96.12 W CV+CC LED driver – efficiency versus load characteristic

Mean Well ELG-100-54B 96.12 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
178.85 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_ELG-100-54B

Mean Well ELG-100-54B is a 96.12 W CV+CC LED driver with a 27 V–54 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 170.72 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-100-54B – full product specification

Mean Well ELG-100-54B is a ELG-100-series power supply rated at 96.12 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 27 V–54 V DC.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
Dimensions199 × 63 × 35.5 mm
Document revisionELG-100-SPEC 2026-07-06
Typical efficiency91 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current60 A
IP ratingIP65
Rated current1780 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage54 V
CC-region minimum voltage27 V
Output voltage54 V
Over-voltage protection range62–72 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power96.12 W
Manufacturer warranty5 years
Weight0.85 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-100-54B

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
1780
CC operating window
27-54
Min. output voltage of led driver (CC)
27
Max. output voltage of led driver (CC)
54
IP grade
65
Length [mm]
199
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287440637
MPN
ELG-100-54B
