GLP GPCP-35-350 28W 350mA 40–80V Constant Current (CC) LED driver
GLP GPCP-35-350 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
GLP GPCP-35-350 28W 350mA 40–80V Constant Current (CC) LED driver
57.97 PLN
Shipment in 8-10 working days
zas_gpcp_35-350_mp
GLP GPCP-35-350 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
GPCP-35-350 – full technical specification
GLP GPCP-35-350 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Identity
| Manufacturer | GLP |
|---|---|
| Model | GPCP-35-350 |
| Series | GPCP |
Output parameters
| Current accuracy | 5 % |
|---|---|
| Line regulation | 1 % |
| Rated output current | 0.35 A |
| Operating mode | CC |
| Maximum output voltage | 80 V |
| Minimum output voltage | 40 V |
| Maximum no-load voltage | 80 V |
| Output voltage range | 40–80 V |
| Rated power | 28 W |
| Ripple and noise | 4VP-P |
Input parameters
| Input current | 0.6A/115VAC,0.3A/230VAC A |
|---|---|
| Input frequency | 47–63 Hz |
| Input voltage range | AC: 90–264 VAC |
| Inrush current | 65A/230VAC A |
| Leakage current | 1mA/240VAC mA |
Efficiency and electrical parameters
| Typical efficiency | 85 % |
|---|---|
| Power-factor correction | active |
Protections
| Short-circuit protection | Yes |
|---|---|
| Short-circuit protection behavior | hiccup mode,auto-recovery. |

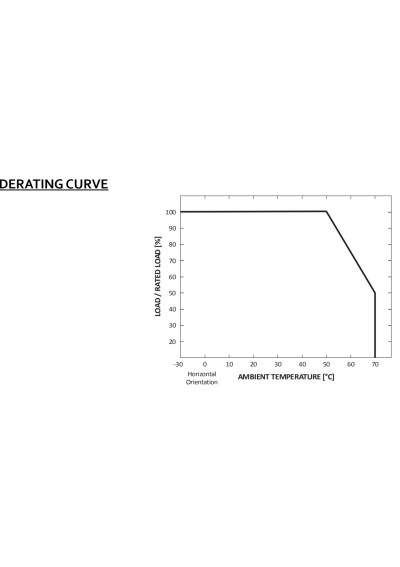

Environmental conditions
| Operating temperature | -30–70 °C |
|---|---|
| Storage temperature | -40–80 °C |
| Temperature coefficient | 0.03 %/°C |
| Operating humidity | 20–90 % RH |

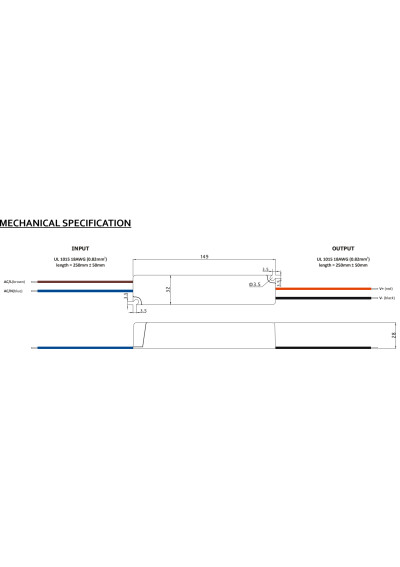

Construction and dimensions
| Cooling | free_air_convection |
|---|---|
| Dimensions (L × W × H) | 149 × 32 × 28 mm |
| IP rating | IP67 |
Safety and EMC
| EMC emission | Compliance to EN55015 |
|---|---|
| Harmonic current | Compliance to EN61000-3-3;EN61000-3-2classC(≥60%load) |
| EMC immunity | CompliandetoEN61547;EN55024;EN61000-4-2,-3,-4,-5,-6,-8,-11 |
| Insulation resistance | I-P/O-P;O-P/FG;I-P/FG:100MΩ/500VDC/25°C/70% |
| Safety standards | Compliance to EN61347-1,EN61347-2-13,IP67 |
| Withstand voltage | I-P/O-P:3kVAC |
Manufacturer documentation
zas_gpcp_35-350_mp
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 20,1-30
- Output Current of CC power supply [mA]
- 350
- CC operating window
- 40-80
- Min. output voltage of led driver (CC)
- 40
- Max. output voltage of led driver (CC)
- 80
- Dimensions (L x W x H) [mm]
- IP grade
- 67
- Length [mm]
- 149
- Width [mm]
- 32
- Height/thickness [mm]
- 28
- Input voltage [V]
- 90-264
Specific References
- EAN13
- 5901885208466
