Mean Well HVGC-100-700B 99.4W 700mA 15–142V Constant Current (CC) LED driver
Mean Well HVGC-100-700B is a 99.4 W constant-current LED driver rated at 700 mA, with a 15 V–142 V output-voltage region.
Mean Well HVGC-100-700B 99.4W 700mA 15–142V Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
341.46 PLN
Shipment in 1-2 business days
tm_HVGC-100-700B
Mean Well HVGC-100-700B is a 99.4 W constant-current LED driver rated at 700 mA, with a 15 V–142 V output-voltage region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
HVGC-100-700B – full product specification
Mean Well HVGC-100-700B is a HVGC-100-series power supply rated at 99.4 W. The parameters below come from the exact official manufacturer datasheet.
Constant-current output
The model regulates 700 mA across a 15 V–142 V DC voltage region.
Full technical specifications

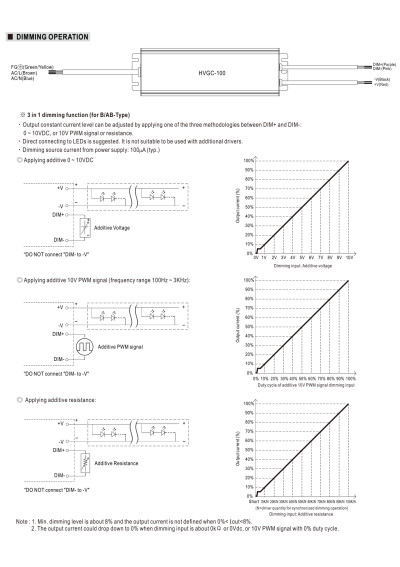

| 3-in-1 dimming | Yes |
|---|---|
| current_ripple_pct | 5 % |
| Dimensions | 236 × 68 × 38.8 mm |
| Document revision | HVGC-100-SPEC 2025-10-10 |

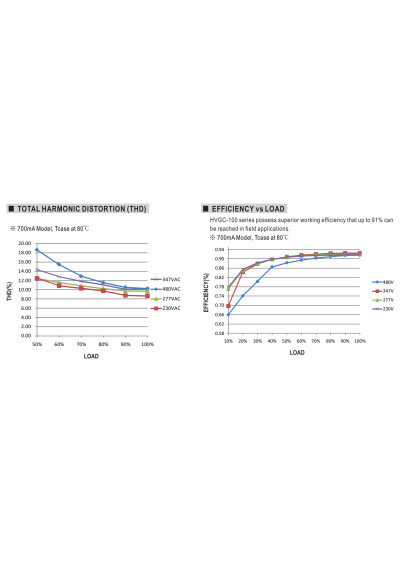

| Typical efficiency | 91 % |
| Input frequency | 47–63 Hz |
| IP rating | IP65 |
| Rated current | 700 mA |
| Operating mode | Constant Current (CC) |
| CC-region maximum voltage | 142 V |
| CC-region minimum voltage | 15 V |
| Over-voltage protection range | 150–160 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 99.4 W |
| Manufacturer warranty | 5 years |
| Weight | 1.18 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_HVGC-100-700B
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 60,1-100
- Output Current of CC power supply [mA]
- 700
- CC operating window
- 15-142
- Min. output voltage of led driver (CC)
- 15
- Max. output voltage of led driver (CC)
- 142
- IP grade
- 65
- Length [mm]
- 236
- Width [mm]
- 68
- Height/thickness [mm]
- 38.8
- Warranty [years]
- 5
Specific References
- EAN13
- 4711287454498
- MPN
- HVGC-100-700B
