Mean Well HLP-80H-15 60 W CV+CC LED driver

Name: Mean Well HLP-80H-15 60 W CV+CC LED driver
Brand: Mean Well
SKU: tm_HLP-80H-15
Price: 138.2 PLN
Availability: BackOrder

Minimum order quantity: 1. Order in multiples of 1.

138.20 PLN

Shipment in 8-10 working days

Reference: tm_HLP-80H-15

Mean Well HLP-80H-15 is a 60 W CV+CC LED driver with a 7.2 V–12 V constant-current region.

Volume discounts

Quantity	Discounted price
20+	130.07 PLN

Quantity

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

HLP-80H-15 – full product specification

Mean Well HLP-80H-15 is a HLP-80H-series power supply rated at 60 W. The parameters below come from the exact official manufacturer datasheet.

The driver combines voltage regulation and current limiting; its constant-current region is 7.2 V–12 V DC.

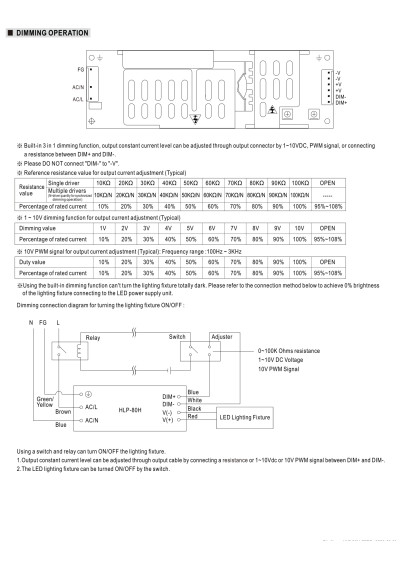

3-in-1 dimming	Yes
Cooling	free-air convection
Dimensions	167 × 53 × 29.5 mm
Document revision	HLP-80H-SPEC 2026-02-09

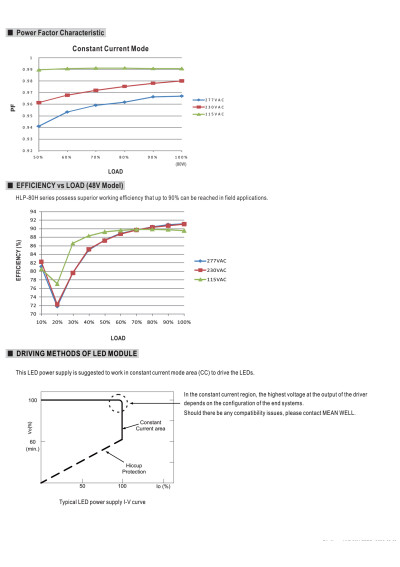

Typical efficiency	88.5 %
Input frequency	47–63 Hz
Input range	90–305 VAC / 127–431 VDC
Inrush current	70 A
Operating temperature	-40–70 °C
Rated current	5000 mA
Operating mode	Constant voltage + constant current (CV+CC)
CC-region maximum voltage	12 V
CC-region minimum voltage	7.2 V
Output voltage	15 V
Over-voltage protection range	14–17 V
Over-voltage protection	Yes
Short-circuit protection	Yes
Rated power	60 W
Manufacturer warranty	3 years
Weight	0.27 kg
