Mean Well PLN-100-36 95.4 W CV+CC LED driver
Mean Well PLN-100-36 is a 95.4 W CV+CC LED driver with a 27 V–36 V constant-current region.
Mean Well PLN-100-36 95.4 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
195.11 PLN
Shipment in 8-10 working days
tm_PLN-100-36
Mean Well PLN-100-36 is a 95.4 W CV+CC LED driver with a 27 V–36 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
PLN-100-36 – full product specification
Mean Well PLN-100-36 is a PLN-100-series power supply rated at 95.4 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 27 V–36 V DC.
Full technical specifications
| Fully isolated enclosure | Yes |
|---|---|
| Enclosure material | plastic |
| Cooling | free-air convection |
| Dimensions | 200 × 70.5 × 35 mm |
| Document revision | PLN-100-SPEC 2026-06-15 |
| Typical efficiency | 88 % |
| hold_up_time | 230 vac ms: 60; 115 vac ms: 16 |
| Input frequency | 47–63 Hz |
| Input range | 90–295 VAC / 127–417 VDC |
| Inrush current | 40 A |
| IP rating | IP64 |
| Operating temperature | -30–50 °C |
| Rated current | 2650 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 36 V |
| CC-region minimum voltage | 27 V |
| Output voltage | 36 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 95.4 W |
| Manufacturer warranty | 2 years |
| Weight | 0.52 kg |

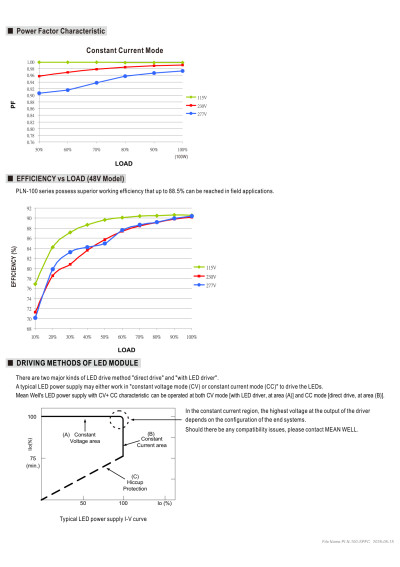

Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_PLN-100-36
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 60,1-100
- Output Current of CC power supply [mA]
- 2650
- CC operating window
- 27-36
- Min. output voltage of led driver (CC)
- 27
- Max. output voltage of led driver (CC)
- 36
- IP grade
- 64
- Length [mm]
- 200
- Width [mm]
- 70.5
- Height/thickness [mm]
- 35
- Warranty [years]
- 2
- Input voltage [V]
- 90-295
Specific References
- EAN13
- 4711287460765
- MPN
- PLN-100-36
