Mean Well HLP-40H-42 40.3 W CV+CC LED driver
Mean Well HLP-40H-42 40.3 W CV+CC LED driver – block diagram

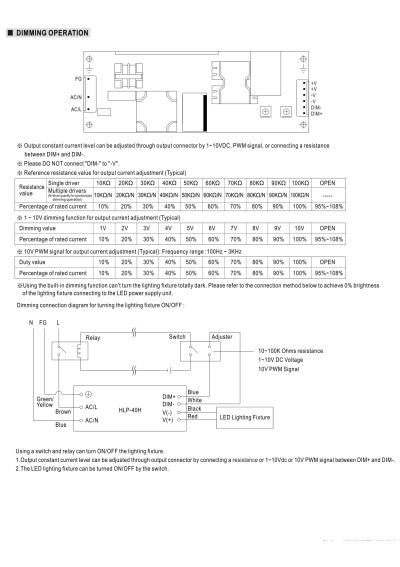

Mean Well HLP-40H-42 40.3 W CV+CC LED driver – dimming diagram

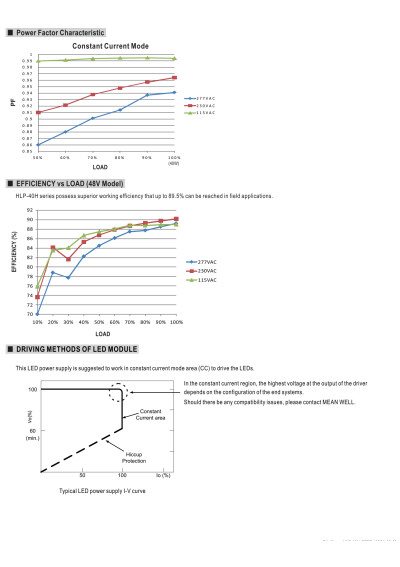

Mean Well HLP-40H-42 40.3 W CV+CC LED driver – power factor characteristic

Mean Well HLP-40H-42 40.3 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
113.81 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLP-40H-42

Mean Well HLP-40H-42 is a 40.3 W CV+CC LED driver with a 25.2 V–42 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 105.68 PLN
20+ 97.55 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLP-40H-42 – full product specification

Mean Well HLP-40H-42 is a HLP-40H-series power supply rated at 40.3 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 25.2 V–42 V DC.

Full technical specifications

Coolingfree-air convection
Dimensions147 × 53 × 27 mm
Document revisionHLP-40H-SPEC 2024-10-16
Typical efficiency89 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current50 A
Operating temperature-40–70 °C
Rated current960 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage42 V
CC-region minimum voltage25.2 V
Output voltage42 V
Over-voltage protection range48–58 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power40.3 W
Manufacturer warranty3 years
Weight0.2 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLP-40H-42

Data sheet

Power supply type
CV+CC
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
960
CC operating window
25.2-42
Min. output voltage of led driver (CC)
25.2
Max. output voltage of led driver (CC)
42
Length [mm]
147
Width [mm]
53
Height/thickness [mm]
27
Warranty [years]
3
Input voltage [V]
90-305

Specific References

EAN13
4711287462738
MPN
HLP-40H-42
New
