Mean Well HLG-60H-C700B 70 W CC LED driver 700 mA
Mean Well HLG-60H-C700B 70 W CC LED driver 700 mA – dimensions

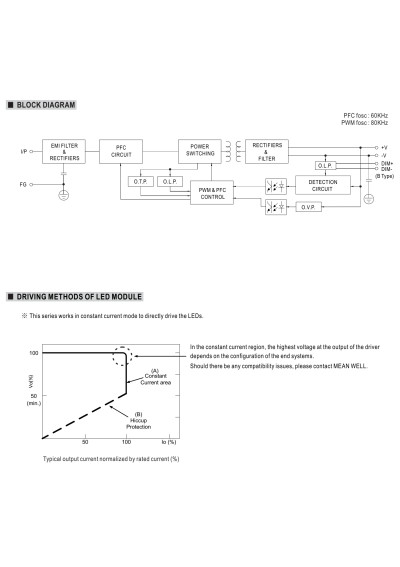

Mean Well HLG-60H-C700B 70 W CC LED driver 700 mA – block diagram

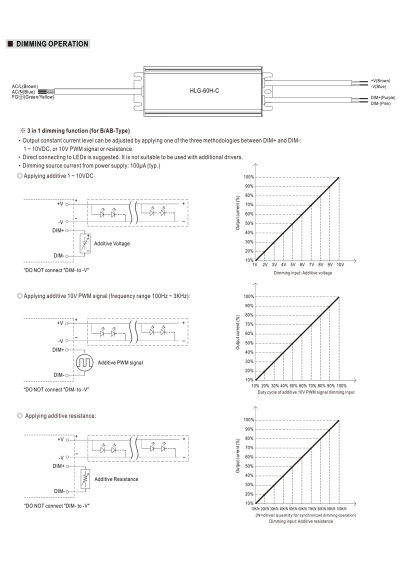

Mean Well HLG-60H-C700B 70 W CC LED driver 700 mA – dimming diagram

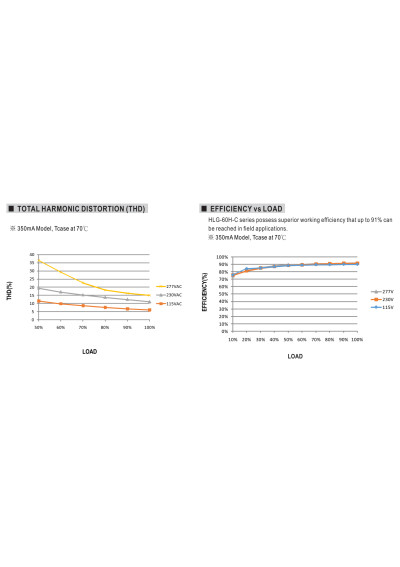

Mean Well HLG-60H-C700B 70 W CC LED driver 700 mA – efficiency versus load characteristic

Mean Well HLG-60H-C700B 70W 700mA 50–100V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
162.59 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-60H-C700B

Mean Well HLG-60H-C700B is a 70 W constant-current LED driver rated at 700 mA, with a 50 V–100 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 154.46 PLN
10+ 146.33 PLN
20+ 138.20 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-60H-C700B – full product specification

Mean Well HLG-60H-C700B is a HLG-60H-C-series power supply rated at 70 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 700 mA across a 50 V–100 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions171 × 61.5 × 36.8 mm
Document revisionHLG-60H-C-SPEC 2026-02-04
Typical efficiency90.5 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current60 A
IP ratingIP65
Rated current700 mA
Operating modeConstant Current (CC)
CC-region maximum voltage100 V
CC-region minimum voltage50 V
Over-voltage protection range120–140 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power70 W
Manufacturer warranty7 years
Weight0.73 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-60H-C700B

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
700
CC operating window
50-100
Min. output voltage of led driver (CC)
50
Max. output voltage of led driver (CC)
100
IP grade
65
Length [mm]
171
Width [mm]
61.5
Height/thickness [mm]
36,8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287452043
MPN
HLG-60H-C700B
New
