Mean Well ELG-200-12B 192 W CV+CC LED driver
Mean Well ELG-200-12B 192 W CV+CC LED driver – dimensions

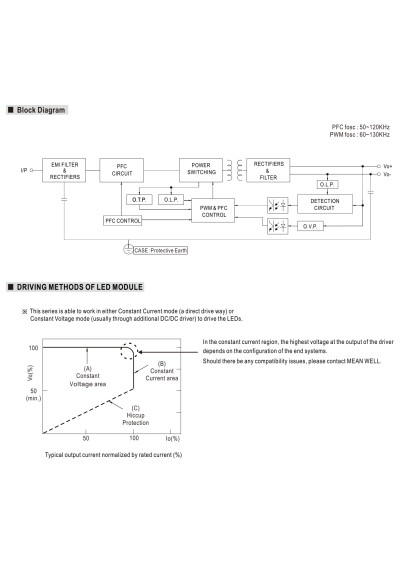

Mean Well ELG-200-12B 192 W CV+CC LED driver – block diagram

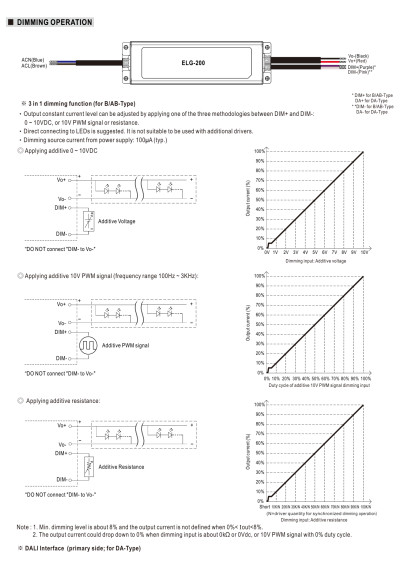

Mean Well ELG-200-12B 192 W CV+CC LED driver – dimming diagram

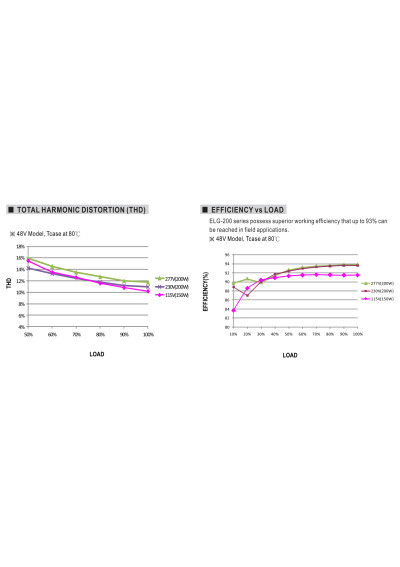

Mean Well ELG-200-12B 192 W CV+CC LED driver – efficiency versus load characteristic

Mean Well ELG-200-12B 192 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
235.76 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_ELG-200-12B

Mean Well ELG-200-12B is a 192 W CV+CC LED driver with a 6 V–12 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 227.63 PLN
10+ 219.50 PLN
20+ 203.24 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-200-12B – full product specification

Mean Well ELG-200-12B is a ELG-200-series power supply rated at 192 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 6 V–12 V DC.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
Dimensions244 × 71 × 37.5 mm
Document revisionELG-200-SPEC 2026-07-06
Typical efficiency90 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current60 A
IP ratingIP65
Rated current16000 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage12 V
CC-region minimum voltage6 V
Output voltage12 V
Over-voltage protection range13.5–18 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power192 W
Manufacturer warranty5 years
Weight1.22 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-200-12B

Data sheet

Power supply type
CV+CC
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
16000
CC operating window
6-12
Min. output voltage of led driver (CC)
6
Max. output voltage of led driver (CC)
12
IP grade
65
Length [mm]
244
Width [mm]
71
Height/thickness [mm]
37.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287441924
MPN
ELG-200-12B
