Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – block diagram Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – dimming diagram Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – efficiency versus load characteristic Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – static characteristic
Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA
Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – block diagram

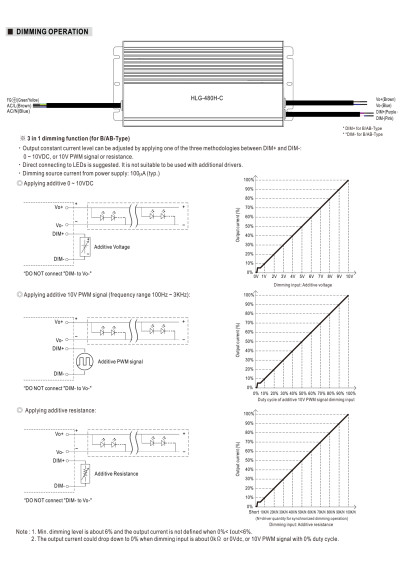

Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – dimming diagram

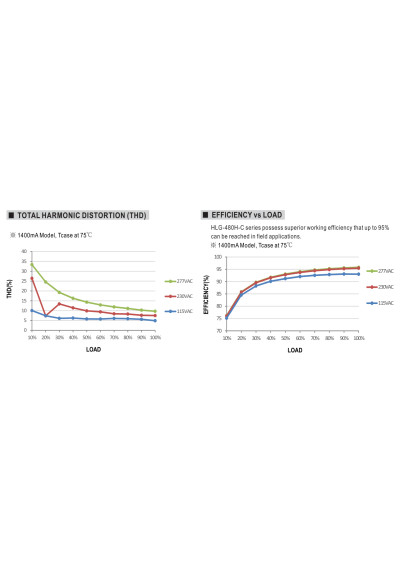

Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – efficiency versus load characteristic

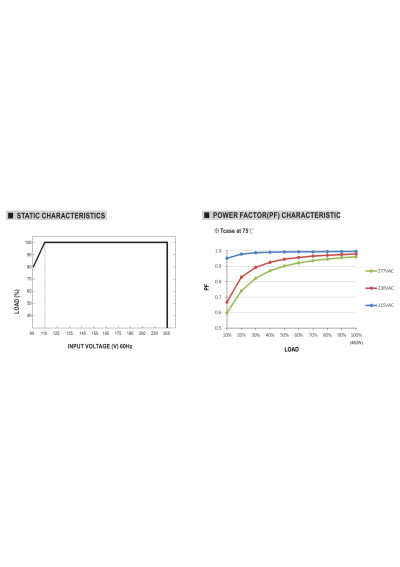

Mean Well HLG-480H-C2100A 481 W CC LED driver 2100 mA – static characteristic

Mean Well HLG-480H-C2100A 481W 2100mA 114–229V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
642.27 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-480H-C2100A

Mean Well HLG-480H-C2100A is a 481 W constant-current LED driver rated at 2100 mA, with a 114 V–229 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 609.75 PLN
10+ 585.36 PLN
20+ 544.71 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-480H-C2100A – full product specification

Mean Well HLG-480H-C2100A is a HLG-480H-C-series power supply rated at 481 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2100 mA across a 114 V–229 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions262 × 125 × 43.8 mm
Document revisionHLG-480H-C-SPEC 2026-02-04
Typical efficiency95 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current35 A
IP ratingIP65
Rated current2100 mA
Operating modeConstant Current (CC)
CC-region maximum voltage229 V
CC-region minimum voltage114 V
Over-voltage protection range289–322 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power481 W
Manufacturer warranty7 years
Weight2.8 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-480H-C2100A

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
250-499
Output Current of CC power supply [mA]
2100
CC operating window
114-229
Min. output voltage of led driver (CC)
114
Max. output voltage of led driver (CC)
229
IP grade
65
Length [mm]
262
Width [mm]
125
Height/thickness [mm]
43.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287452999
MPN
HLG-480H-C2100A
