Mean Well HLG-480H-54 480.6 W CV+CC LED driver
Mean Well HLG-480H-54 is a 480.6 W CV+CC LED driver with a 27 V–54 V constant-current region.
Mean Well HLG-480H-54 480.6 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
642.27 PLN
Shipment in 8-10 working days
tm_HLG-480H-54
Mean Well HLG-480H-54 is a 480.6 W CV+CC LED driver with a 27 V–54 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
HLG-480H-54 – full product specification
Mean Well HLG-480H-54 is a HLG-480H-series power supply rated at 480.6 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 27 V–54 V DC.
Full technical specifications

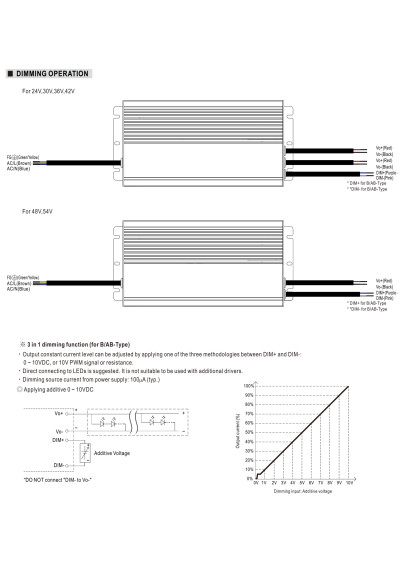

| 3-in-1 dimming | Yes |
|---|---|
| Dimensions | 262 × 125 × 43.8 mm |
| Document revision | HLG-480H-SPEC 2026-02-04 |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 35 A |
| IP rating | IP65 |
| Rated current | 8900 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 54 V |
| CC-region minimum voltage | 27 V |
| Output voltage | 54 V |
| Over-voltage protection range | 60–70 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 480.6 W |
| Manufacturer warranty | 7 years |
| Weight | 2.8 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_HLG-480H-54
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 250-499
- Output Current of CC power supply [mA]
- 8900
- CC operating window
- 27-54
- Min. output voltage of led driver (CC)
- 27
- Max. output voltage of led driver (CC)
- 54
- IP grade
- 65
- Length [mm]
- 262
- Width [mm]
- 125
- Height/thickness [mm]
- 43.8
- Warranty [years]
- 7
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287451602
- MPN
- HLG-480H-54
