Mean Well HLG-320H-C2800B 319.2 W CC LED driver 2800 mA
Mean Well HLG-320H-C2800B 319.2 W CC LED driver 2800 mA – dimensions

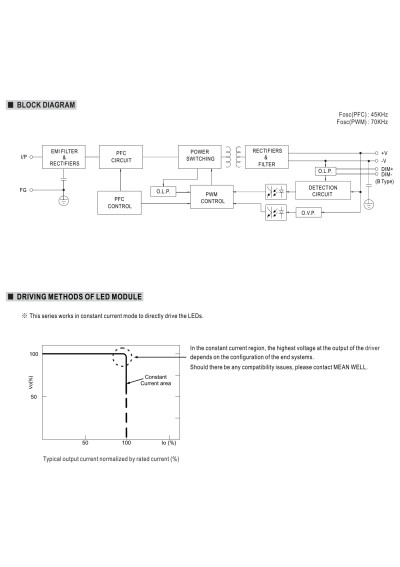

Mean Well HLG-320H-C2800B 319.2 W CC LED driver 2800 mA – block diagram

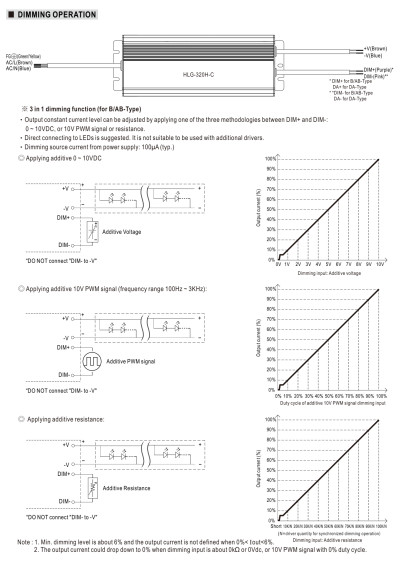

Mean Well HLG-320H-C2800B 319.2 W CC LED driver 2800 mA – dimming diagram

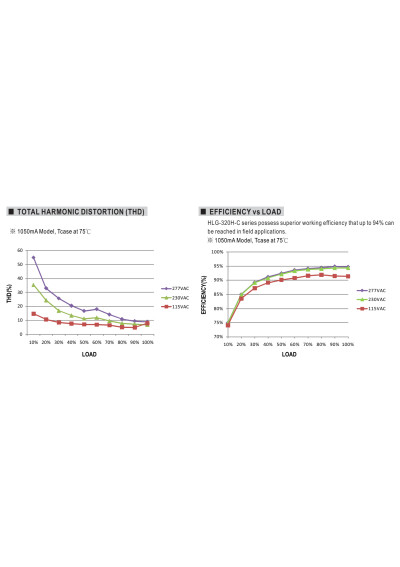

Mean Well HLG-320H-C2800B 319.2 W CC LED driver 2800 mA – efficiency versus load characteristic

Mean Well HLG-320H-C2800B 319.2W 2800mA 57–114V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
447.15 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-320H-C2800B

Mean Well HLG-320H-C2800B is a 319.2 W constant-current LED driver rated at 2800 mA, with a 57 V–114 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 422.76 PLN
10+ 406.50 PLN
20+ 382.11 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-320H-C2800B – full product specification

Mean Well HLG-320H-C2800B is a HLG-320H-C-series power supply rated at 319.2 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2800 mA across a 57 V–114 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions252 × 90 × 43.8 mm
Document revisionHLG-320H-C-SPEC 2026-02-04
Typical efficiency94 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–417 VDC
Inrush current70 A
IP ratingIP65
Rated current2800 mA
Operating modeConstant Current (CC)
CC-region maximum voltage114 V
CC-region minimum voltage57 V
Over-voltage protection range120–132 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power319.2 W
Manufacturer warranty7 years
Weight1.88 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-320H-C2800B

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
250-499
Output Current of CC power supply [mA]
2800
CC operating window
57-114
Min. output voltage of led driver (CC)
57
Max. output voltage of led driver (CC)
114
IP grade
65
Length [mm]
252
Width [mm]
90
Height/thickness [mm]
43.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287452784
MPN
HLG-320H-C2800B
