Mean Well HLG-240H-C1050AB 249.9 W CC LED driver 1050 mA
Mean Well HLG-240H-C1050AB 249.9 W CC LED driver 1050 mA – block diagram

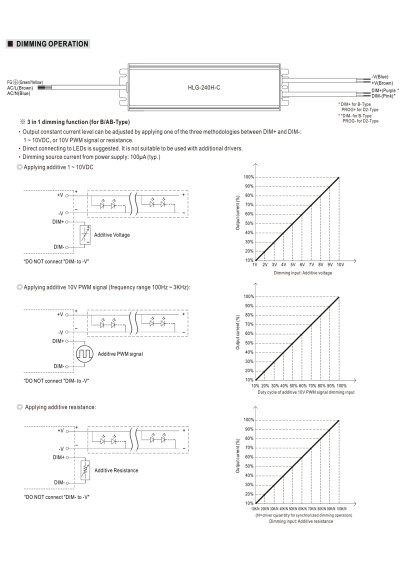

Mean Well HLG-240H-C1050AB 249.9 W CC LED driver 1050 mA – dimming diagram

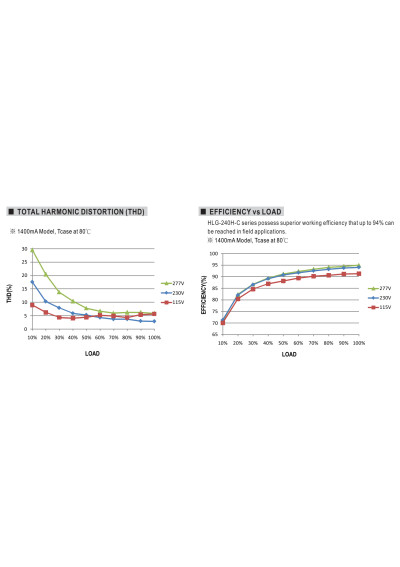

Mean Well HLG-240H-C1050AB 249.9 W CC LED driver 1050 mA – efficiency versus load characteristic

Mean Well HLG-240H-C1050AB 249.9W 1050mA 119–238V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
341.46 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-240H-C1050AB

Mean Well HLG-240H-C1050AB is a 249.9 W constant-current LED driver rated at 1050 mA, with a 119 V–238 V output-voltage region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-240H-C1050AB – full product specification

Mean Well HLG-240H-C1050AB is a HLG-240H-C-series power supply rated at 249.9 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1050 mA across a 119 V–238 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions244.2 × 68 × 38.8 mm
Document revisionHLG-240H-C-SPEC 2026-02-04
Typical efficiency93.5 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current75 A
IP ratingIP65
Rated current1050 mA
Operating modeConstant Current (CC)
CC-region maximum voltage238 V
CC-region minimum voltage119 V
Over-voltage protection range250–275 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power249.9 W
Manufacturer warranty7 years
Weight1.3 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-240H-C1050AB

Data sheet

Power supply type
Constant Current (CC)
Output Current of CC power supply [mA]
1050
CC operating window
119-238
Min. output voltage of led driver (CC)
119
Max. output voltage of led driver (CC)
238
IP grade
65
Length [mm]
244.2
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287452371
MPN
HLG-240H-C1050AB
