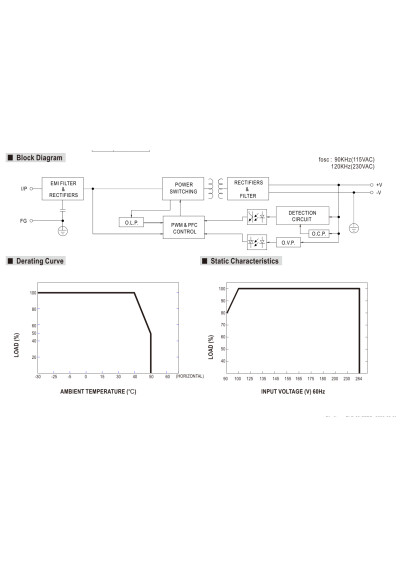

Mean Well PLC-60-24 60 W CC LED driver 2500 mA – block diagram

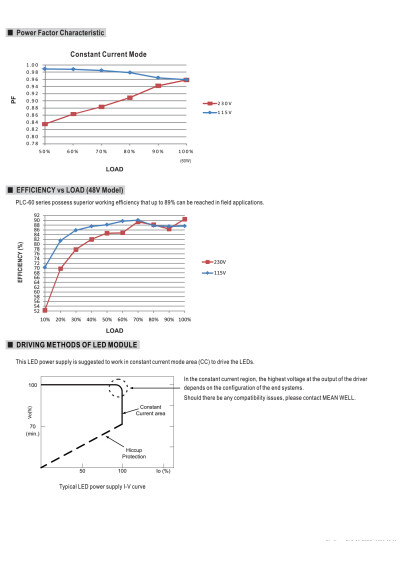

Mean Well PLC-60-24 60 W CC LED driver 2500 mA – power factor characteristic

Mean Well PLC-60-24 60W 2500mA 16.8–24V Constant Current (CC) LED driver

Name: Mean Well PLC-60-24 60W 2500mA 16.8–24V Constant Current (CC) LED driver
Brand: Mean Well
SKU: tm_PLC-60-24
Price: 203.24 PLN
Availability: InStock

Minimum order quantity: 1. Order in multiples of 1.

203.24 PLN

Shipment in 1-2 business days

Category: Constant Current (CC)

Reference: tm_PLC-60-24

Mean Well PLC-60-24 is a 60 W constant-current LED driver rated at 2500 mA, with a 16.8 V–24 V output-voltage region.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

PLC-60-24 – full product specification

Mean Well PLC-60-24 is a PLC-60-series power supply rated at 60 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2500 mA across a 16.8 V–24 V DC voltage region.

Full technical specifications

Fully isolated enclosure	Yes
Enclosure material	plastic
Cooling	free-air convection
Dimensions	181.5 × 62 × 35 mm
Document revision	PLC-60-SPEC 2026-02-09
Typical efficiency	87 %
Input frequency	47–63 Hz
Input range	90–264 VAC / 127–370 VDC
Inrush current	35 A
Operating temperature	-30–50 °C
Rated current	2500 mA
Operating mode	Constant Current (CC)
CC-region maximum voltage	24 V
CC-region minimum voltage	16.8 V
Output voltage	24 V
Over-voltage protection range	28–32 V
Over-voltage protection	Yes
Short-circuit protection	Yes
Rated power	60 W
Manufacturer warranty	2 years
Weight	0.41 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the PLC-60 series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
