Mean Well HLG-120H-C350B 150.5 W CC LED driver 350 mA
Mean Well HLG-120H-C350B 150.5 W CC LED driver 350 mA – dimensions

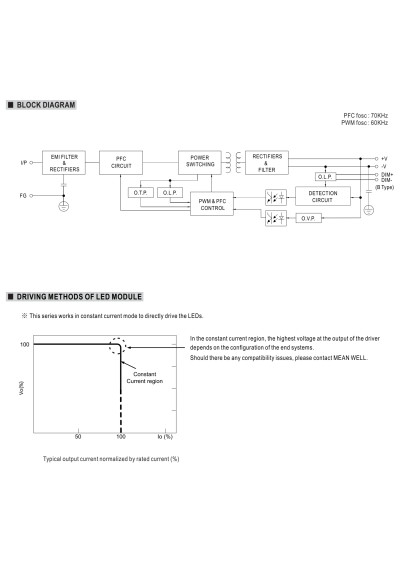

Mean Well HLG-120H-C350B 150.5 W CC LED driver 350 mA – block diagram
Mean Well HLG-120H-C350B 150.5 W CC LED driver 350 mA – dimming diagram

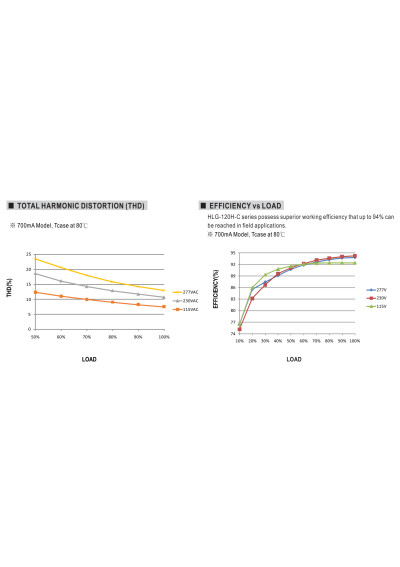

Mean Well HLG-120H-C350B 150.5 W CC LED driver 350 mA – efficiency versus load characteristic

Mean Well HLG-120H-C350B 150.5W 350mA 215–430V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
243.89 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-120H-C350B

Mean Well HLG-120H-C350B is a 150.5 W constant-current LED driver rated at 350 mA, with a 215 V–430 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 235.76 PLN
10+ 227.63 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-120H-C350B – full product specification

Mean Well HLG-120H-C350B is a HLG-120H-C-series power supply rated at 150.5 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 350 mA across a 215 V–430 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct8 %
Dimensions220 × 68 × 38.8 mm
Document revisionHLG-120H-C-SPEC 2026-02-04
Typical efficiency94 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current50 A
IP ratingIP65
Rated current350 mA
Operating modeConstant Current (CC)
CC-region maximum voltage430 V
CC-region minimum voltage215 V
Over-voltage protection range475–495 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power150.5 W
Manufacturer warranty7 years
Weight1.04 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-120H-C350B

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
350
CC operating window
215-430
Min. output voltage of led driver (CC)
215
Max. output voltage of led driver (CC)
430
IP grade
65
Length [mm]
220
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287452173
MPN
HLG-120H-C350B
