Mean Well HBGC-300-H-A 301.6 W constant-power LED driver Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – block diagram Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – dimming diagram Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – efficiency versus load characteristic Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – load versus temperature characteristic
Mean Well HBGC-300-H-A 301.6 W constant-power LED driver
Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – block diagram

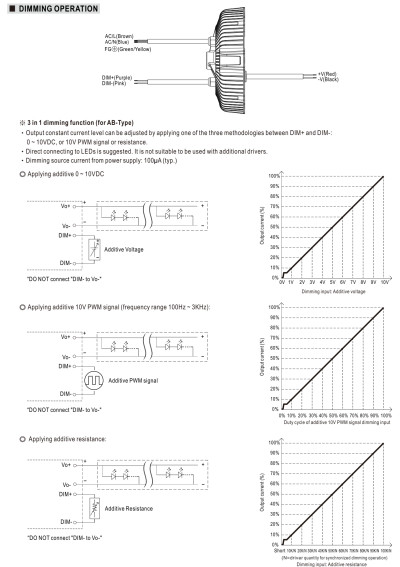

Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – dimming diagram

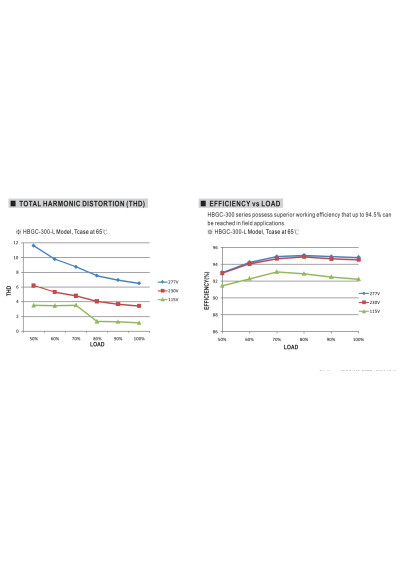

Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – efficiency versus load characteristic

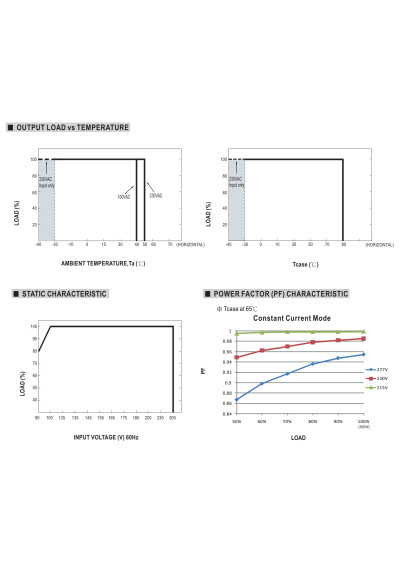

Mean Well HBGC-300-H-A 301.6 W constant-power LED driver – load versus temperature characteristic

Mean Well HBGC-300-H-A 301.6 W constant-power LED driver

Minimum order quantity: 1. Order in multiples of 1.
471.54 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HBGC-300-H-A

Mean Well HBGC-300-H-A is a 301.6 W constant-power LED driver with a 5200 mA–8670 mA current-setting envelope.

Volume discounts

Quantity Discounted price
5+ 447.15 PLN
10+ 430.89 PLN
20+ 398.37 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HBGC-300-H-A – full product specification

Mean Well HBGC-300-H-A is a HBGC-300-series power supply rated at 301.6 W. The parameters below come from the exact official manufacturer datasheet.

Constant-power characteristic

Full power is available across a 5200 mA–8670 mA current envelope and 29 V–58 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Document revisionHBGC-300-SPEC 2024-10-11
Typical efficiency92.5 %
Input frequency47–63 Hz
Inrush current45 A
IP ratingIP67
Maximum adjustable current8670 mA
Minimum adjustable current5200 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage58 V
CC-region minimum voltage29 V
Over-voltage protection range61–78 V
Constant-power characteristicYes
Over-voltage protectionYes
Short-circuit protectionYes
Rated power301.6 W
Manufacturer warranty5 years
Weight2.2 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HBGC-300-H-A

Data sheet

Power supply type
CV+CC
Rated power [W]
250-499
IP grade
67
Warranty [years]
5
Min. current of CC driver [mA]
5200
Max. current of CC driver [mA]
8670

Specific References

EAN13
4711287480848
MPN
HBGC-300-H-A
