Mean Well HBG-100P-60A 96 W CV+CC LED driver
Mean Well HBG-100P-60A is a 96 W CV+CC LED driver with a 36 V–60 V constant-current region.
Mean Well HBG-100P-60A 96 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
154.46 PLN
Shipment in 8-10 working days
tm_HBG-100P-60A
Mean Well HBG-100P-60A is a 96 W CV+CC LED driver with a 36 V–60 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
HBG-100P-60A – full product specification
Mean Well HBG-100P-60A is a HBG-100P-series power supply rated at 96 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 36 V–60 V DC.
Full technical specifications

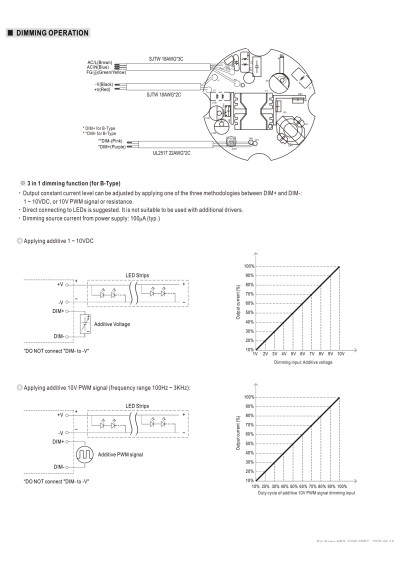

| 3-in-1 dimming | Yes |
|---|---|
| current_ripple_pct | 5 % |
| Document revision | HBG-100P-SPEC 2026-06-15 |

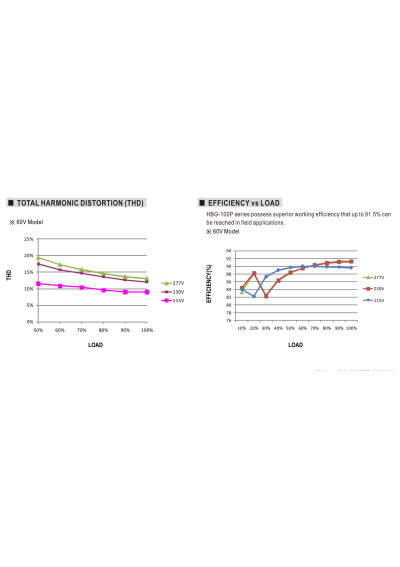

| Typical efficiency | 91.5 % |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 60 A |
| Rated current | 1600 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 60 V |
| CC-region minimum voltage | 36 V |
| Output voltage | 60 V |
| Over-voltage protection range | 65–75 V |
| Over-voltage protection | Yes |
| Rated power | 96 W |
| Manufacturer warranty | 5 years |
| Weight | 0.3 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_HBG-100P-60A
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 60,1-100
- Output Current of CC power supply [mA]
- 1600
- CC operating window
- 36-60
- Min. output voltage of led driver (CC)
- 36
- Max. output voltage of led driver (CC)
- 60
- Warranty [years]
- 5
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287448114
- MPN
- HBG-100P-60A
