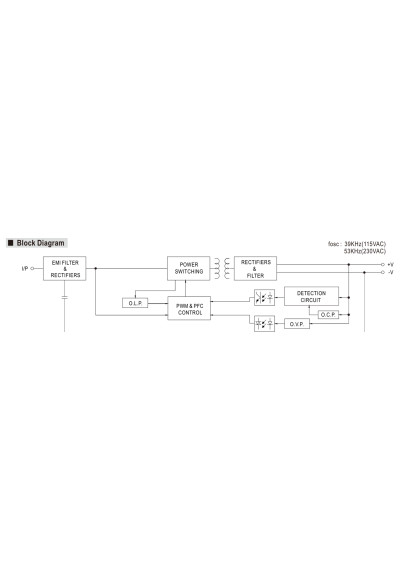

Mean Well PLC-30-48 29.7 W CC LED driver 3300 mA – block diagram

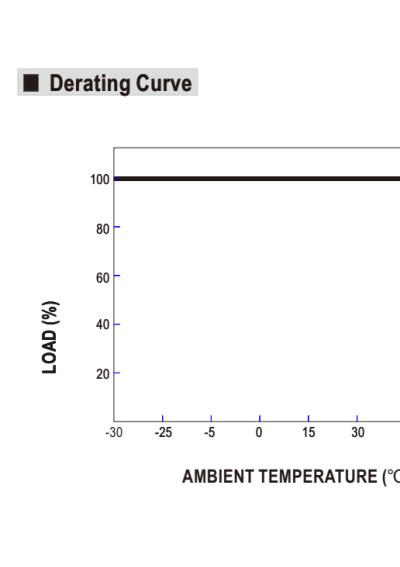

Mean Well PLC-30-48 29.7 W CC LED driver 3300 mA – derating characteristic

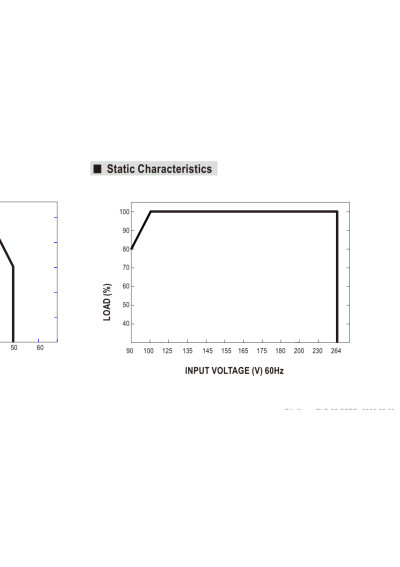

Mean Well PLC-30-48 29.7 W CC LED driver 3300 mA – static characteristic

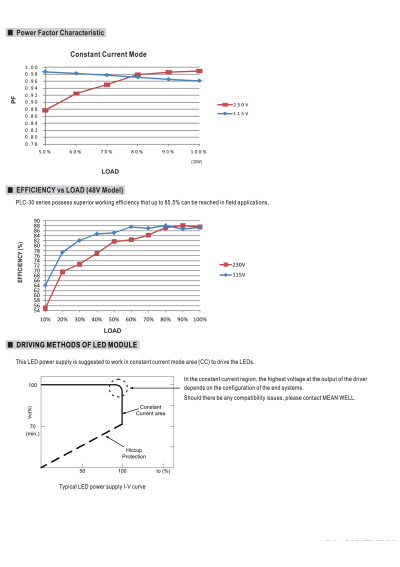

Mean Well PLC-30-48 29.7 W CC LED driver 3300 mA – power factor characteristic

Mean Well PLC-30-48 29.7W 3300mA 33.6–48V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
113.81 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_PLC-30-48

Mean Well PLC-30-48 is a 29.7 W constant-current LED driver rated at 3300 mA, with a 33.6 V–48 V output-voltage region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PLC-30-48 – full product specification

Mean Well PLC-30-48 is a PLC-30-series power supply rated at 29.7 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 3300 mA across a 33.6 V–48 V DC voltage region.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions160 × 46 × 30 mm
Document revisionPLC-30-SPEC 2026-02-09
Typical efficiency85.5 %
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current35 A
Operating temperature-30–50 °C
Rated current3300 mA
Operating modeConstant Current (CC)
CC-region maximum voltage48 V
CC-region minimum voltage33.6 V
Over-voltage protection range10–14 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power29.7 W
Manufacturer warranty2 years
Weight0.2 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the PLC-30 series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_PLC-30-48

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
20,1-30
Output Current of CC power supply [mA]
3300
CC operating window
33.6-48
Min. output voltage of led driver (CC)
33.6
Max. output voltage of led driver (CC)
48
Length [mm]
160
Width [mm]
46
Height/thickness [mm]
30
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287460277
MPN
PLC-30-48
