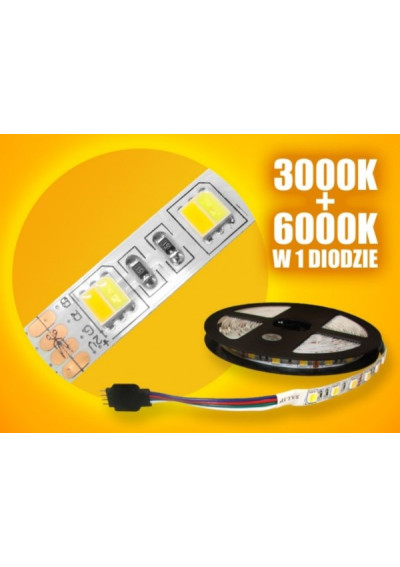

LED strip SMD 5050 10mm 12V 14.4W/m 2700-6500K 60LED/m IP20 5m

LED Strip - Construction

The strip uses SMD technology with LEDs in a 5050 package. The underside has factory-applied double-sided adhesive tape to aid installation on a suitably prepared surface.

Control of LED strip

The strip requires a PWM controller supporting the 2 control channels used by the CCT configuration.

Important information

The stated power is a rated or theoretical value based on the parameters of the components used. Actual power consumption may be lower due to component tolerances, voltage drop and operating conditions.

Power and installation

The strip does not require an additional power-injection point when its length does not exceed 5m. Above this length, consider starting the next separately powered run, supplying the run at its far end, or adding another power point after the indicated length.

The 5m value is based on the electrical properties of the strip PCB. It indicates the length at which supply-voltage drop should not cause a noticeable reduction in LED brightness along the length of strip. Above this length, a brightness difference may become visible. If it remains acceptable to the end customer, the final power-feed arrangement is the responsibility of the installation designer or user.

Light emitted by LED strip

A CCT LED strip uses two independent channels of native white light — warm white and cool white — produced by phosphor-converted LEDs. Smooth mixing of both channels enables color temperature adjustment from 2700 to 6500, allowing the light to be adapted to the time of day, the character of the interior, and the activity being performed.

Warm white light promotes relaxation and creates a cozy atmosphere, while cooler light enhances the perception of brightness and is well suited for work or tasks requiring precision. Intermediate settings make it possible to achieve virtually any color temperature between 2700 and 6500.

The strip requires a compatible 2-channel CCT controller that independently regulates the warm white and cool white channels, most commonly using PWM modulation. A suitable controller enables smooth adjustment of the color temperature as well as brightness control of the entire installation.

CCT LED strips are designed for both functional and ambient lighting of interiors, furniture, ceilings, recesses, and architectural features. A single system can provide both relaxing warm white and stimulating cool white light without the need for several separate light sources. They are therefore an excellent choice for customers who want the flexibility to change the color temperature, as well as for those who are unsure which color temperature will be best for their application. Luminous flux of the LED strip is 720lm/m.

LED strip - product overview

The strip operates at 12V and has a density of 60LED/m with an IP20 ingress-protection rating.

Sales unit of led strip

The sales unit includes a factory-prepared reel of LED strip with a length of 5m.

LED strip - power supply selection

The strip requires a power supply with an output voltage of 12V. Guidance: select a power supply with an optimum 30% power reserve above the LED strip demand.

LED strip 5050 WW+CW 5m/300diod – flexible lighting for any mood

Upgrade your interior with a reliable, premium strip that lets you switch between warm and cool white. The LED strip 5050 WW+CW 5m/300diod uses 300 LEDs to deliver bright, even light for everyday comfort. It is a smart choice for modern homes, offices, and display lighting.

How WW+CW technology works

This strip combines two white tones: warm white and cool white. You can create a cozy evening atmosphere or a crisp task light. To control the color mix, use a compatible CCT controller and a 12V power supply. The result is lighting that matches your room and your routine.

Key benefits of LED strip 5050 WW+CW 5m/300diod

• Two white tones: 3000K + 6500K for flexible ambiance.
• High brightness: 600–720 lm/m for clear, practical lighting.
• Dense LEDs: 60 LEDs/m for smooth, uniform illumination.
• Easy fit: 10mm width works with many profiles and channels.
• Indoor use: IP20 rating for dry rooms and furniture lighting.

Specifications – LED strip 5050 dual white

Where to use it

• Kitchen counters and under-cabinet lighting.
• Ceiling coves and suspended ceilings.
• Wardrobes, shelves, and display units.
• Workspaces that need adjustable white light.

FAQ – LED strip 5050 WW+CW 5m/300diod

Do I need a special controller?

Yes, use a CCT controller to mix warm and cool channels smoothly.

Is it suitable for bathrooms?

IP20 is for dry areas. For wet zones, choose a higher IP version.

What power supply should I choose?

Pick a 12V supply with extra headroom above total wattage.

Choose premium lighting that looks great and works every day. Order the LED strip 5050 WW+CW 5m/300diod now and refresh your space.
