LEDownia RasterPRO HE 418 4000K – Tridonic LED Retrofit Kit

LEDownia RasterPRO HE 4x18W

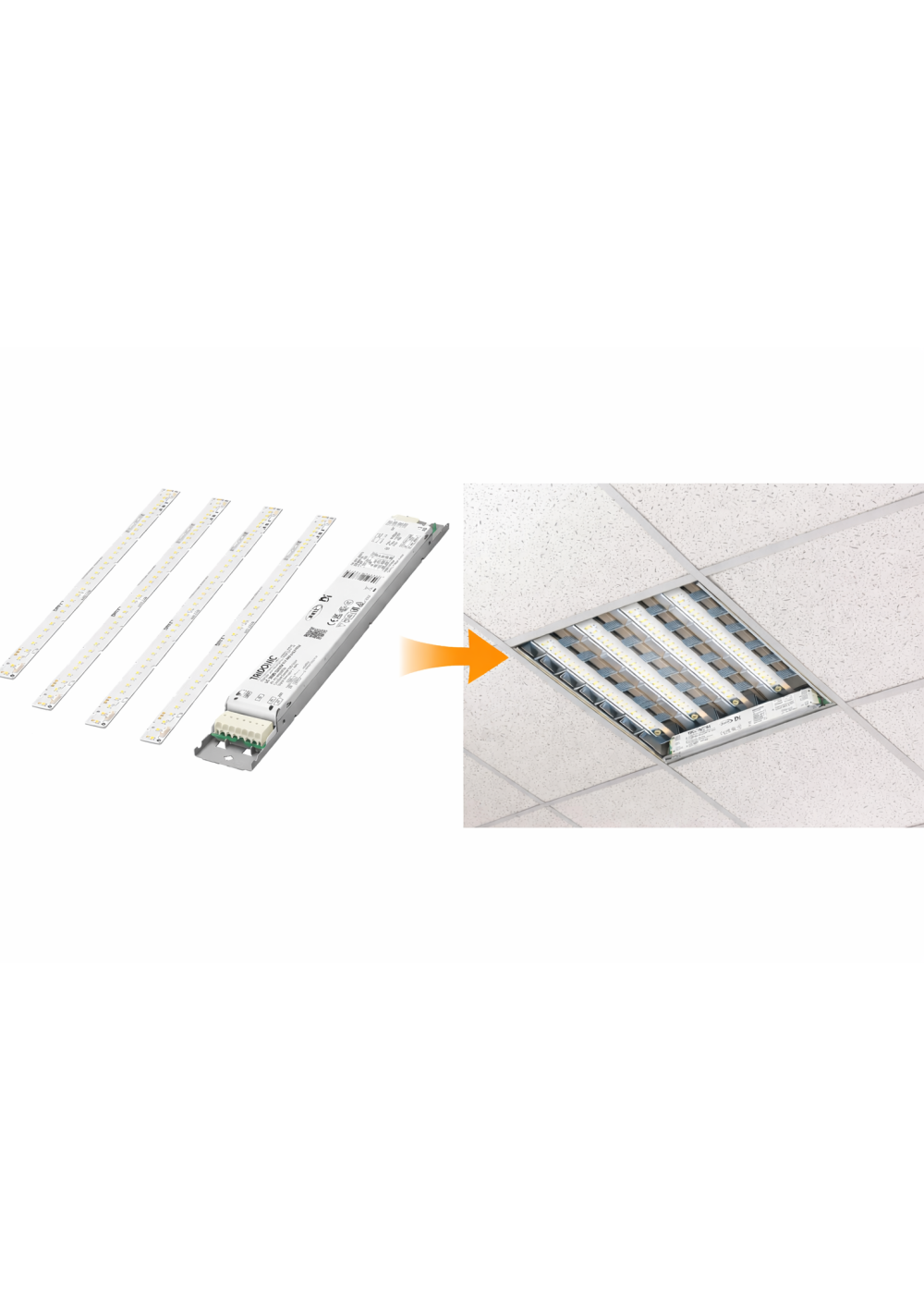

• retrofit kit for converting a 4x18W louvre luminaire to high-efficiency LED

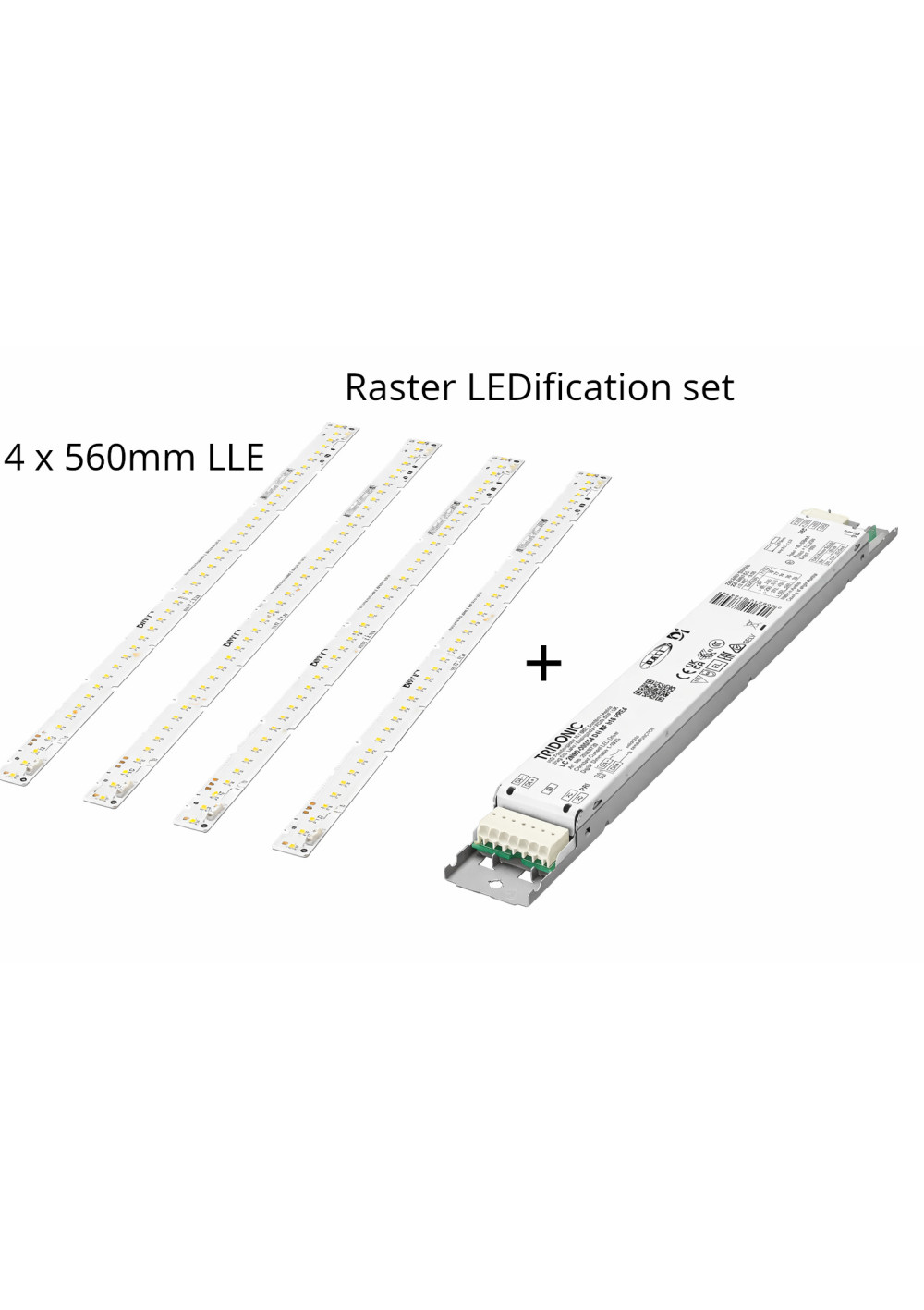

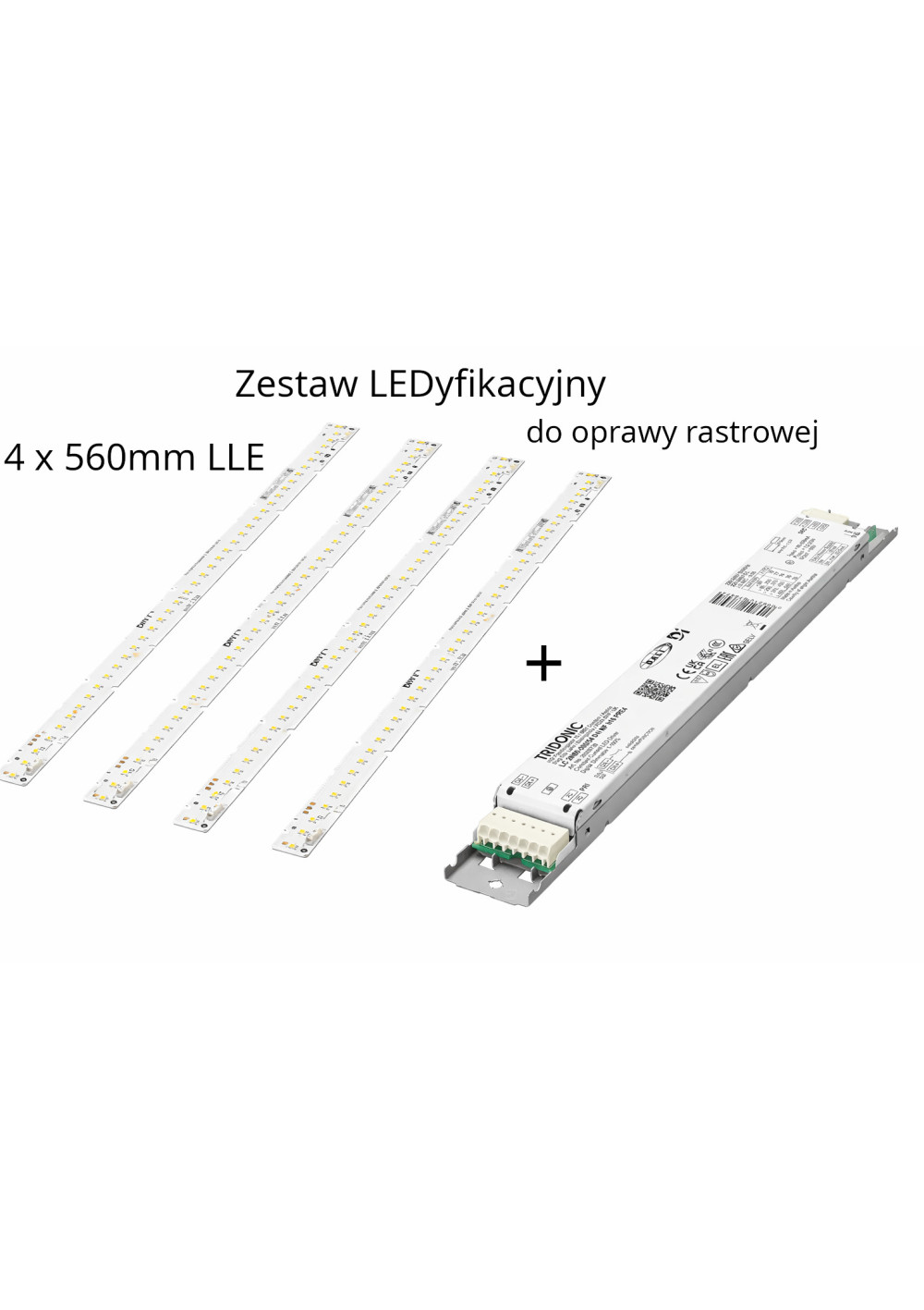

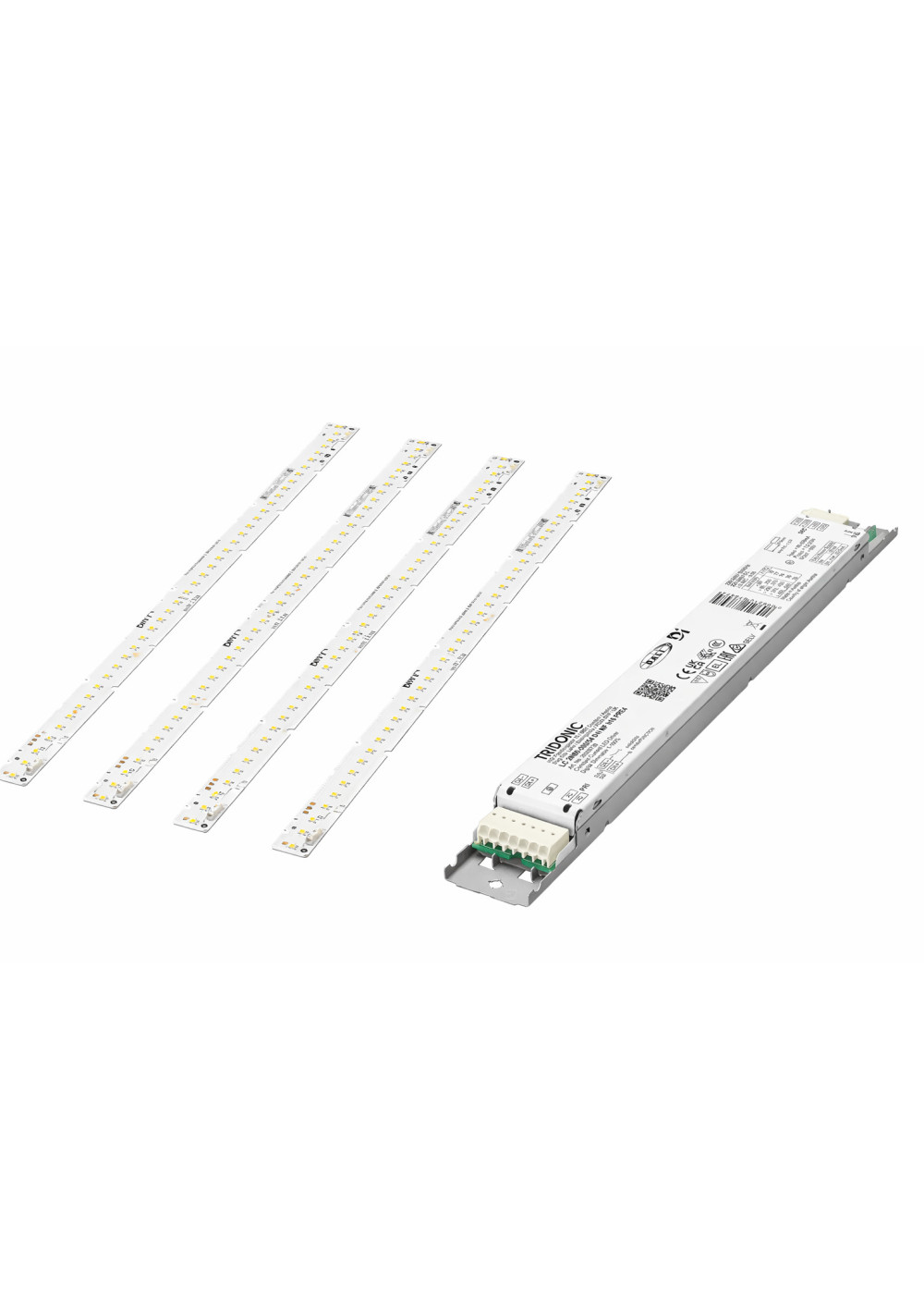

• 4 x Tridonic LLE 20x560mm 840 HV SNC4 modules

• Tridonic driver specially matched to the kit parameters

• HE (High Efficiency) operating mode

• high module efficacy: 206 lm/W at 100 mA

• lower power consumption than classic fluorescent fittings

• retrofit without replacing the entire luminaire

• professional-grade branded LED components

Technical data

• product type: LED retrofit kit for 4x18W louvre luminaire

• LED modules: 4 x Tridonic LLE 20x560mm 2400lm 840 HV SNC4

• light colour: 4000 K

• CRI: >80

• total RasterPRO HE 418 luminous flux: approx. 3488 lm

• module efficacy at 100 mA: 206 lm/W

• operating current: 100 mA

• module voltage: 40.3 V

• maximum voltage: 44.9 V

• Max. final power (including 91,5% power supply efficiency): 19,63W

• driver: Tridonic, matched to the kit parameters

• operating mode: HE

Applications

This kit is suitable for retrofitting:

• office louvre luminaires,

• schools and educational facilities,

• corridors and circulation areas,

• technical and back-of-house spaces,

• service and commercial buildings,

• projects where keeping the existing luminaire housing is cost-effective.

Why it pays off

In a classic 4x18W fluorescent fitting, a significant share of energy is lost in older control gear and a less efficient optical layout. Retrofit allows you to use the existing luminaire body as a base and rebuild it into a more efficient LED system based on Tridonic components. The result is lower energy use, modern lighting technology and an upgrade with clear economic justification.
