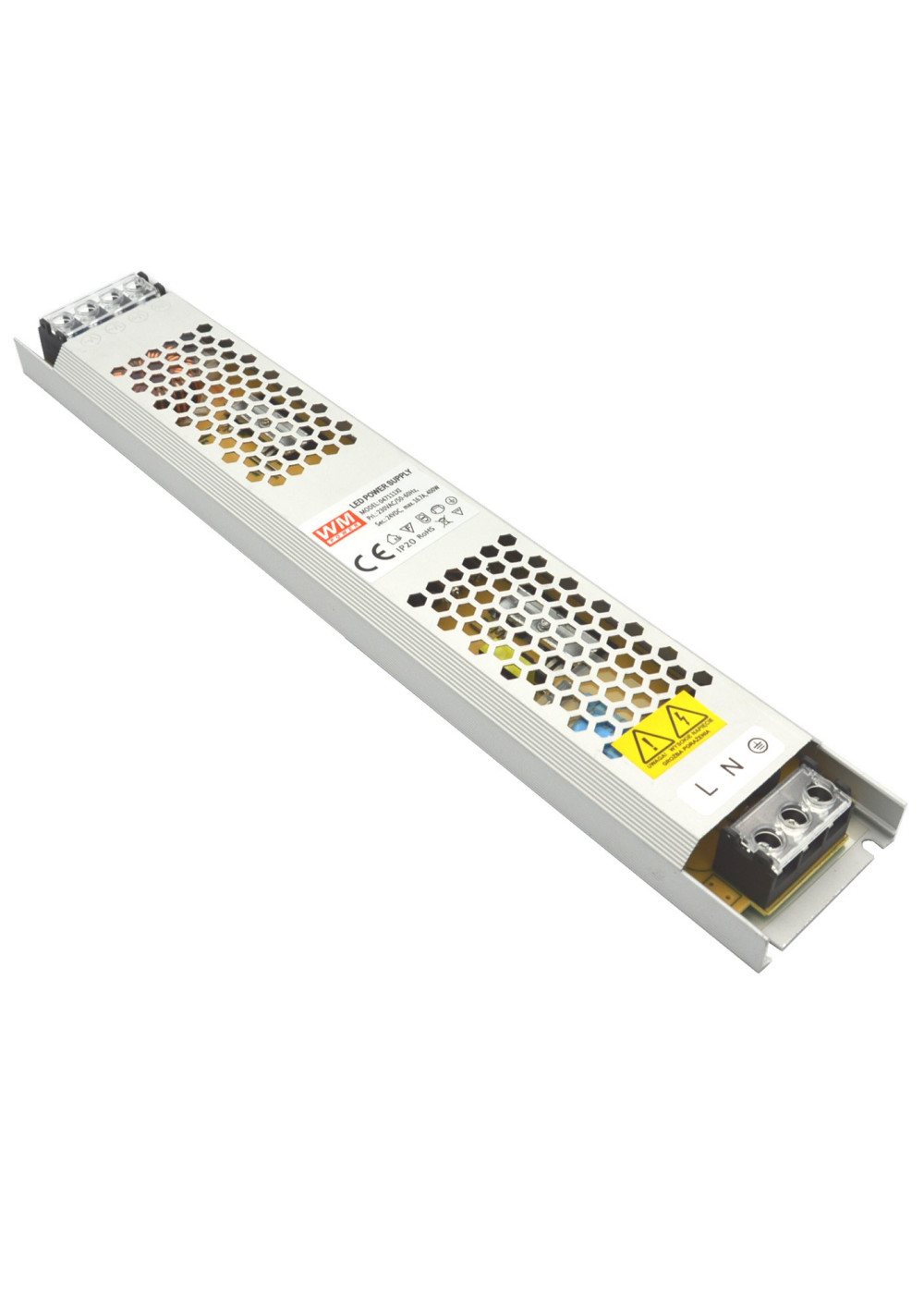

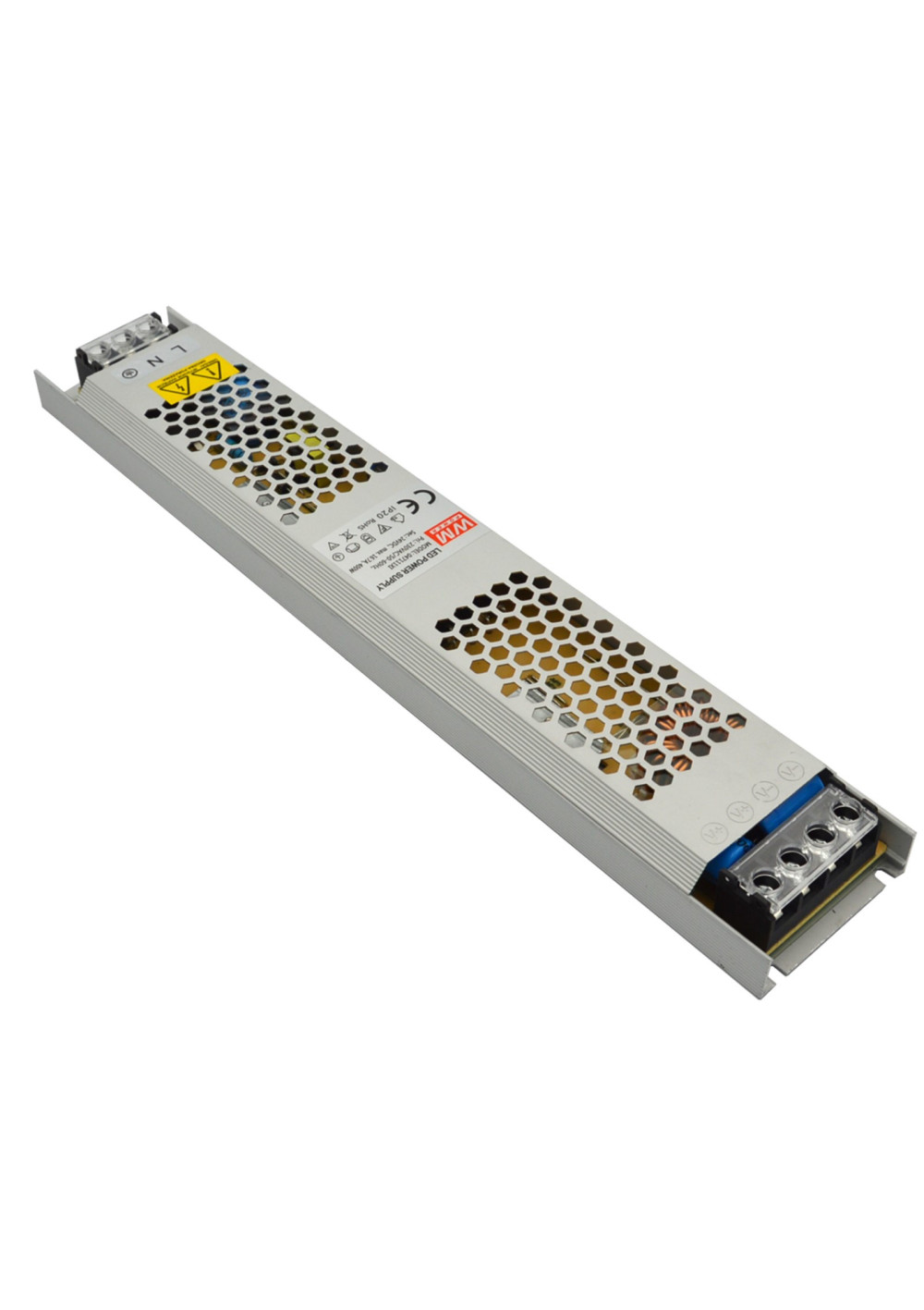

LED power supply Ultra Slim 24V 400W
400 W CV LED power supply with a 24 V DC / 16.67 A output and a 200–240 V AC (nominal 230 V AC) input. Its slim aluminium housing measures 307 × 55 × 25 mm and has an IP20 rating. For LED installations powered by a constant voltage.
LED power supply Ultra Slim 24V 400W
60.15 PLN
Shipment in 1-2 business days
001x047111
400 W CV LED power supply with a 24 V DC / 16.67 A output and a 200–240 V AC (nominal 230 V AC) input. Its slim aluminium housing measures 307 × 55 × 25 mm and has an IP20 rating. For LED installations powered by a constant voltage.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
This 400 W constant-voltage (CV) LED power supply provides a 24 V DC output and a rated output current of 16.67 A. It is intended for LED loads requiring this DC voltage. Its input voltage is 200–240 V AC (nominal 230 V AC).
Key properties
The CV output maintains 24 V DC; the load rating is defined by its 400 W power and 16.67 A current limits. The narrow aluminium housing and its dimensions support sizing the available installation space.
Technical specifications
| Input voltage | 200–240 V AC (nominal 230 V AC) |
|---|---|
| Output voltage | 24 V DC |
| Output current | 16.67 A |
| Rated power | 400 W |
| Power factor PF | .6 |
| Product dimensions | 307 × 55 × 25 mm |
| Single product gross weight | .31 kg |
| Output mode | Constant voltage (CV) |
| IP protection rating | IP20 |
| Housing material | Aluminium |
Installation / application
The LED strip or module must be rated for 24 V DC. Select the load using both the output power and current listed in the table. IP20 is intended for indoor use without protection against water.
Additional information
CV identifies a constant-voltage output. This power supply is not a CC driver that maintains a specified LED current. The table lists the gross mass of a single product.
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
001x047111
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 400 W
- Output Voltage of CV power supply [V]
- 24 V DC
- Maximum output current of CV led driver
- 16.67 A
- Dimensions (L x W x H) [mm]
- 307 × 55 × 25 mm
- IP grade
- IP20
- Case material
- Aluminium
- Length [mm]
- 307
- Width [mm]
- 55
- Height/thickness [mm]
- 25
- Input voltage [V]
- 200-240
- Power factor
- 0.6
