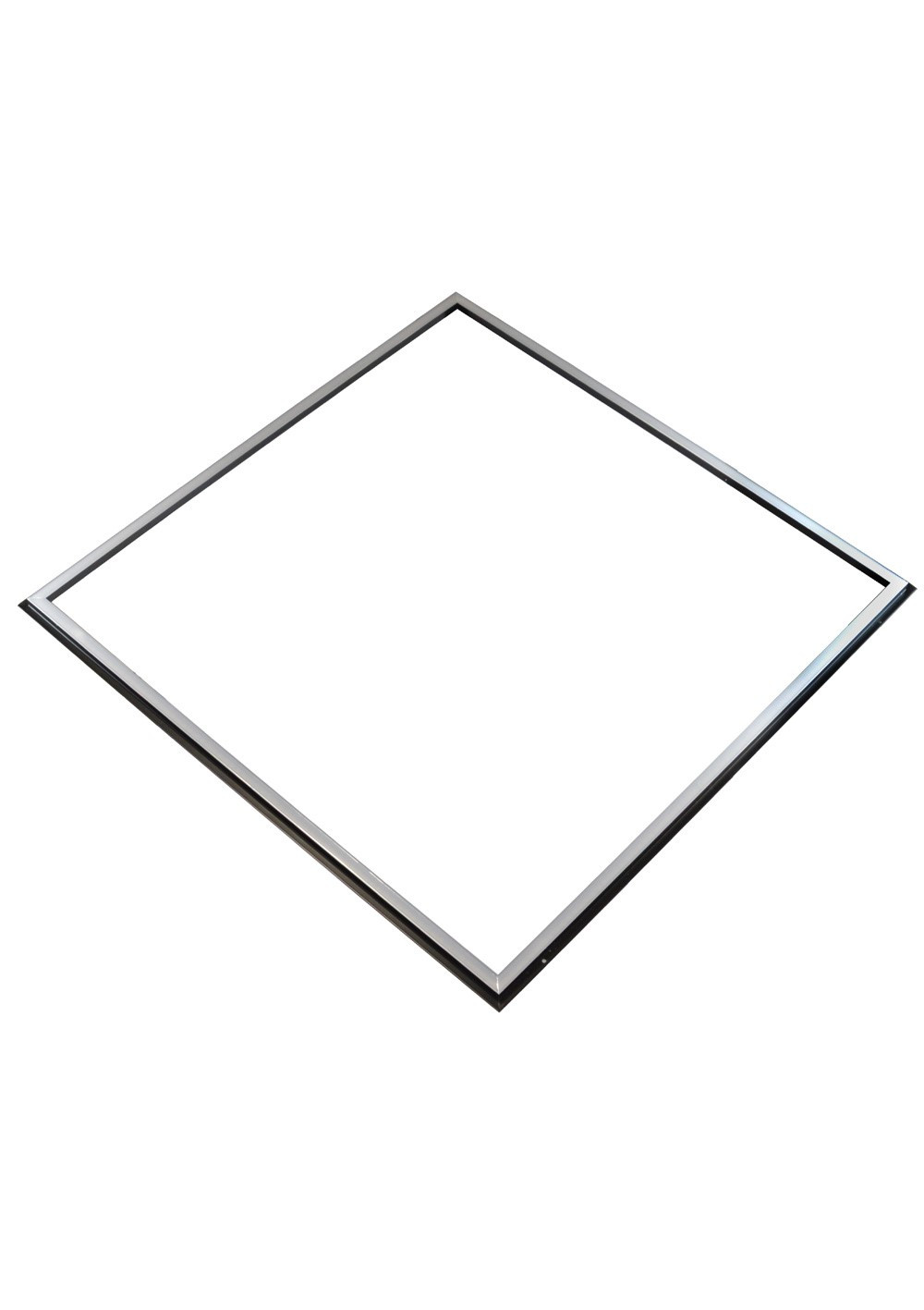

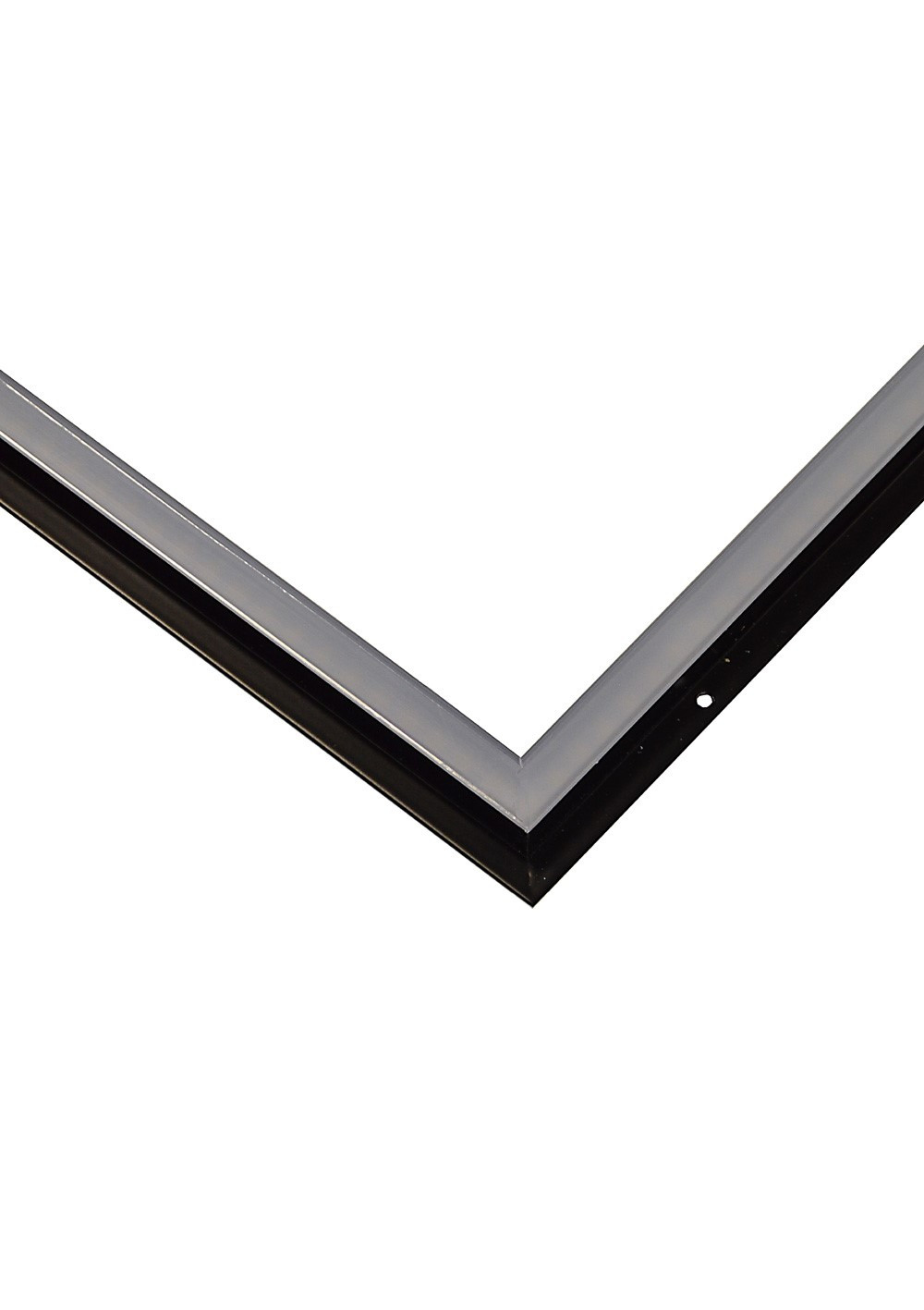

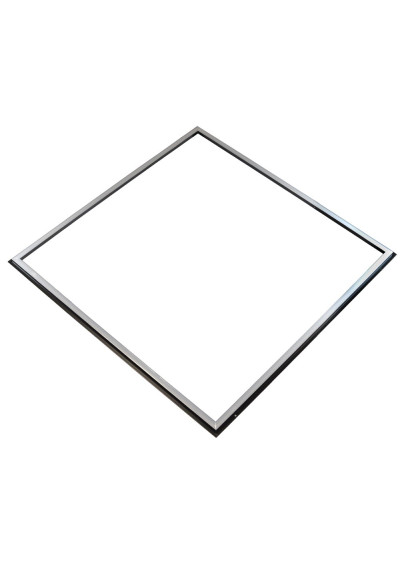

LED panel Zorda 591x591 40W 4000K RAL9011
Zorda LED panel, 40 W, 230 V AC, with a luminous flux of 4000 lm and a colour temperature of 4000 K. Recessed mounting with a black housing. A 103° beam angle, CRI 80 and IP20 define its light output and protection rating.
LED panel Zorda 591x591 40W 4000K RAL9011
105.68 PLN
Shipment in 1-2 business days
001x013023
Zorda LED panel, 40 W, 230 V AC, with a luminous flux of 4000 lm and a colour temperature of 4000 K. Recessed mounting with a black housing. A 103° beam angle, CRI 80 and IP20 define its light output and protection rating.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
The Zorda LED panel is a 40 W luminaire for indoor lighting. It operates from 230 V AC at 50 Hz and provides 4000 lm at a colour temperature of 4000 K. This variant has a black housing.
Key properties
The 103° beam angle describes the light distribution, while CRI 80 specifies colour rendering. The housing is made of aluminium; its construction data are listed below. The light source is non-replaceable, so the luminaire should be selected as a complete LED module.
Technical specifications
| Rated power | 40 W |
|---|---|
| Supply voltage | 230 V AC |
| Supply frequency | 50 Hz |
| Luminous efficacy | 100 lm/W |
| Colour temperature | 4000 K |
| Colour rendering index CRI (Ra) | 80 |
| Beam angle | 103° |
| IP protection rating | IP20 |
| Power factor PF | .9 |
| Product dimensions | 591 × 591 × 11 mm |
| Single product gross weight | .76 kg |
| Housing colour | Black |
| Housing material | Aluminium |
| Series | Zorda |
| Mounting method | Recessed |
| Luminous flux | 4000 lm |
| Replaceable light source | No |
| Declared lifetime | 40000 h |
| Power supply included | Yes |
| LED type | SMD LED |
| Operating temperature | -10–30 °C |
| Operating humidity | <85% |
| Operating pressure | 690–1060 hPa |
Installation / application
The luminaire is intended for recessed mounting. Its IP20 rating suits dry indoor locations where protection against water is not required. The luminaire includes a power supply.
Additional information
The mass listed in the table is the gross mass of a single product.
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
001x013023
Data sheet
- Dimensions (L x W x H) [mm]
- 591 × 591 × 11 mm
- LEDs type
- SMD LED
- Supply Voltage
- 230 V AC
- Light color
- 4000 K
- IP grade
- IP20
- CRI (Ra) min.
- 80
- Case material
- Aluminium
- Length [mm]
- 591
- Nominal luminous flux [lm]
- 4000 lm
- Rated power [W]
- 40 W
- Light angle [°]
- 103°
- Width [mm]
- 591
- Mounting way
- Recessed
- Height/thickness [mm]
- 11
- Life span [h]
- 40000 h
- Working temperature
- -10–30 °C
- Casing color
- Black
- Replaceable light source
- No
- Power factor
- 0.9
- Driver included
- Yes
