LED power supply Tridonic LC 10/500/20 fixC pc SR SNC2
LED power supply Tridonic LC 10W 500mA 20V fixC pc SR SNC2 is a constant current LED driver rated up to 10 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 10/500/20 fixC pc SR SNC2
129.00 PLN
Shipment in 8-10 working days
zas_tridonic_28003349
LED power supply Tridonic LC 10W 500mA 20V fixC pc SR SNC2 is a constant current LED driver rated up to 10 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 10W 500mA 20V fixC pc SR SNC2 is a constant current LED driver in the Driver LC 10W 500mA fixC pc SR SNC2 family. Official article number 28003349 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28003349 |
|---|---|
| Manufacturer family | Driver LC 10W 500mA fixC pc SR SNC2 |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 1 h |
| THD (at 230 V, 50 Hz, min. load) | <30 % |
| THD at 230V, full load | <13 % |
| Starting time | ≤0.5 s |
| Turn off time | ≤0.5 s |
| Hold on time | 0 s |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±3 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Mains surge capability (between L - N) | 1.2 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| (Mains) burst capability | 1 kV |
| Surge voltage at output side (against PE) | 2.5 kV |
| Storage temperature ts | -40–80 °C |
| Guarantee | 5 years |
| Output current | 500 mA |
| Typ. current (at 230 V, 50 Hz, full load) | 65 mA |
| Min./Max. forward voltage | 3 V; 20 V |
| Max. output voltage | 60 V |
| Typ. output power | 10 W |
| Output power range | 1.5–10 W |
| Power Consumption | 13 W |
| Efficiency at min./full load | 50 %; 77 % |
| λ over full operating range (max.) | 0.9C |
| λ over full operating range (min.) | 0.6C |
| Output current tolerance, min./full load | ±10 %; ±10 % |
| Max. repetitive output peak current | 567 mA |
| Ambient temperature ta | 35 °C; -20–45 °C |
| Max. casing temperature tc | 75 °C |
| Lifetime | up to 50000 h |

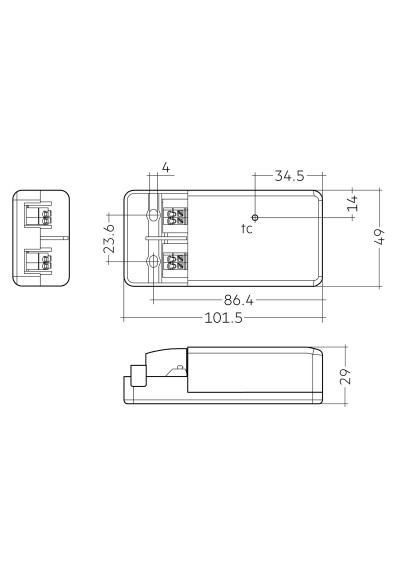

| Length | 101.5 mm |
| Width | 49 mm |
| Height | 29 mm |
| Output mode | CC |
| Maximum output power [W] | 10 |
| Input voltage | 220 – 240 V |
| Warranty [years] | 5 |
| Maximum casing temperature tc | 75 °C |
| Storage temperature | -40–80 °C |
| THD | <13 % |
| Dimensions L×W×H | 101.5 × 49 × 29 mm |
| Lifetime [h] | up to 50000 h |
| Product net weight | 0.135 kg |
| Dimming | Yes |
| SELV | Yes |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Dimmable constant current LED driver (SELV) |
| Manufacturer note: Product description | Independent driver with strain-relief housing |
| Manufacturer note: Product description | Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) |
| Manufacturer note: Product description | Dimmable via leading edge and trailing edge phase dimmers |
| Manufacturer note: Product description | Trailing edge is a benefit in terms of noise compared to leading edge |
| Manufacturer note: Product description | Dimming range 5 to 100 % (depending on dimmer) |
| Manufacturer note: Product description | For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711 |
| Manufacturer note: Product description | Max. output power 10 W |
| Manufacturer note: Product description | Output current 500 mA |
| Manufacturer note: Product description | Nominal lifetime up to 50,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Housing properties | Push-in terminals |
| Manufacturer note: Housing properties | 2 separate strain relief parts for input and output cables with highly robust clamps |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
| Manufacturer note: Functions | No output current overshoot at mains on/off |
Operating points
| Point | Output current | Typ. current (at 230 V, 50 Hz, full load) | Min./Max. forward voltage | Max. output voltage | Typ. output power | Output power range | Power Consumption | Efficiency at min./full load | λ over full operating range (max.) | λ over full operating range (min.) | Output current tolerance, min./full load | Max. repetitive output peak current | Ambient temperature ta | Max. casing temperature tc | Lifetime | Length | Width | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 500 mA | 65 mA | 3 V; 20 V | 60 V | 10 W | 1.5–10 W | 13 W | 50 %; 77 % | 0.9C | 0.6C | ±10 %; ±10 % | 567 mA | 35 °C; -20–45 °C | 75 °C | up to 50000 h | 101.5 mm | 49 mm | 29 mm |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28003349
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 10
- Output Current of CC power supply [mA]
- 500
- CC operating window
- 3-20
- Min. output voltage of led driver (CC)
- 3
- Max. output voltage of led driver (CC)
- 20
- Dimensions (L x W x H) [mm]
- 101.5 × 49 × 29 mm
- Length [mm]
- 101.5
- Width [mm]
- 49
- Height/thickness [mm]
- 29
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 500
- Max. current of CC driver [mA]
- 500
