Mean Well PWM-90-36 90 W PWM-output CV LED driver 36 V DC
Mean Well PWM-90-36 90 W PWM-output CV LED driver 36 V DC – dimensions

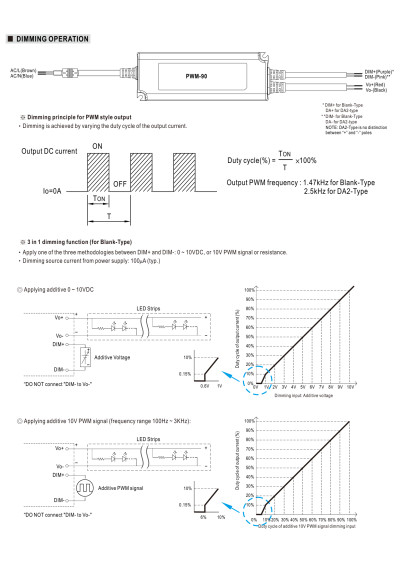

Mean Well PWM-90-36 90 W PWM-output CV LED driver 36 V DC – dimming diagram

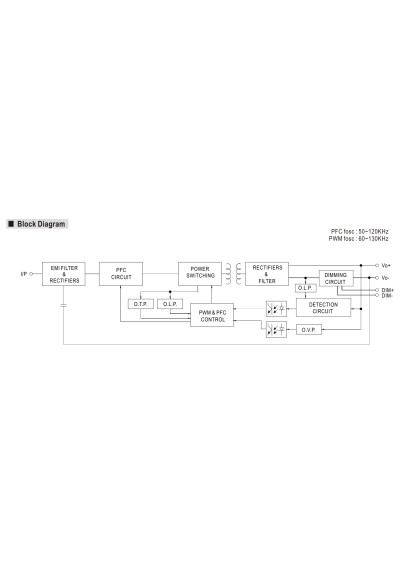

Mean Well PWM-90-36 90 W PWM-output CV LED driver 36 V DC – block diagram
Mean Well PWM-90-36 90 W PWM-output CV LED driver 36 V DC – efficiency versus load characteristic

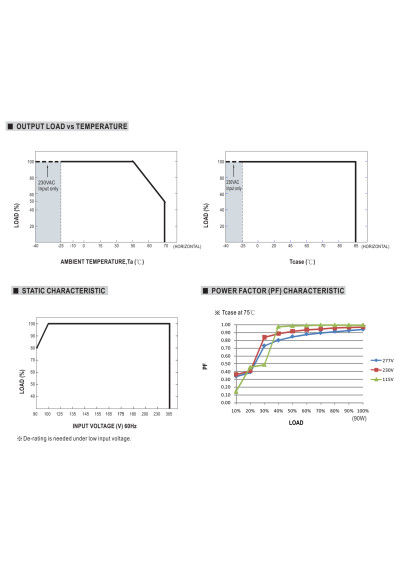

Mean Well PWM-90-36 90 W PWM-output CV LED driver 36 V DC – load versus temperature characteristic

Mean Well PWM-90-36 90W 36V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
178.85 PLN
Shipment in 8-10 working days
Constant Voltage (CV)
tm_PWM-90-36

Mean Well PWM-90-36 is a 90 W, 36 V DC constant-voltage LED driver with PWM-modulated output.

Volume discounts

Quantity Discounted price
5+ 170.72 PLN
10+ 162.59 PLN
20+ 154.46 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PWM-90-36 – full product specification

Mean Well PWM-90-36 is a PWM-90-series power supply rated at 90 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 36 V DC while brightness is represented by output PWM modulation.

Full technical specifications

Output modulationPWM
Rated current2500 mA
Operating modeConstant Voltage (CV)
Output voltage36 V
Rated power90 W

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PWM-90-36

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
60,1-100
Output Voltage of CV power supply [V]
36

Specific References

EAN13
4711287460017
MPN
PWM-90-36
