Mean Well PWM-60-12KN 60W 12V LED Power Supply
Mean Well PWM-60-12KN is a 60 W, 12 V DC constant-voltage LED driver with PWM-modulated output.
Mean Well PWM-60-12KN 60W 12V LED Power Supply
Minimum order quantity: 1. Order in multiples of 1.
292.67 PLN
Shipment in 8-10 working days
tm_PWM-60-12KN
Mean Well PWM-60-12KN is a 60 W, 12 V DC constant-voltage LED driver with PWM-modulated output.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
PWM-60-12KN – full product specification
Mean Well PWM-60-12KN is a PWM-60-KN-series power supply rated at 60 W. The parameters below come from the exact official manufacturer datasheet.
CV PWM output

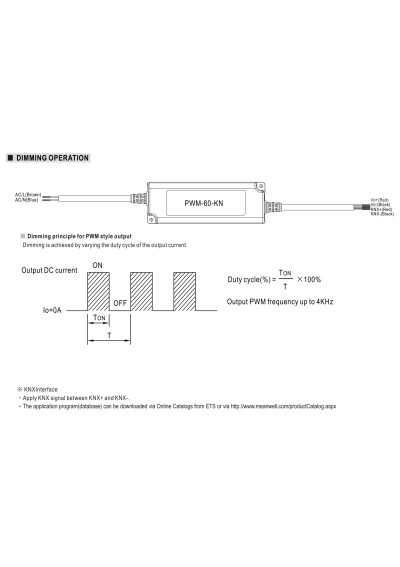

The model supplies 12 V DC while brightness is represented by output PWM modulation.
Full technical specifications
| DALI control | Yes |
|---|---|
| KNX control | Yes |
| Dimensions | 150 × 53 × 35 mm |
| Document revision | PWM-60-KN-SPEC 2026-02-04 |

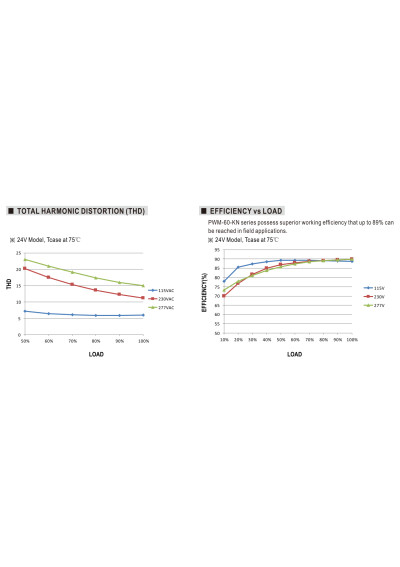

| Typical efficiency | 86 % |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 50 A |
| Output modulation | PWM |
| Rated current | 5000 mA |
| Operating mode | Constant Voltage (CV) |
| Output voltage | 12 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 60 W |
| Manufacturer warranty | 5 years |
| Weight | 0.45 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_PWM-60-12KN
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 30,1-60
- Output Voltage of CV power supply [V]
- 12
- Length [mm]
- 150
- Width [mm]
- 53
- Height/thickness [mm]
- 35
- Warranty [years]
- 5
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287463308
- MPN
- PWM-60-12KN
