Mean Well LPV-100-36 100.8 W 36 V DC CV LED power supply Mean Well LPV-100-36 100.8 W 36 V DC CV LED power supply – dimensions Mean Well LPV-100-36 100.8 W 36 V DC CV LED power supply – block diagram
Mean Well LPV-100-36 100.8 W 36 V DC CV LED power supply
Mean Well LPV-100-36 100.8 W 36 V DC CV LED power supply – dimensions

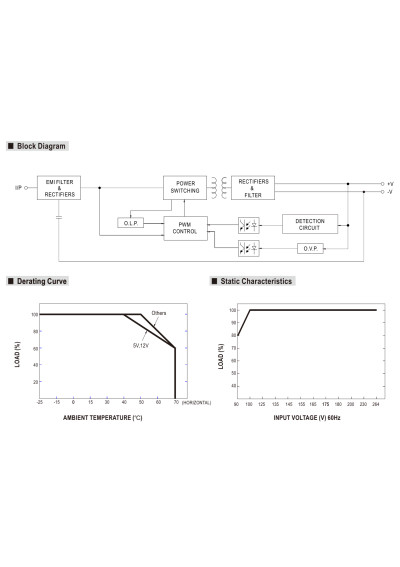

Mean Well LPV-100-36 100.8 W 36 V DC CV LED power supply – block diagram

Mean Well LPV-100-36 100.8W 36V IP67 LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
105.68 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_LPV-100-36

Mean Well LPV-100-36 is a 100.8 W, 36 V DC constant-voltage LED power supply rated at 2800 mA.

Volume discounts

Quantity Discounted price
10+ 97.55 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

LPV-100-36 – full product specification

Mean Well LPV-100-36 is a LPV-100-series power supply rated at 100.8 W. The parameters below come from the exact official manufacturer datasheet.

Constant-voltage output

The model supplies loads at 36 V DC with a rated output current of 2800 mA.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions190 × 52 × 37 mm
Document revisionLPV-100-SPEC 2025-12-12
Typical efficiency88 %
hold_up_time230 vac ms: 50; 115 vac ms: 14
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current75 A
Insulation resistance100 MΩ
IP ratingIP67
Leakage current0.25 mA
Operating temperature-25–70 °C
Rated current2800 mA
Operating modeConstant Voltage (CV)
Output voltage36 V
Over-voltage protection range41.4–48.6 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power100.8 W
Manufacturer warranty2 years
Weight0.61 kg
Withstand voltage3 kVAC

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the LPV-100 series is not intended for LED lighting luminaire applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_LPV-100-36

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
60,1-100
Output Voltage of CV power supply [V]
36
IP grade
67
Length [mm]
190
Width [mm]
52
Height/thickness [mm]
37
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287455792
MPN
LPV-100-36
