LED SMPS Backup Power Supply with Control Box 12V/10A

LED SMPS backup power supply for reliable 12V systems

Keep your security and low-voltage installations running without interruptions. This LED SMPS backup power supply delivers stable 12V DC power up to 10A and supports a 12V battery for backup operation. The unit comes in a robust, lockable metal control box, designed for clean and safe installations. It is a premium choice for alarm systems, CCTV, access control, and other 12V devices.

LED SMPS backup power supply – key benefits

• 12V / 10A output for demanding 12V loads.
• Battery backup support for continued operation during power outages.
• Lockable enclosure helps protect wiring and settings.
• Alarm outputs for status monitoring and system integration.
• High efficiency over 85% for lower heat and stable work.

How the backup function works (simple explanation)

When mains power is available, the SMPS converts AC to regulated DC for your devices. If the mains fails, the unit can switch to battery power. Connect a compatible 12V battery and confirm operation using the dedicated battery setup function. This helps your system stay active for hours, depending on load and battery capacity.

12V battery backup power supply for CCTV and alarm systems

This 12V battery backup power supply for CCTV can power one device up to 10A, or multiple devices when you distribute power correctly. Use a proper distribution strip to connect several cameras or modules, keeping the total current within 10A. The enclosure can be wall-mounted for quick installation and easy service access.

Technical specification

• Outputs: 1
• Input voltage: AC 190–265V, 50–60Hz
• Output voltage: 11–14V DC
• Max output current: 10A
• Battery capacity support: 12V 7Ah
• Efficiency: >85%
• Dimensions: 203 × 163 × 74 mm
• Weight: 1.2 kg

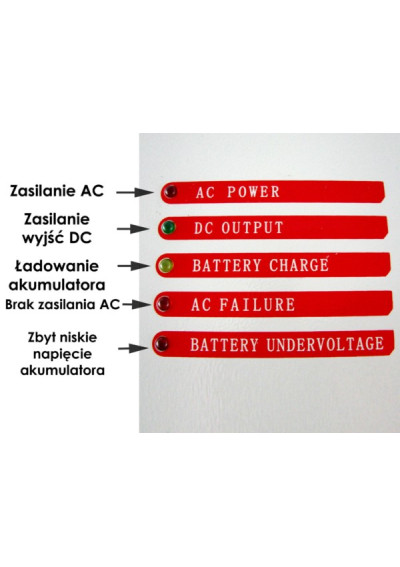

Alarm outputs and monitoring

Alarm outputs let you signal key operating states to external devices. You can connect a control panel, PC input, siren, warning lamp, or SMS notification module. This makes it easier to supervise power status and react quickly to faults.

FAQ

What can I power with this unit?

You can power 12V devices within the 10A limit, including CCTV cameras, alarm modules, and access control components.

Is it safe to install?

Yes, when installed correctly. Use a 3-core cable with grounding and always disconnect mains power before wiring.

How do I enable battery operation?

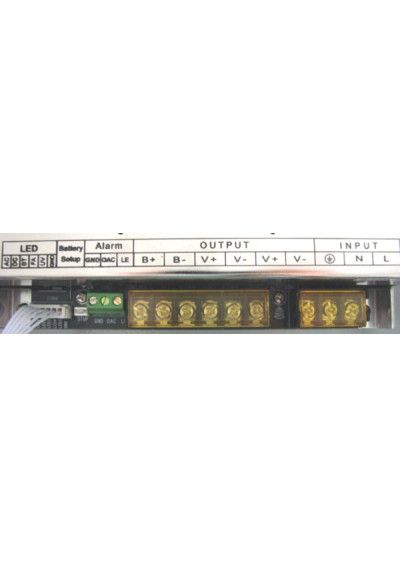

Connect the battery to B+ and B- terminals, then press the “setup Battery” button. The DC output indicator confirms operation.
