Mean Well XLG-20-H-B 21W 700mA 18–30V Constant Current (CC) LED driver
Mean Well XLG-20-H-B is a 21 W constant-current LED driver rated at 700 mA, with a 18 V–30 V output-voltage region.
Mean Well XLG-20-H-B 21W 700mA 18–30V Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
75.60 PLN
Shipment in 1-2 business days
tm_XLG-20-H-B
Mean Well XLG-20-H-B is a 21 W constant-current LED driver rated at 700 mA, with a 18 V–30 V output-voltage region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
XLG-20-H-B – full product specification
Mean Well XLG-20-H-B is a XLG-20-series power supply rated at 21 W. The parameters below come from the exact official manufacturer datasheet.
Constant-current output
The model regulates 700 mA across a 18 V–30 V DC voltage region.
Full technical specifications

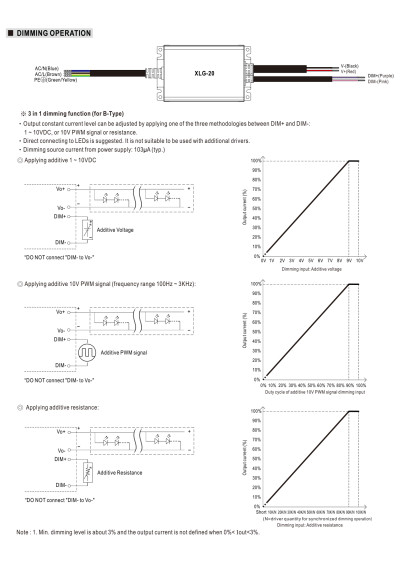

| 3-in-1 dimming | Yes |
|---|---|
| current_ripple_pct | 20 % |
| Dimensions | 95 × 63 × 30 mm |
| Document revision | XLG-20-SPEC 2026-02-04 |
| Typical efficiency | 88 % |
| Input frequency | 47–63 Hz |
| Inrush current | 5 A |
| IP rating | IP67 |
| Rated current | 700 mA |
| Operating mode | Constant Current (CC) |
| CC-region maximum voltage | 30 V |
| CC-region minimum voltage | 18 V |
| Short-circuit protection | Yes |
| Rated power | 21 W |
| Manufacturer warranty | 5 years |
| Weight | 0.34 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_XLG-20-H-B
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 20,1-30
- Output Current of CC power supply [mA]
- 700
- CC operating window
- 18-30
- Min. output voltage of led driver (CC)
- 18
- Max. output voltage of led driver (CC)
- 30
- IP grade
- 67
- Length [mm]
- 95
- Width [mm]
- 63
- Height/thickness [mm]
- 30
- Warranty [years]
- 5
Specific References
- EAN13
- 4711287482217
- MPN
- XLG-20-H-B
